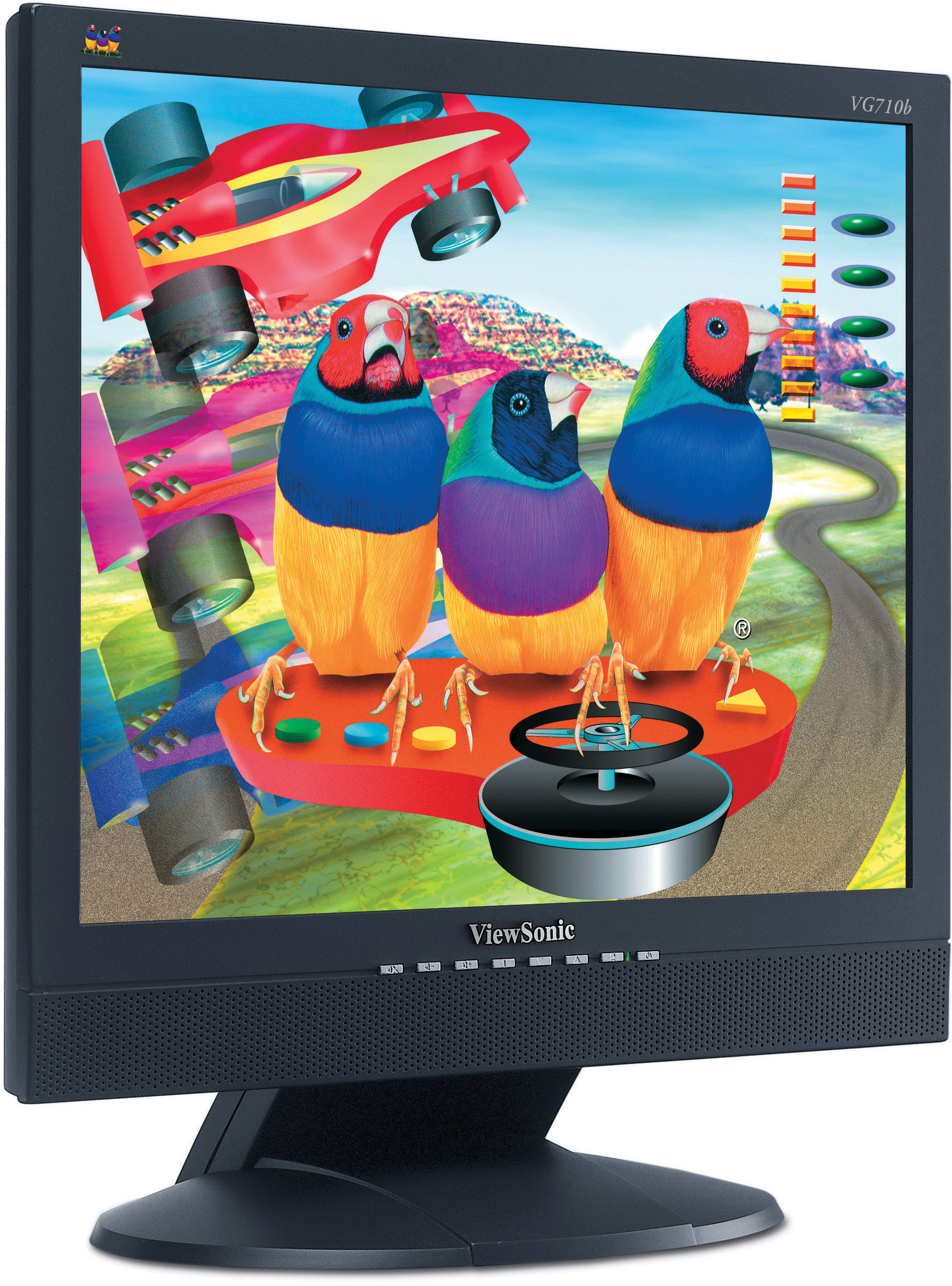

VG710b
Termék leírás
Látogasson el hozzánk
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Típus: 43mm / 17.0" colour TFT active matrix SXGA LCD
    Kontrasztarány: 450:1 (typ)
    Betekintési szögek: 140° horizontal, 120° vertical
    Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
    Optimum Resolution: 1280x1024
    Válaszidő: 16ms (typ.)
    Panel Surface: Anti-glare
    Fényerő: 250 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280x1024
    Mac®: Power Mac™ G3/G4 up to 1280x1024
  • DIMENSIONS
    Physical With Stand: 378mm x 405mm x 177mm (with stand)
    Physical Without Stand: 378mm x 405mm x 50mm (without stand)
  • AUDIO
    Hangszóró: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Teljesítmény: 3-pin AC plug
    Audió: 3.5mm audio line-in
    Signal: 15-pin mini D-sub, DVI-D
  • POWER
    Feszültség: AC 100–240V external adapter
    Fogyasztás: < 36W (typ)
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness input select, audio adjust
    (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
    5400K, 5000K, user colour), information (mode, model
    number, serial number), manual image adjust (H. size, H. position,
    V. position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout), memory recall
  • OPERATING CONDITIONS
    Hőmérséklet: 0–40°C
    Páratartalom: 10–90% (non-condensing)
  • WEIGHT
    Net: 5.3kg
  • VIDEO INPUT
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
  • POWER MANAGEMENT
    Meets TCO’03 (VG710s), TCO’99 (VG710b) and ENERGY standards.
