Főbb Tulajdonságok

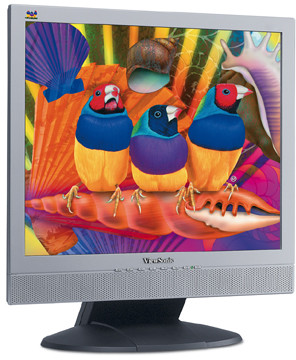

VA912
Termék leírás
Látogasson el hozzánk
  • www.viewsonic.com
  • LCD
    Típus: 48cm / 19" colour TN TFT active matrix SXGA LCD
    Kontrasztarány: 600:1 (typ)
    Betekintési szögek: 140° horizontal, 130° vertical (at 10:1)

    150° horizontal, 160° vertical (at 5:1)
    Fényerő: 250cd/m² (typ)
    Display Area: 376mm horizontal x 301mm vertical, 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Válaszidő: 8ms (typ)
    Panel Surface: Anti-glare
    Pixel Pitch: 0,294mm
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (up to 75Hz)
    Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz
  • DIMENSIONS
    W x H x D mm: 424 x 442 x 186 (with stand)
  • INPUT SIGNAL
    Frequency: Fh: 30-82kHz,

    Fv: 50-85Hz
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Sync: H/V separated (TTL)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Audió: Stereo mini audio line in
  • POWER
    Feszültség: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply
    Fogyasztás: < 60W (typ.); ≤ 3 watt in power save mode
  • CONTROLS
    OSD: Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
    Physical: Physical Power on/off, menu, up, down, select
  • OPERATING CONDITIONS
    Hőmérséklet: 0°C to 40°C
    Páratartalom: 10% to 90% (no condensing)
  • WEIGHT
    Net: 5.5kg
  • POWER MANAGEMENT
    Meets TCO'99 and ENERGY standards
  • ERGONOMICS
    Dönthető: Down 5°, Up 20°
