Főbb Tulajdonságok

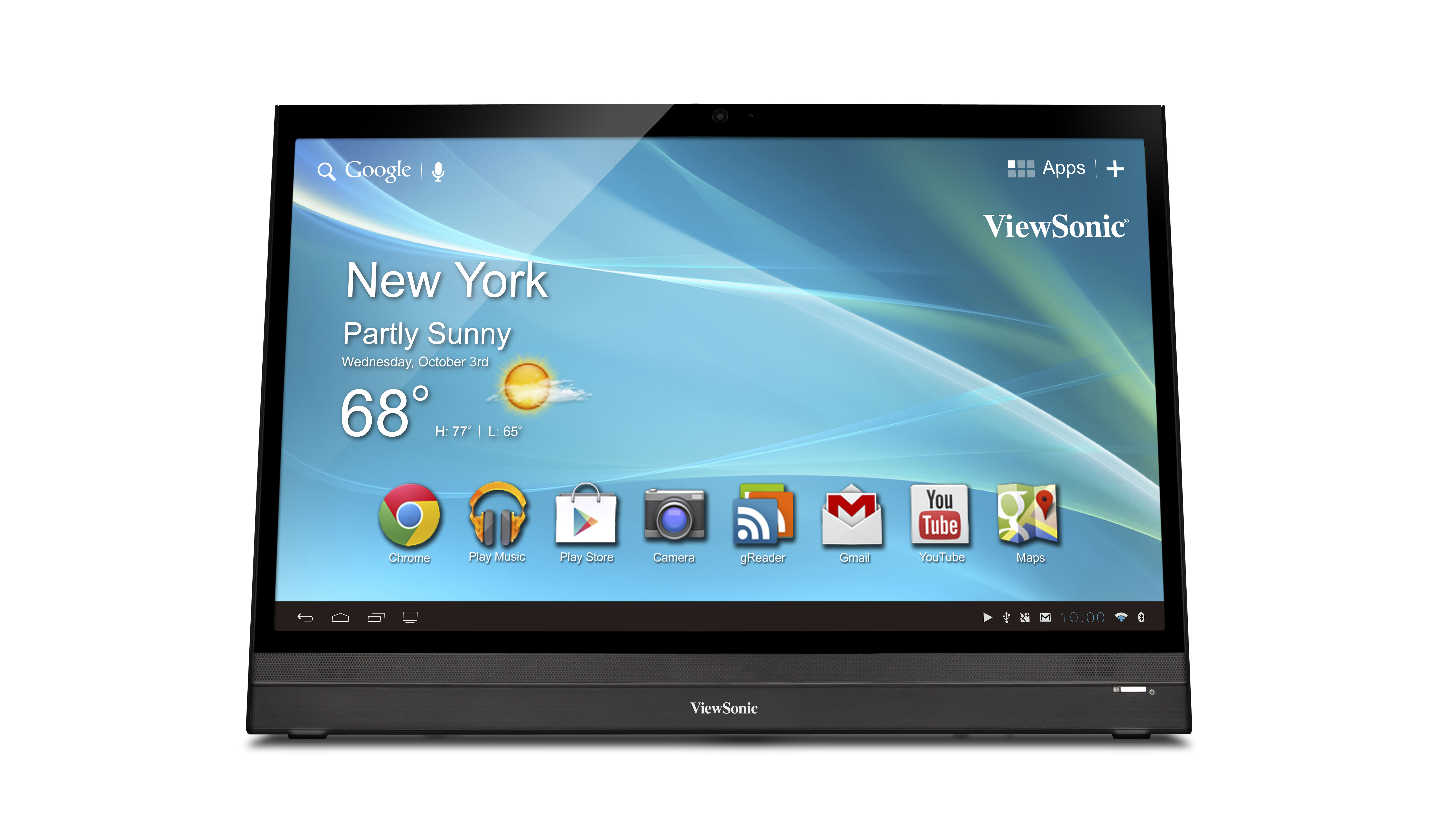

SD-A225
Termék leírás
The ViewSonic® SD-A225 is a 22" (21.5" viewable) multi-touch smart display client with 1920 x 1080 Full HD resolution, and a TI Dual Core OMAP processor. With Citrix® XenMobile™ pre-installed, the SD-A225 is a completely locked-down, secured, and fully manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include micro HDMI®, three USB ports (2 Type A and 1 micro USB OTG), micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth® network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS® 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.
Látogasson el hozzánk
  • www.viewsonic.com
  • LCD
    Típus: 22" (21.5" viewable) Wide Colour TFT Transmissive LED
    Kontrasztarány: 3000:1 (typ.)
    Betekintési szögek: 170º horizontal, 160º vertical
    Display Area: 19.0" horizontal x 10.7" vertical; 21.5" diagonal
    Optimum Resolution: 1920 x 1080p
    Válaszidő: 5ms (typ.)
    Fényerő: 250 cd/m2 (typ.)
    Backlight: White-light LED
    Háttérvilágítás élettartama: 30,000 hours (min.)
    Touch Controller: Dual touch with pinch and zoom
    Touch Panel: Optical touch type, with glass 8H
  • DIMENSIONS
    Fizikai méretek (SzxHxM): 20.2 x 13.9 x 1.0 in. / 512.8 x 353 x 56.6 mm
    Packaging: 23.6 x 16.9 x 4.9 in. / 598 x 428 x 123 mm
  • CSOMAG TARTALMA
    1.SD-A225 smart display

    2.power cord and adapter

    3.micro HDMI to HDMI cable

    4.micro USB to USB cable

    5.Quick Start Guide

    *Actual content may differ from market to market
  • CONNECTOR
    HDMI (input): Micro HDMI
    USB: Type A (x2), micro USB (x1)
    Audió: Headphone jack
    Card Reader: Micro SD card
    LAN: RJ45, Wi-Fi 802.11 b/g/n, Bluetooth V2.1
    Teljesítmény: DC-In jack (ID 1.7mm, OD 4.0mm)
    Hangszóró: 1-watt (x2)
  • POWER
    Feszültség: AC-DC power (Input: 100V~240V / Output: DC 19V)
    Fogyasztás: 36W (typ.)
  • VESA® MOUNT
    100 x 100 mm
  • CAMERA
    1.3MP
  • ERGONOMICS
    Dönthető: 15º – 70º
  • WEIGHT
    Bruttó: 12.8 lb. / 5.8 kg
    Net: 10.6 lb. / 4.8 kg
  • OPERATING CONDITIONS
    Páratartalom: 20–90% (non-condensing)
    Hőmérséklet: 32–95º F (0–35º C)
  • SYSTEM
    CPU Processor: TI OMAP4470 Dual Core 1.5GHz
    Operációs rendszer: Android™ 4.1 with Citrix XenMobile
    System Memory: 1GB (DDR2)
    Storage Memory: 8GB (eMMC4.4)
    Internal MIC: Echo cancelling
