Főbb Tulajdonságok
  • 0.23 ultra-short throw ratio
  • A total solution for interactive projection
  • 10-point touch collaboration and dual pen touch simultaneously.
  • myViewBoard™ digital whiteboard software
  • PortAll® compartment for wireless dongle

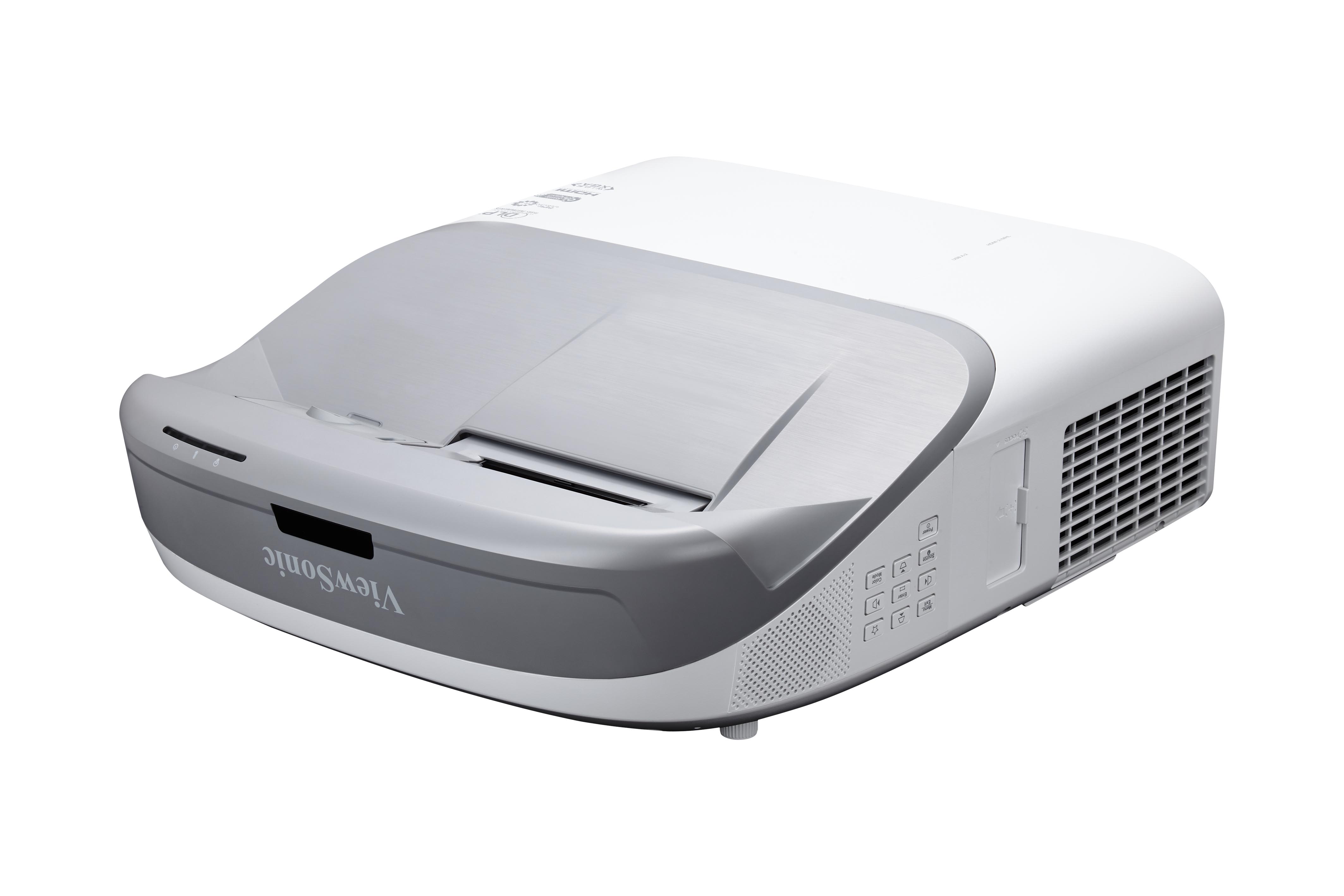

PS750W
Termék leírás
The ViewSonic PS750W projector is a total solution for school projection, complete with interactive modules, wall mount kit, and digital white board software. With the ability to project 100” images from a distance of only 0.16m* from the projection surface, the projector is flexible enough to fit any classroom installation by keeping the projection beam out of sight and eliminating image shadows for distraction-free classroom application. A customisable wall mount with quick installation and flexible adjustment features a 3-axis alignment system. The interactive module supports and recognises finger touch, allowing users to work on projected images collaboratively. vBoard for Windows digital whiteboard software offers access to rich interactive teaching tools and allows teachers to take entire lessons from classroom to classroom with ease via a MyViewBoard.com account. Vertical projection is perfect for starting group discussions, making subjects more immersive, and allowing multiple students to collaboratively draw and write on the same flattop screen. Utilising PS750W’s cleverly concealed PortAll™ compartment guarantees more flexibility when using wireless dongles and PC sticks, and allows teachers to present their own customised lesson content. PS750W is the ultimate complete-package interactive projection solution for school projection and the perfect fit for making class more engaging than ever.
*Actual distances may vary depending on environmental conditions
  1. PortAll
  2. Projection Lens
  3. Camera
  4. LED indicator
  5. IR remote sensor
  6. Air filter
  7. Focus
  8. Keypad
  9. USB
  10. Mini USB vTouch
  11. HDMI
  12. S video / Composite
  13. Audio in/out
  14. Dual VGA
  15. RS232
  16. VGA out
  17. Laser module 5V/1.5A
  18. LAN
  19. Lamp door
  20. Kensington® lock slot
Látogasson el hozzánk
  • www.viewsonic.com
  • SPECIFICATION
    Natív felbontás: 1280x800
    DC type: DC3
    Fényerő: 3500lm
    Contrast Ratio with SuperEco mode: 10000:1
    Megjelenítés színe: 1.07 Billion Colours
    Fényforrás: Lamp
    Light source life (Nor/SuperEco): 3000/7500
    Lámpa watt: 240W
    Objektív: F=2.4, f=3.35 mm
    Vetítési eltolás: 130%+/-5%
    Vetítési arány: 0.23
    Image size: 87" - 112"
    Vetítési távolság: 0.09m - 0.25m (100" @ 0.16m)
    Keystone: H:+/-30° , V:+/-30°
    Optikai zoom: Fixed
    Audible Noise (Normal/Eco): 35dB / 29dB
    Támogatott felbontás: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV kompatibilitás: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video kompatibilitás: NTSC, PAL, SECAM
    Vízszintes frekvencia: 15K~102KHz
    Függőleges letapogatási sebesség: 23~120Hz
    Interaktív kamera: Yes
  • BEMENET
    Computer in (D-SUB 15 pin): 2
    Kompozit: 1
    S-video: 1
    Audio-bemenet (3,5 mm): 1
    Audio-bemenet (RCA R/L): 1
    HDMI: 1 (Back)
    HDMI/MHL: 1 (PortALL)
  • KIMENET
    Monitor out (D-SUB 15 pin): 1
    Audió kimenet (3,5 mm): 1
    Hangszóró: 10W Cube x 2
    USB type A (Power): 2 (5V2.4A) 1x Back, 1x PortAll
  • VEZéRLéS
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 2 (1x FW Update/Interactive Camera, 1x Interactive Laser)
  • EGYéB
    Tápegység feszültség: 100-240V+/- 10%, 50/60Hz AC
    Energiafogyasztás: Normal: 410W
    Standby: <0.5W
    Üzemi hőmérséklet: 0~40℃
    Carton: Brown
    Nettó súly: 6.1kg
    Dimensions (WxDxH) w/adjustment foot: 434x388x153mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Hálózati kábel: 1
    VGA cable: 1
    Távirányító: 1 (w/laser pointer)
    QSG & CD: QSG: 1 / CD: 1
    Falra szerelhető: 1
    Interactive Module: Yes (PJ-vTouch-50S)
    Interaktív szoftver: Yes (vBoard for Windows)
