Főbb Tulajdonságok
  • SuperColor™ technology
  • Dual HDMI inputs and USB power supply
  • LAN control support- Crestron, AMX, PJ Link and Extron
  • Auto power on
  • Smart Energy

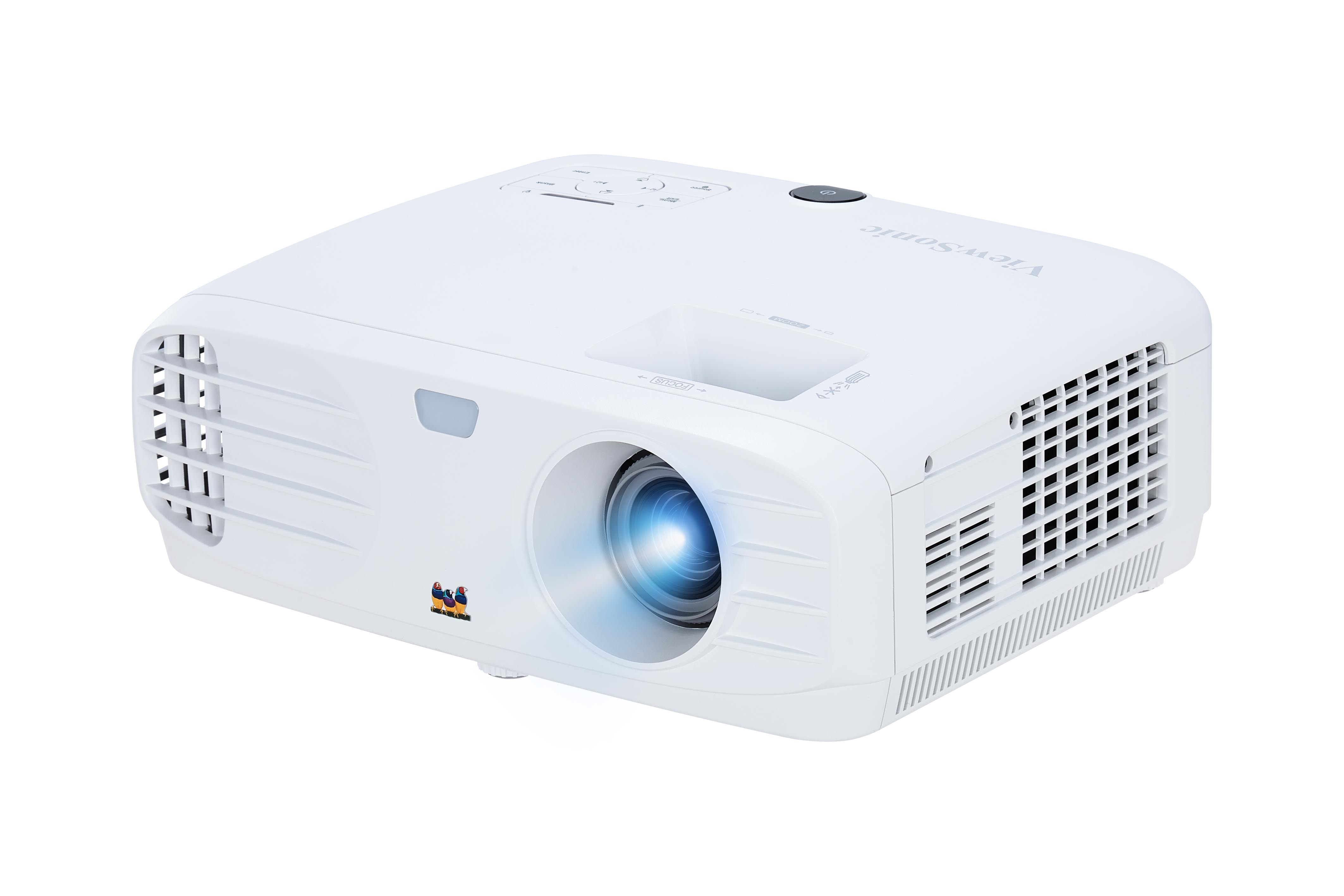

PG705HD
Termék leírás
The ViewSonic PG705HD is a high brightness projector that combines 4000 ANSI lumens and 1080p resolution to project images full of depth and detail, even in brightly lit spaces. With the projector’s energy-saving SuperEco mode, PG705HD is able to reduce power consumption and extend the projector’s lamp life to up to 15,000 hours. A longer lamp life also lowers lamp replacement and maintenance costs, which is particularly useful for corporations and schools with frequent projector usage. Dual HDMI inputs allow user to quickly connect an array of devices, while the integrated USB power supply can be used to power connected devices. In addition, PG705HD’s integrated Crestron, AMX, PJ Link, and Extron compatible RS232 and LAN network solutions allow users to easily control and monitor projectors remotely for maximum efficiency.
  1. Power key & Top IR
  2. Keypad
  3. LED indicator
  4. Front IR
  5. Zoom/Focus
  6. Projection Lens
  7. HDMI x2
  8. USB type A (5V/1.5A)
  9. Mini USB for service
  10. Computer in
  11. Monitor out
  12. LAN
  13. S-Video
  14. Video
  15. Audio in/out
  16. AC in
  17. RS232
  18. Kensington lock
Látogasson el hozzánk
  • www.viewsonic.com
  • SPECIFICATION
    Natív felbontás: 1920x1080
    DC type: DC3
    Fényerő: 4000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 12000:1
    Display Color: 1.07 Billion Colors
    Fényforrás: Lamp
    Light source life (Nor/SuperEco): 4000/15000
    Lámpa watt: 240W
    Objektív: F=1.94-2.06, f=15.57-18.67mm
    Vetítési eltolás: 110%+/-6%
    Vetítési arány: 1.47-1.76
    Image size: 30" - 300"
    Vetítési távolság: 0.97m-11.69m(100" @3.26m)
    Keystone: ±40° (Vertical)
    Optikai zoom: 1.2x
    Audible Noise (Eco): 27dB
    Támogatott felbontás: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV kompatibilitás: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video kompatibilitás: NTSC, PAL, SECAM
    Vízszintes frekvencia: 15K~102KHz
    Függőleges letapogatási sebesség: 23~120Hz
  • BEMENET
    Computer in (D-SUB 15 pin): 1
    Kompozit: 1
    S-video: 1
    Audio-bemenet (3,5 mm): 1
    HDMI (HDCP): 2 (Back)
    (HDMI 1.4/ HDCP 1.4)
  • KIMENET
    Monitor out (D-SUB 15 pin): 1
    Audió kimenet (3,5 mm): 1
    Hangszóró: 10W
    USB type A (Power): 1 (5V/1.5A)
  • VEZéRLéS
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
  • EGYéB
    Tápegység feszültség: 100-240V+/- 10%, 50/60Hz AC
    Energiafogyasztás: Normal: 310W
    Standby: <0.5W
    Üzemi hőmérséklet: 0~40℃
    Carton: Brown
    Nettó súly: 3.68kg
    Dimensions (WxDxH) w/adjustment foot: 332x261x135mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Hálózati kábel: 1
    VGA cable: 1
    Távirányító: 1
    QSG & CD: QSG: 1 / CD: NA
  • OPCIONáLIS TARTOZéK
    Lámpa/Fényforrás: RLC-117
    Warranty Card: Yes (CN Only)
