Főbb Tulajdonságok
  • Laser phosphor technology
  • WUXGA resolution
  • 30,000 hours lifespan
  • Built-in HDBaseT receiver
  • H/V lens shift & 1.65X optical zoom

LS800WU
Termék leírás

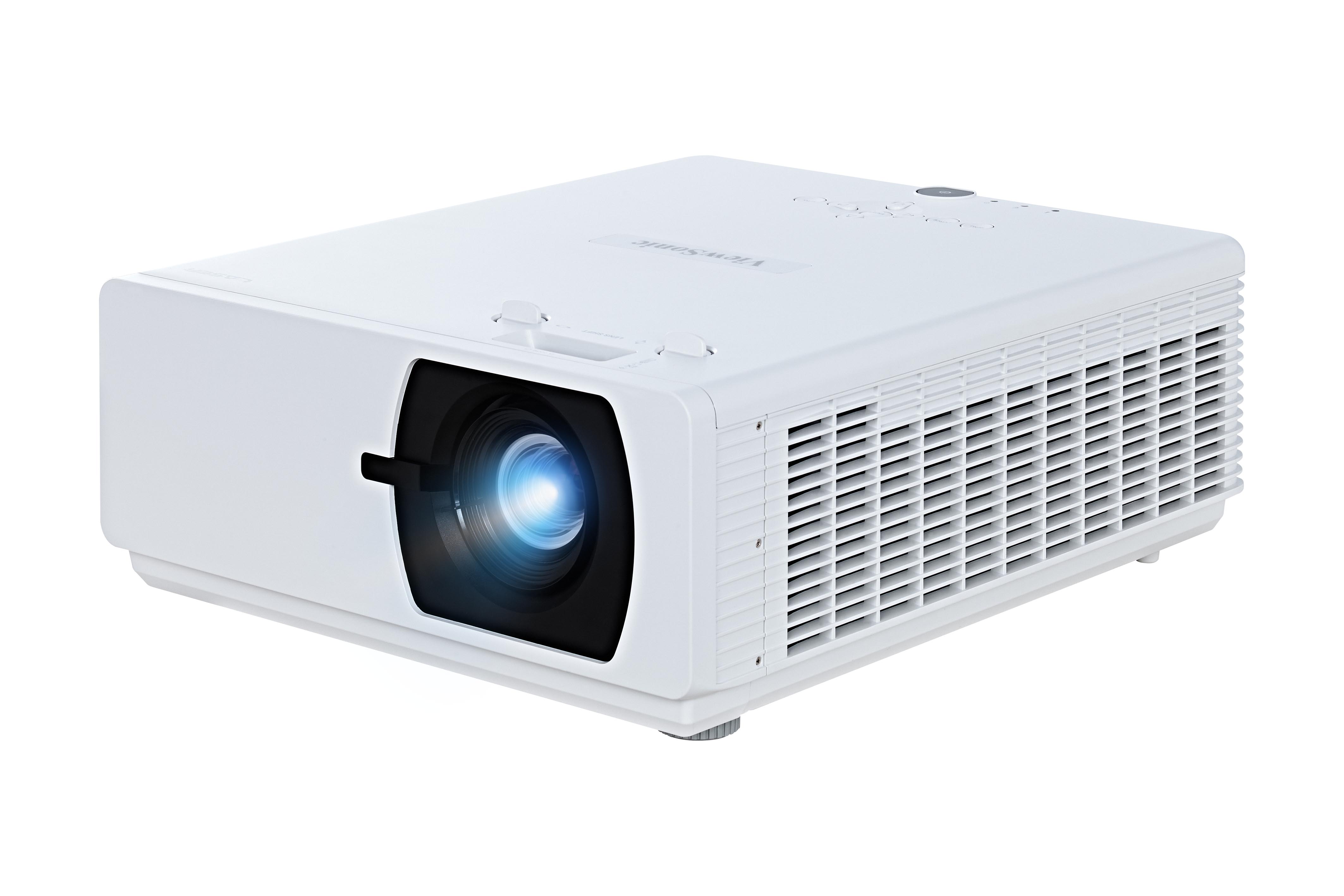

The LS800WU shines bright in virtually any environment with 5,500 ANSI Lumens of high-brightness projection and WUXGA resolution clarity. The projector comes equipped with a laser phosphor technology capable of achieving up to 30,000 hours of maintenance free projection and is capable of 24/7 continuous operation to provide a dramatically durable solution for public use. H/V lens shift and 1.65X optical zoom offers additional flexibility and makes the projectors adaptable to a wide array of installation settings. The projector’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter. Addition features such as portrait mode and 360-degree projection allow users to deliver a fresh visual perspective for creative applications such as staging and advertising.
  1. Horizontal lens shift adjustment
  2. 1.65X optical zoom
  3. Front IR
  4. Power key & Top IR
  5. Keypad
  6. Vertical lens shift adjustment
  7. Focus adjustment
  8. HDMI x3
  9. Computer in
  10. Monitor out
  11. Video
  12. 3D sync (VESA)
  13. Mini USB for service
  14. USB type A (5V/1.5A)
  15. AC in
  16. LAN (FJ45)
  17. HDBaseT (RJ45)
  18. RS232
  19. Audio out
  20. Audio in / Mic in
  21. Audio in (R/L)
  22. Kensington lock
Látogasson el hozzánk
  • www.viewsonic.com
  • SPECIFICATION
    Natív felbontás: 1920x1200
    DC type: DC3
    Fényerő: 5500 ANSI Lumens
    Contrast Ratio with SuperEco mode: 100000:1
    Display Color: 1.07 Billion Colors‎
    Fényforrás: Laser Phosphor system
    Light source life (Nor/SuperEco): 20000/30000
    Lámpa watt: Laser Bank x 4
    Objektív: f2.45-3.13, f=17.23-27.9mm
    Vetítési eltolás: 130%+/-10%
    Vetítési arány: 1.15-1.9
    Image size: 50" - 300"
    Vetítési távolság: 1.24-7.43m
    (100"@2.48m )
    Keystone: HV
    Objektíveltolódás V. Távolság: Yes (-2.4% +9.2%)
    Objektíveltolás H. tartomány: Yes (-2.5% +2.5%)
    Optikai zoom: 1.65x
    Audible Noise (Normal/Eco): 34dB / 32dB
    Támogatott felbontás: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV kompatibilitás: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video kompatibilitás: NTSC, PAL, SECAM
    Vízszintes frekvencia: 15K~102KHz
    Függőleges letapogatási sebesség: 23~120Hz
  • BEMENET
    Computer in (D-SUB 15 pin): 1
    Kompozit: 1
    Audio-bemenet (3,5 mm): 1
    Audio-bemenet (RCA R/L): 1
    Mikrofon bemenet: 1
    HDMI (HDCP): 3
    (HDMI 1.4/ HDCP 1.4)
    3D VESA (szinkronizálás): 1
  • KIMENET
    Monitor out (D-SUB 15 pin): 1
    Audió kimenet (3,5 mm): 1
    Hangszóró: 5W x 2
    USB type A (Power): 1 (5V/1.5A)
  • VEZéRLéS
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    HDBaseT: 1
  • EGYéB
    Tápegység feszültség: 100-240V+/- 10%, 50/60Hz AC
    Energiafogyasztás: Normal: 430W
    Standby: <0.5W
    Üzemi hőmérséklet: 0~40℃
    Carton: Brown
    Nettó súly: 11.0kg
    Dimensions (WxDxH) w/adjustment foot: 360x440x161mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Hálózati kábel: 1
    VGA cable: 1
    Távirányító: 1 (w/Laser pointer)
    QSG: 1
  • OPCIONáLIS TARTOZéK
    Warranty Card: Yes (CN Only)
