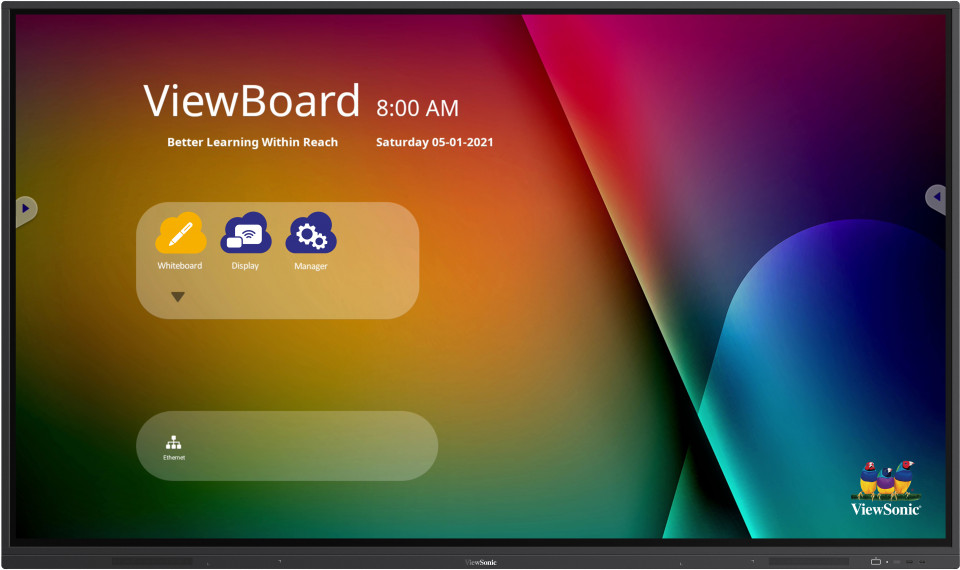

ViewBoard IFP8632-2
Főbb Tulajdonságok
- All-in-one myViewBoard™ suite with Whiteboard, Display, and Manager
- Pen-on-paper writing experience with Ultra Fine Touch Technology
- Front-facing dual speakers to deliver attention-grabbing sound
- Webcam bracket easily attached with camera for better engagement
- Quad Core CPU with upgraded storage powered by Android 9.0 OS
Termék leírás
The ViewBoard® 32-2 series is an advanced model that provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. Clearer colours, more vibrant contrast, and less glare are achieved thanks to 4K UHD display's bonding technology. With 20-point touchscreen interface, users collaborate naturally either with a finger or one of the ViewBoard styluses. The display integrates Ultra Fine Touch Technology which brings a paper-like writing experience with instant response and high accuracy. The dual-tip pen support allows you to simultaneously write or draw with two different colours. Seamless software integration is assured by the built-in access to the myViewBoard suite that brings together all the hardware. With upgraded RAM and storage, ViewBoard 32-2 Series offers instant connectivity and effortless usability for classroom engagement.
- Smart Port USB™ X 2
- Camera
- LAN
- RS232
- HDMI X 2
- USB 2.0
- Touch
- Audio Out
- VESA® Wall Mount800 x 600mm
- VGA
- Audio In
- Wi-fi Module Slot
Látogasson el hozzánk
- www.viewsonic.com
-
MEGJELENíTéS
Panel mérete: 86" Panel típus: TFT LCD Module with DLED Backlight Megjelenített terület (mm): 1895.04(H) x 1065.96(V)mm Képarány: 16:9 Felbontás: UHD 3840x2160(Pixels) Színek: 1.07B colours (8bit+FRC) Fényerő: 400 nits (typ.) Kontrasztarány: 4000:1 Válaszidő: 8ms Betekintési szögek: H=178, V=178typ. Háttérvilágítás élettartama: 50,000 Hours (Min) Felületkezelés: Hardness: 9H Anti-glare coating Orientáció: Landscape Disclaimer: 50,000 hours backlight life at 8 hours of use per day -
PLATFORM
Processzor: ARM quad-core Cortex-A55 RAM: 4GB DDR4 Tárolás: 32 GB -
TOUCH
Típus/ Technika: Ultra Fine Touch Technology Touch Point: 20 points touch, 2 points writing -
INPUT
HDMI: HDMI 2.0 x2 (3840x2160 @60Hz) RGB / VGA: x1 Audió: x1 RS232: x1 OPS: x1 (Optional Intel Standard OPS) WiFi: x1 -
OUTPUT
Audió: x1 -
LAN
RJ45: x1 -
USB
A típus: USB2.0 Front x2; Side x2 B típus: x1 for HDMI/VGA touch -
HANGSZÓRÓK
12W x 2 -
TOP CAMERA PLATE
Yes -
BEáGYAZOTT OPERáCIóS RENDSZER
Android 9 -
MELLéKELT SZOFTVER
Alap annotációs szoftver: myViewBoard Whiteboard Pro Annotation szoftver: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC) Vezeték nélküli prezentáció: myViewBoard Display & ViewBoard Cast -
KüLöNLEGES JELLEMZőK
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Egy kattintás a Cloud Drive-ra: 10/100M for Android & Slot-in PC Light Sensor: Yes -
TELJESíTMéNY
Feszültség: 162V-264V +/- 10% Fogyasztás: On:314W(typ.)
Off: ≤ 0.5W -
ERGONOMICS
Falra szerelhető (VESA® ): 800x600 -
OPERATING CONDITIONS
Hőmérséklet (ºC): 0°C to 40°C Páratartalom: 10% ~ 90% RH non-condensing -
MÉRETEK (SZ X H X M)
Fizikai (inch / mm): 1957×1160×87 mm / 77x45.7x34.2 inch Csomagolás (inch / mm): 2112×280×1283 mm / 83.1x11x50.5 inch -
WEIGHT
Nettó (font / kg): 66.7kg/147lb Bruttó (font / kg): 84.2kg/185.6lb -
CSOMAG TARTALMA
1. Power cord / 2.Remote control with AAA battery / 3.USB touch cable / 4. Touch pen x 2 / 5. Quick Start Guide + Compliance statement / 6. RS232 adaptor / 7. Screw x 4 ( wall mount 4) / 8. HDMI cable/9. Clamp x5 / 10. Camera plate x1 -
KOMPATIBILIS SLOT-IN PC
VPC12-WPO/VPC25/VPC27 series
