Főbb Tulajdonságok
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration

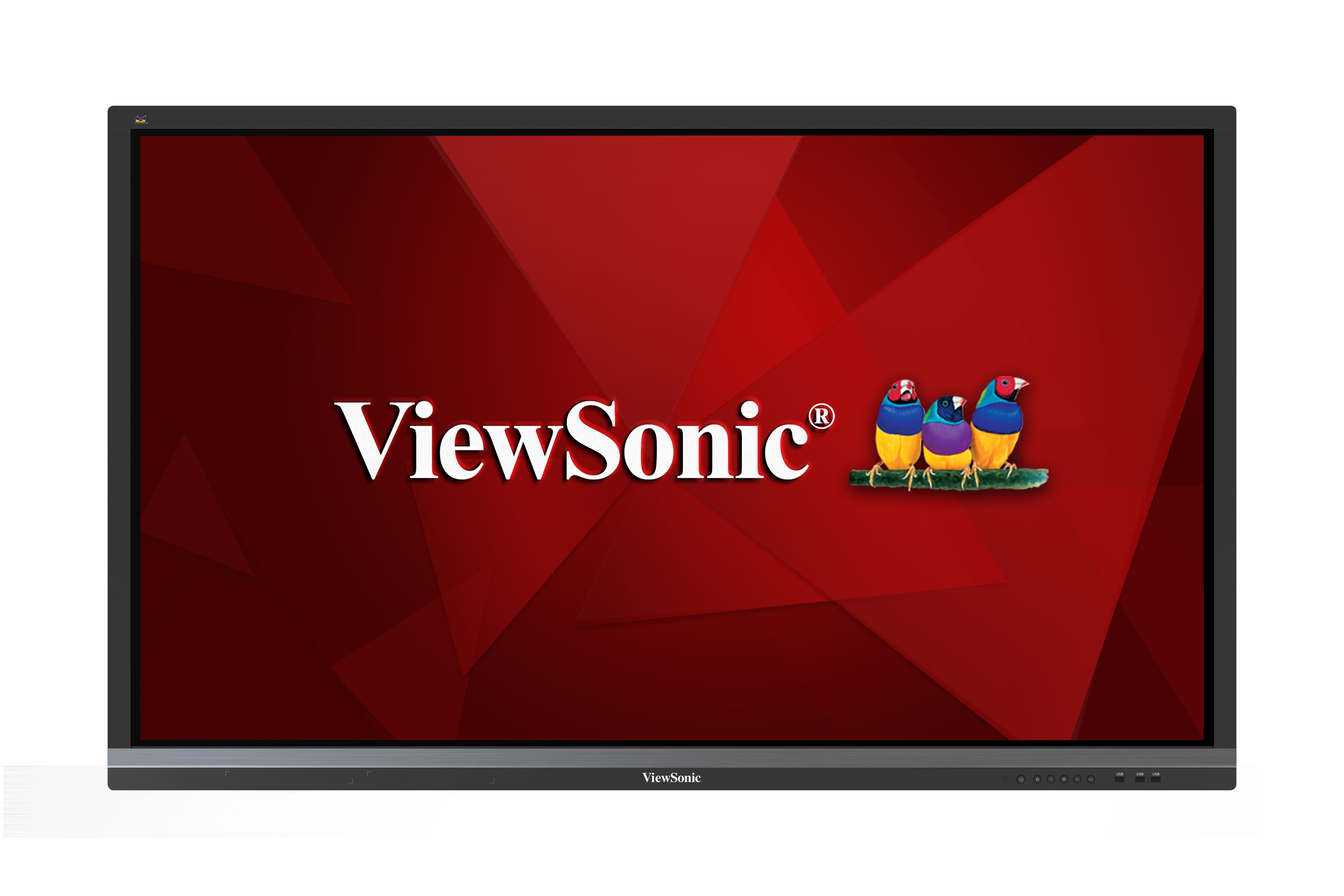

IFP6550
Termék leírás
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP6550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 65” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. IFP6550 display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP6550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Látogasson el hozzánk
  • www.viewsonic.com
  • LCD PANEL
    Panel mérete: 65"
    Típus/ Technika: TFT LCD Module with DLED Backlight
    Megjelenített terület (mm): 1431 (H) x 807 (V) (64.5” diagonal)
    Képarány: 16:09
    Felbontás: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Fényerő: 350 nits (typ.) 300 nits (min.)
    Kontrasztarány: 1200:1 (typ.)
    Válaszidő: 8 ms
    Betekintési szögek: H = 178, V = 178 (typ.)
    Backlight: DLED
    Háttérvilágítás élettartama: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Típus/ Technika: IR Recognition
    Érintés felbontás: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
    Válaszidő: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 80,000hrs
  • INPUT
    HDMI: x 3
    RGB / VGA: x 1
    DisplayPort: x 1
    Audió: x 1
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 2
  • OUTPUT
    HDMI: x 1 (for all sources)
    Audio (Earphone out): x 1
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC)
    3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
    2.0 Type B (For touch): x 2
  • HANGSZÓRÓK
    16W x 2
  • BUILT-IN PC
    Processzor: ARM Cortex A53 Quad Core 1.2G Hz CPU
    Graphic: ARM Mali-450 Quad Core
    Memória: 2GB DDR3
    Tárolás: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
    CVBS: 480i
  • POWER
    Feszültség: 100-240VAC +/- 10% Wide Range
    Fogyasztás: 190W(Typ, without Slot-In PC); 285W(Typ, Including Slot-In PC)
  • ERGONOMICS
    Falra szerelhető (VESA® ): 600 x 400mm; Screw: M8 x 25mm
  • OPERATING CONDITIONS
    Hőmérséklet (ºC): 32°F to 104°F (0°C to 40°C)
    Páratartalom: 10% ~ 90% non-condensing
  • DIMENSIONS
    Physical w/o Stand (mm / inch): 1521 x 922 x 99 mm / 59.9 x 36.3 x 3.9 inch
    Packaging (mm / inch): 1697 x 1071 x 220 mm / 66.81 x 42.17 x 8.66 inch
  • WEIGHT
    Net (kg / lb): 47kg / 103.62lbs
    Gross (kg / lb): 60kg / 132.28lbs
  • WHAT'S IN THE BOX?
    1.VGA cable(5 meters)
    2.Power cable(3 meters) x 4
    3.Remote control
    4.USB cable(5 meters)
    5.Audio cable(5 meters)
    6.AV cable
    7.Touching pen x 3
    8.User manual CD wizard
    9.Quick Start Guide
    10.RS232 adapter
    11.Clamp x 5
    12.Plate
    13.Screw x 3
