Kereskedelmi kijelző

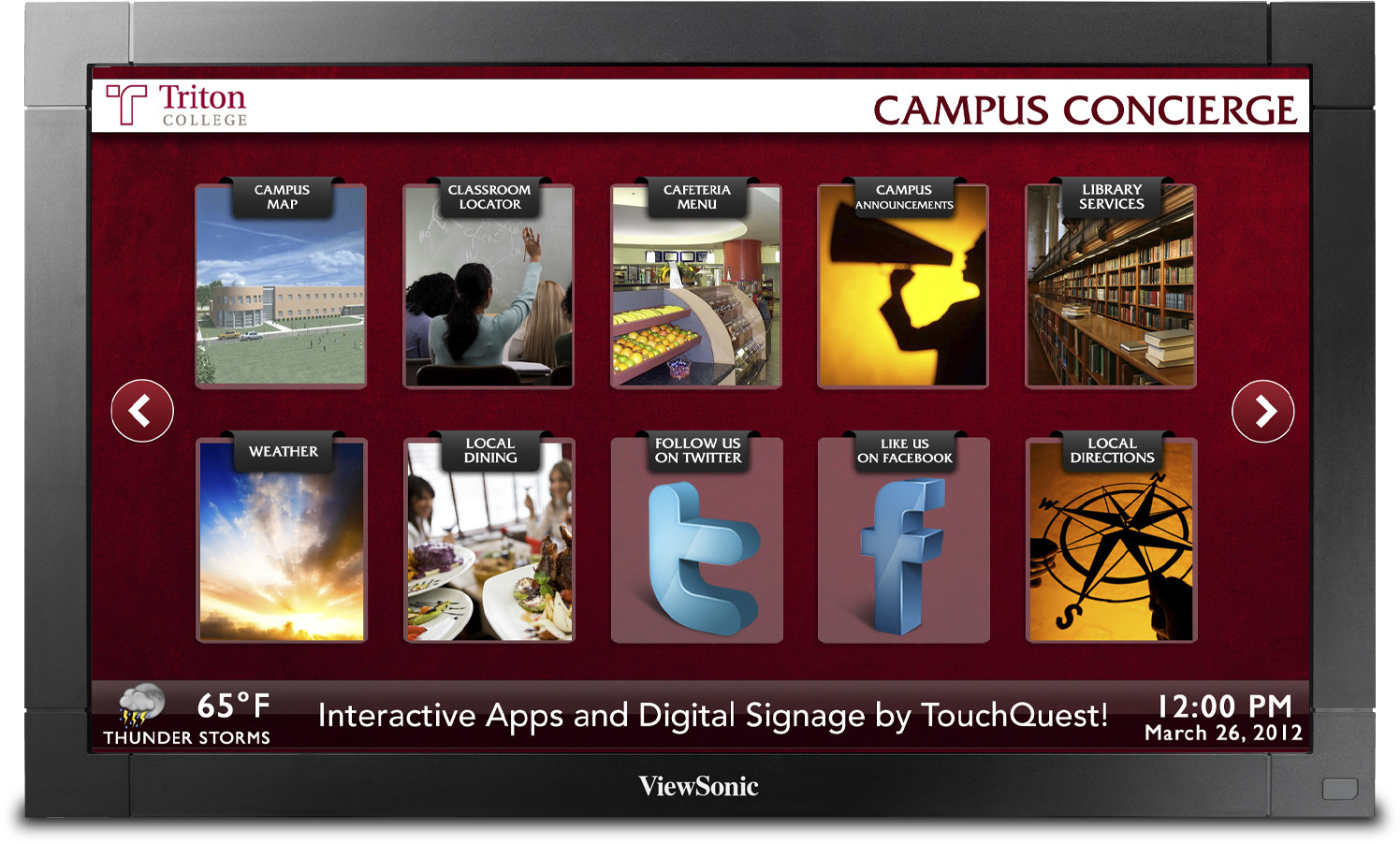

CDP4635-T
Főbb Tulajdonságok
Termék leírás
The ViewSonic® CDP4635-T Full HD Touch Commercial Display features a 1920 x 1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4635-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.
Látogasson el hozzánk
- www.viewsonic.com
-
COLORS
Black -
LCD
Típus: 46" colour TFT active matrix, wide LCD Kontrasztarány: 4000:1 (typ) Betekintési szögek: 178º horizontal, 178º vertical Fényerő: 400 cd/m2 (typ) Display Area: 40" horizontal x 22.5" vertical; 46" diagonal Optimum Resolution: 1920 x 1080, 530mm dot pitch Válaszidő: 8ms Fényforrás: Long life, 50,000 hrs. (typ) Képarány: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical With Stand: 43" x 26.8" x 13"
(1091.1mm x 681.7mm x 328.3mm)Physical Without Stand: 43" x 25.4" x4.7"
(1091.1mm x 645.7mm x 120.1mm) -
CSOMAG TARTALMA
LCD display, power cable, remote control with batteries, User Guide CD -
INPUT
Videó bemenet: HDMI, DVI, component, VGA, S-Video, composite Video Output: VGA, component, DVI Control Input/Output: RS-232/RJ45 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI Teljesítmény: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
POWER
Feszültség: AC 100–240V (universal), 50–60Hz Fogyasztás: 220W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpnessFront Panel: Power, Exit, +, –, Menu/Enter OSD: Languages, OSD H. position, OSD V. position, OSD timer Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetAudió: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Bemenet: VGA, DVI, HDMI, YPbPr VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position -
WEIGHT
Net With Stand: 58.1 lb. (26.5 kg) Net Without Stand: 57.3 lb. (22.6 kg) Gross With Stand: 68.3 lb. (31 kg) -
OPERATING CONDITIONS
Páratartalom: 20–80% (non-condensing) Temperature (landscape): 41–104ºF (5–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. -
AUDIO OUT
Speakers: 2 x 10w -
OPS
Open Pluggable Specification slot (OPS) ready
