CDE6561T
Termék leírás

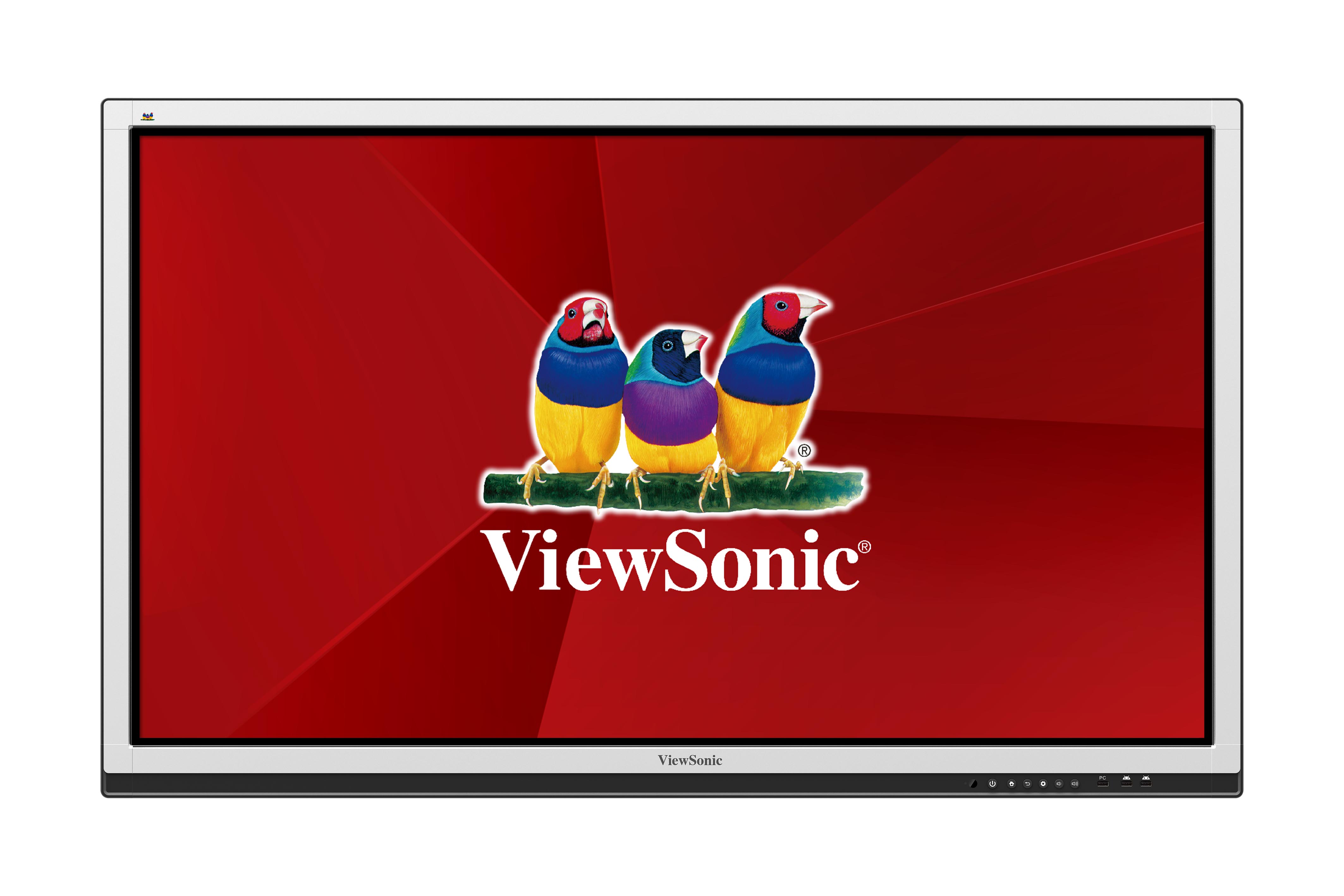

The ViewSonic® CDE6561T 65’’ Full HD interactive flat panel display is a perfect solution for interactive business and educational classroom applications. This 20-point touch-enabled display, paired with PC-less operation and pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s 7H hardness surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms, while Flicker-Free and Blue Light filter technologies create a more comfortable viewing environment. With a built-in dual core processor and 8GB internal storage, as well as versatile connectivity including HDMI, VGA, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP711-P10) capability with Windows® 10 OS and ViewBoard annotation software, for more computing-intensive interactive applications. The CDE6561T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Látogasson el hozzánk
  • www.viewsonic.com
  • LCD PANEL
    Panel mérete: 65” (64.5” viewable)
    Típus/ Technika: TFT LCD Module with LED Backlight
    Megjelenített terület (mm): 1428.48(H) x 803.52(V) (64.5” diagonal)
    Képarány: 16:09
    Felbontás: 1920x1080
    Colors: 10 bit, 1.07B colors
    Fényerő: 350 nits (typ.)
    Kontrasztarány: 1400:1 Typ.
    Válaszidő: 8ms
    Betekintési szögek: H = 178, V = 178
    Backlight: LED
    Háttérvilágítás élettartama: 50,000 Hours Typ
    Hardness: 7H
  • TOUCH
    Típus/ Technika: Infrared
    Érintés felbontás: 32767 x 32767
    Touch Point: 20 points for gesture, 5 points for writing
    Response time: 15ms MAX.
    System: Windows10 / Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome
  • INPUT
    HDMI: x3
    RGB / VGA: x3
    Audió: x3 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS / ViewSonic PC module slot: N/A / x1 (for NMP710)
  • OUTPUT
    RGB / VGA: x1
    Audió: x1 (Earphone out)
    SPDIF: x1 (Coxial)
  • LAN
    RJ45: x1
  • USB
    A típus: x3 (2.0); x1 (3.0)
    B típus: x1 (for touch)
  • HANGSZÓRÓK
    10W x 2
  • BUILT-IN PC
    Processzor: ARM Cortex A9 Dual Core CPU
    Graphic: ARM Mali400 MP4
    Memória: 1.5GB
    Tárolás: 8GB
    Networking: Integrated 10/100/1000M Adaption
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 480i, 480p,720p, up to 1080
  • CONTROLS
    Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
    Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
    Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist
  • POWER
    Feszültség: 100-240VAC +/- 10% Wide Range
    Fogyasztás: "On" 270W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400 (M8 x 60mm) With Wall Mount Spacer
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Páratartalom: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Fizikai (inch / mm): 59.96x36.38x3.9 in/ 1523x924x98
    Csomagolás (inch / mm): 66.18x42.17x8.66 in / 1697x1071x220
  • WEIGHT
    Nettó (font / kg): 100.31lb / 45.5kg
    Bruttó (font / kg): 125.66 lb /57kg
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX?
    CDE Interactive Large Format Display Monitor
    VGA cable
    Power cable x 4
    Remote control
    USB cable
    Audio cable
    Touching pen x 3
    User manual CD wizard
    RS232 adapter
    Wall Mount Spacer
