CD3225
Termék leírás

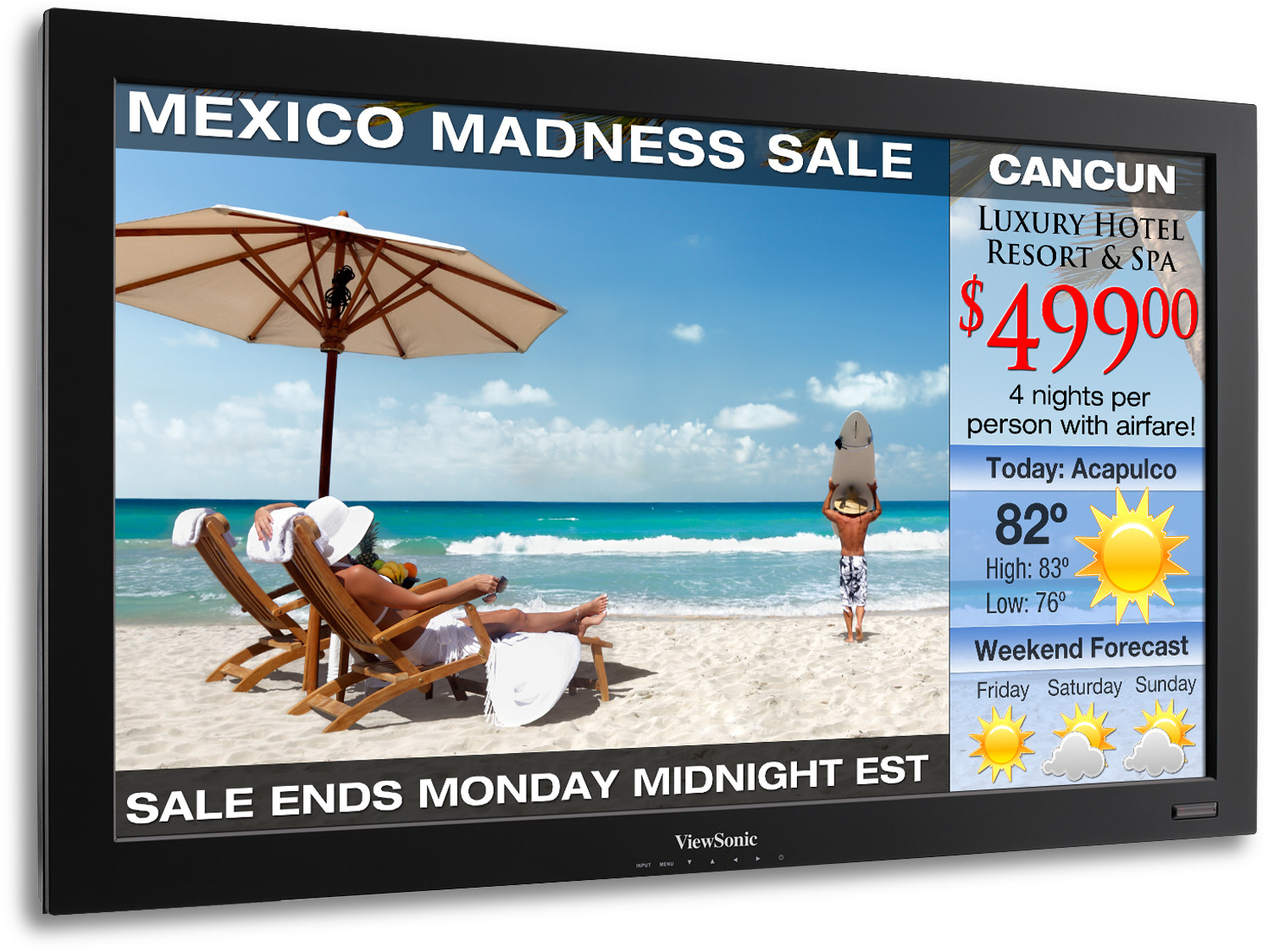

ViewSonic’s 32" CD3225 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution and nearly 178º horizontal and vertical viewing angles provide a clear view in any installation. Multiple connectivity and resolutions provide many options for showing a diverse set of digital signage content; from movies, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this bright and high contrast commercial display.
Látogasson el hozzánk
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Típus: 32" color TFT active matrix, wide LCD
    Kontrasztarány: 5000:1 (typ)
    Betekintési szögek: 178º horizontal, 178º vertical
    Fényerő: 450 cd/m2 (typ)
    Display Area: 27.48" horizontal x 15.47" vertical; 31.5" diagonal
    Optimum Resolution: 1920x1080, 0.36375mm dot pitch
    Válaszidő: 8ms
    Fényforrás: Long life, 50,000 hrs. (typ)
    Képarány: 16:9
    Panel Surface: Anti-glare
  • DIMENSIONS
    Fizikai méretek (SzxHxM): 29.2" x 18.6" x 5.1" (775.6mm x 472.6mm x 128mm)
    Packaging: 33.6" x 26.5" x 13.9" (855mm x 675mm x 355mm)
  • AUDIO
    Hangszóró: 6Wx2
  • INPUT
    Audió: 3.5mm jack
    Videó bemenet: HDMI, DVI, VGA, S-Video, CVBS
    Control Input/Output: RS-232/RS-232
  • CONNECTOR
    Digital: HDMI, DVI
    Teljesítmény: 3-pin plug
    Analog: 15-pin mini D-sub (VGA)
  • POWER
    Feszültség: AC 100–240V (universal), 50–60Hz / DC 24V, 4.1A
    Fogyasztás: 100W (typ)
  • CONTROLS
    Picture: Pictue Mode, Contrast, Brightness, Color, Tint, Sharpness,
    Backlight, DCR, Color Temperature
    Audió: Volume, Mute
    Front Panel: Input, Menu, Up, Down, Left, Right, Power
    OSD: Aspect Ratio, PIP, Video Source, Auto Adjustment, Clock,
    Frequency, Phase, H. Possition, V. Position, 3D Comb, Blue Screen
    Special: Language, Overscan, Power Save, Set Monitor ID, Image
    Rentaton, Auto Adjsutment, Reset All Setting, Diagnostic
  • VIDEO SIGNAL
    Video: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • WEIGHT
    Net: 35.3 lb. (16 kg)
  • OPERATING CONDITIONS
    Páratartalom: 20–80% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
