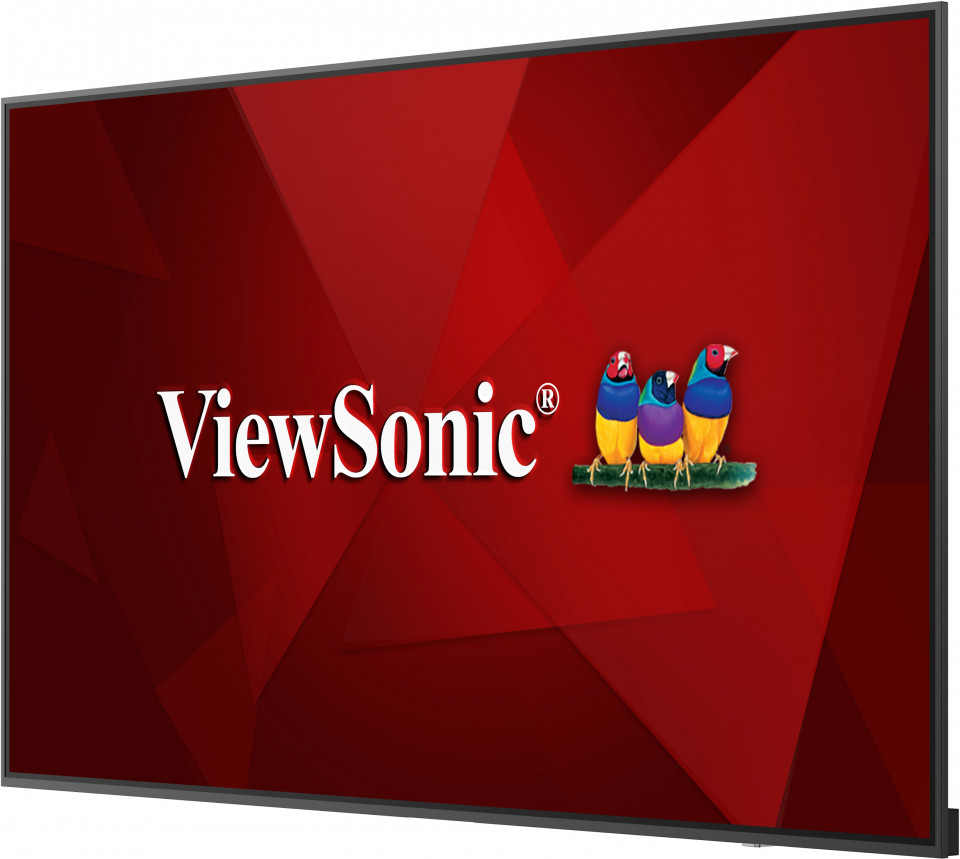

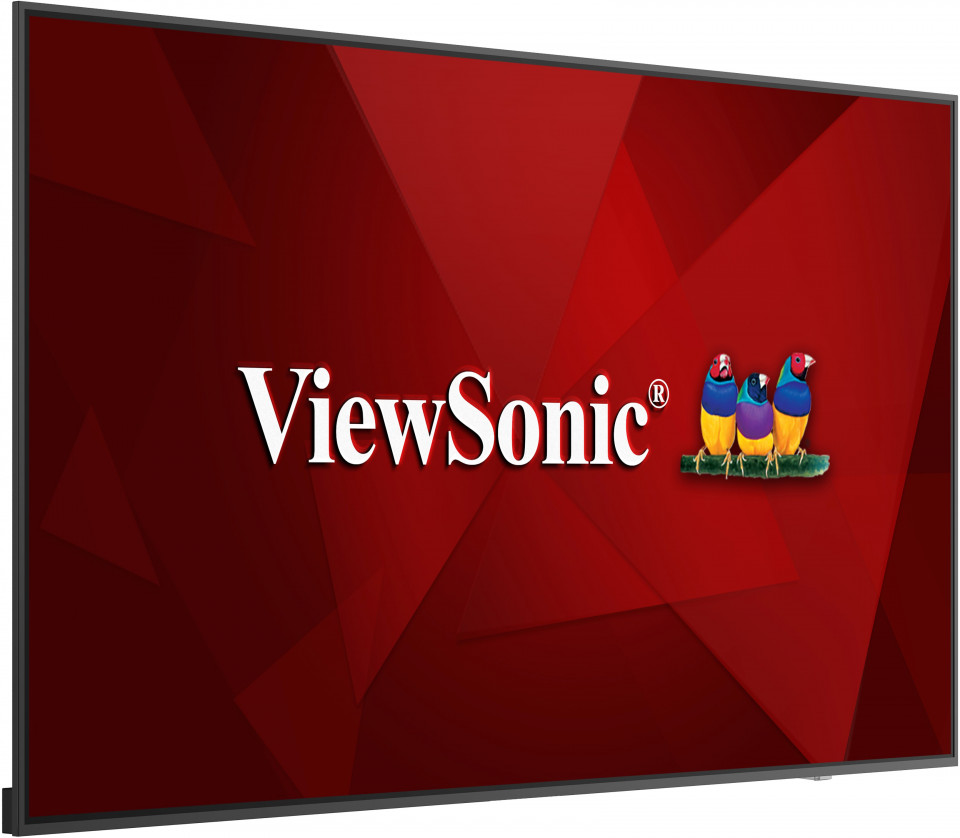

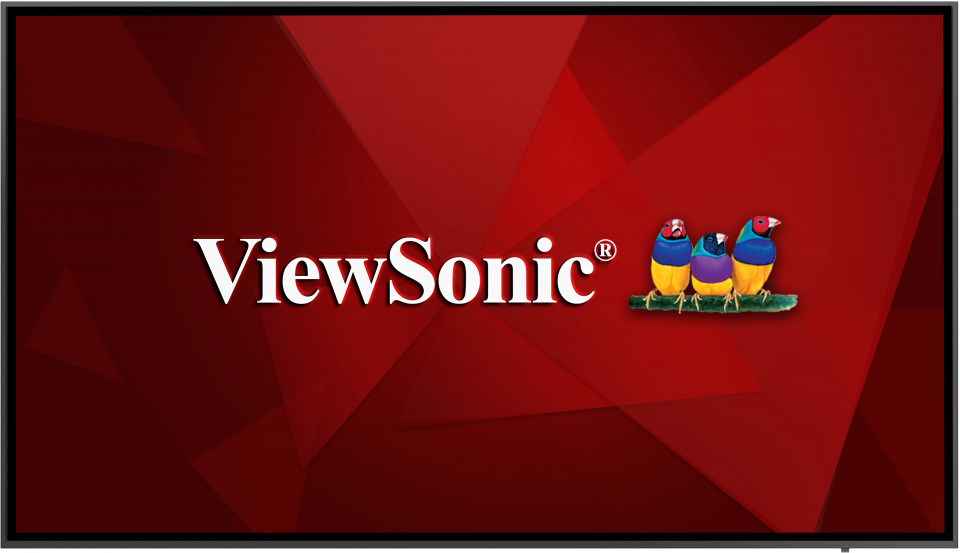

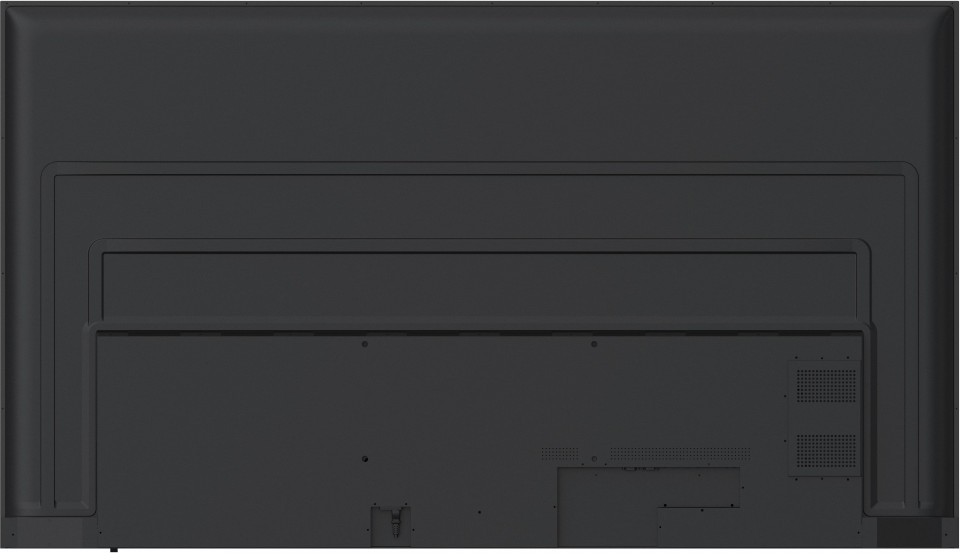

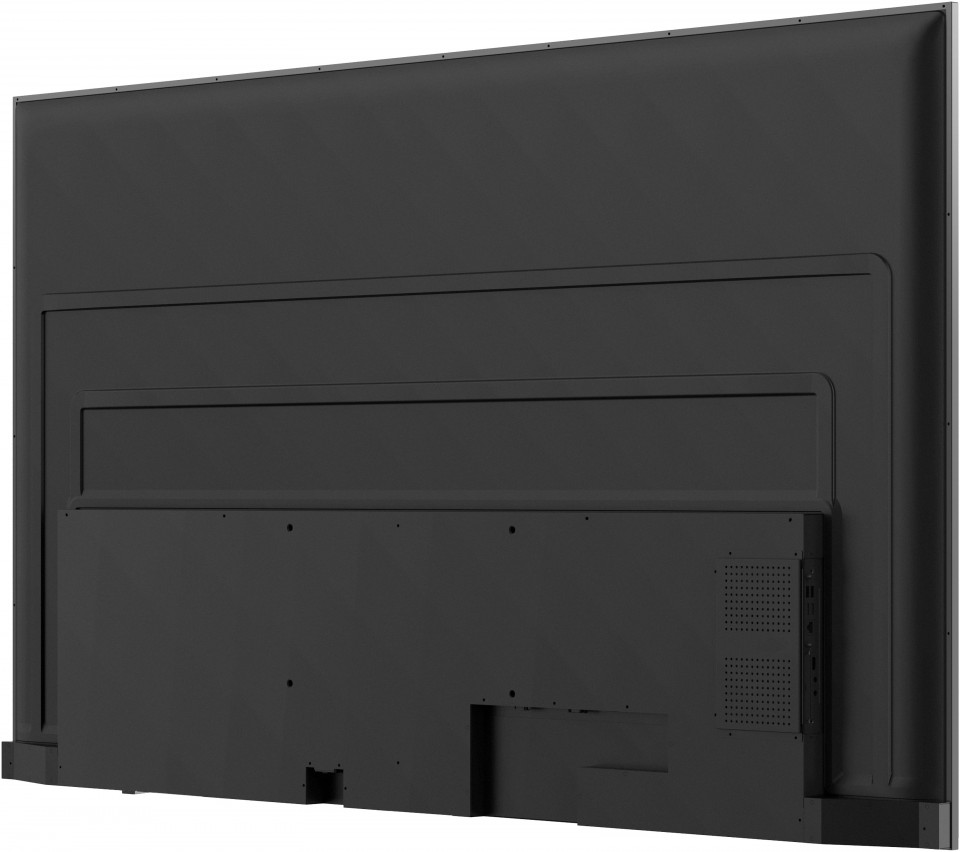

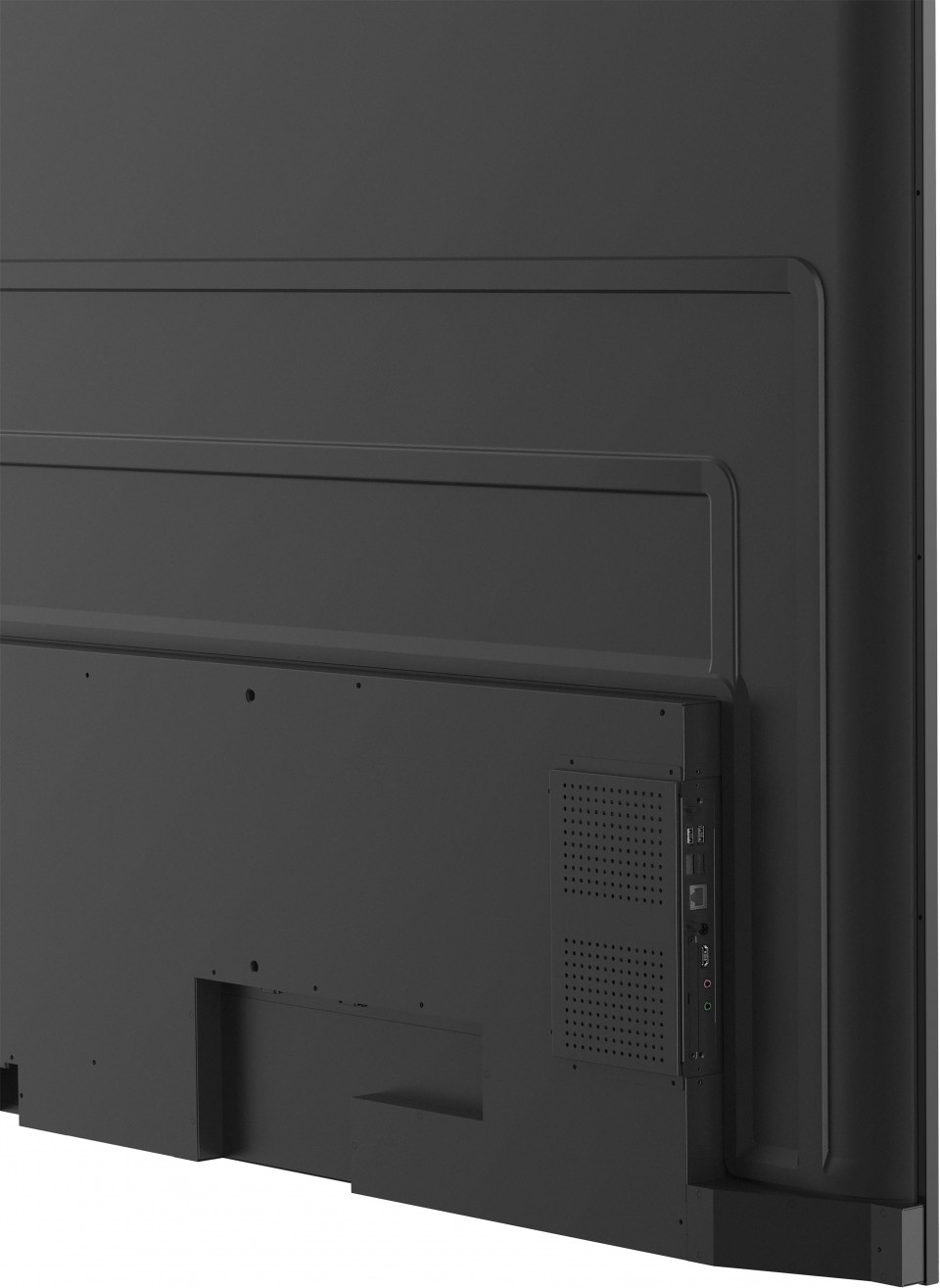

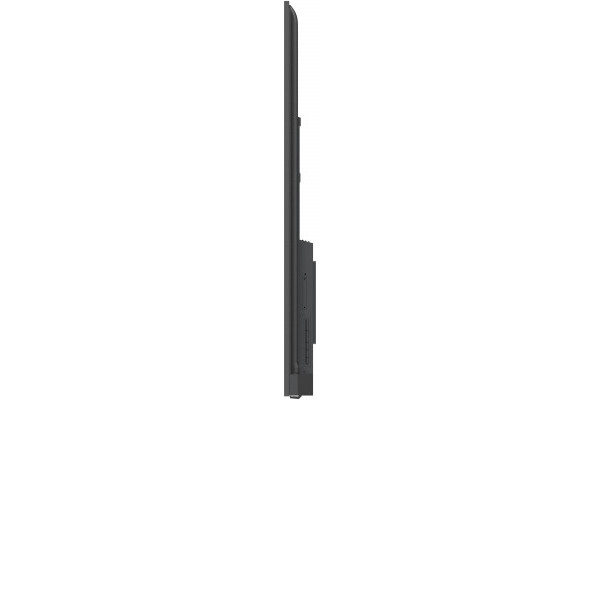

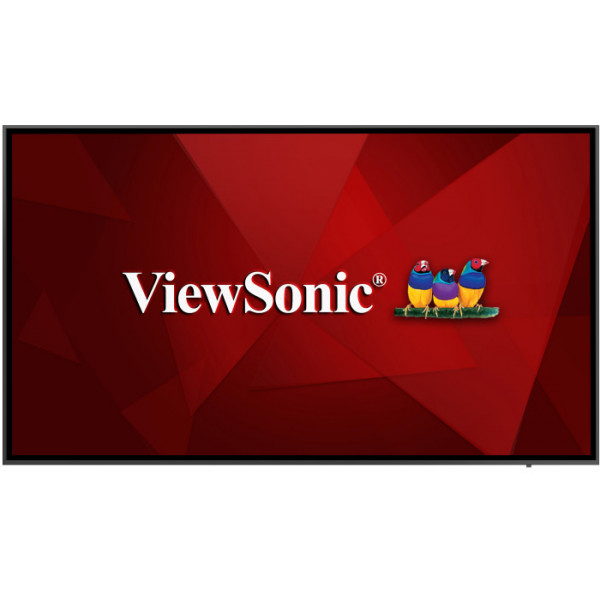

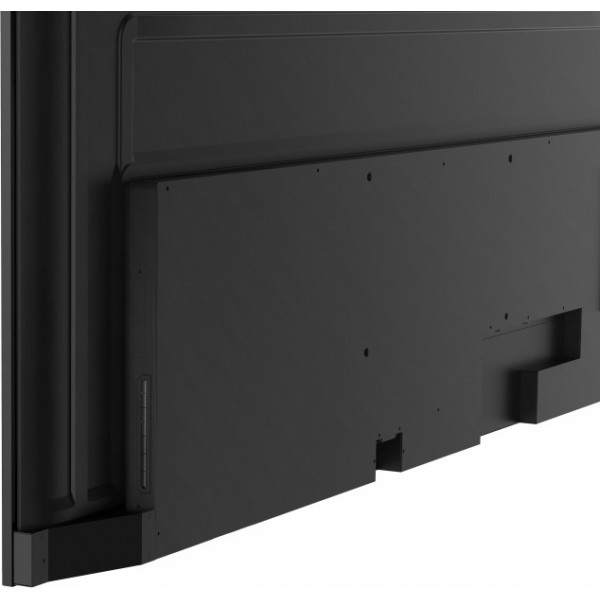

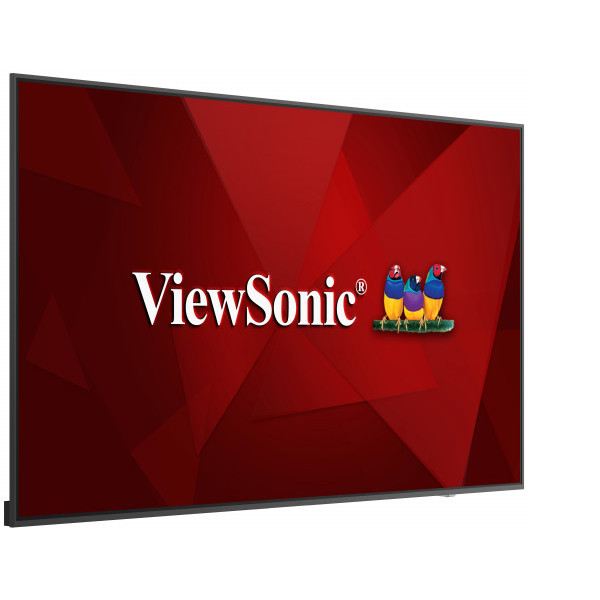

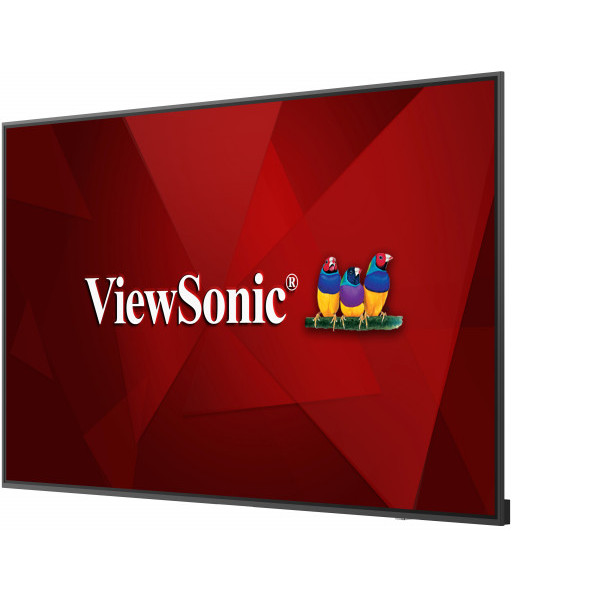

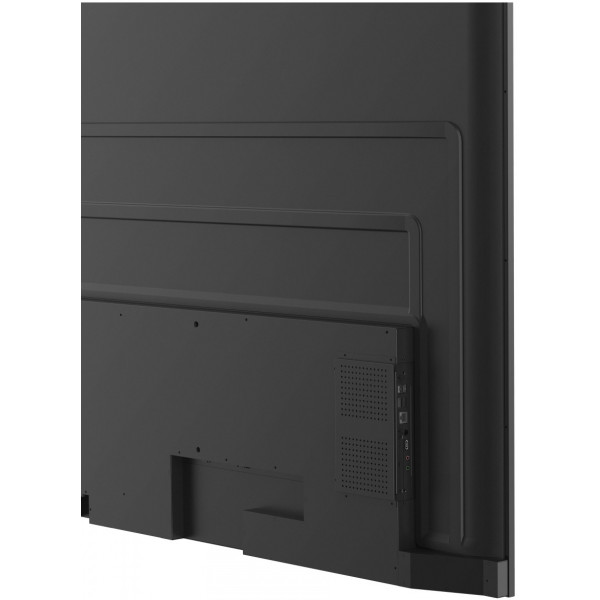

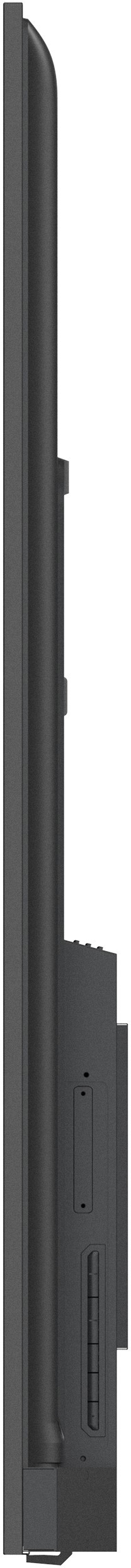

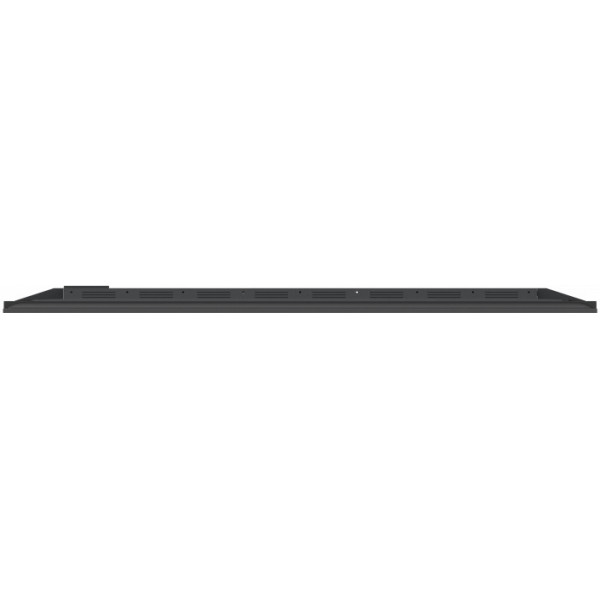

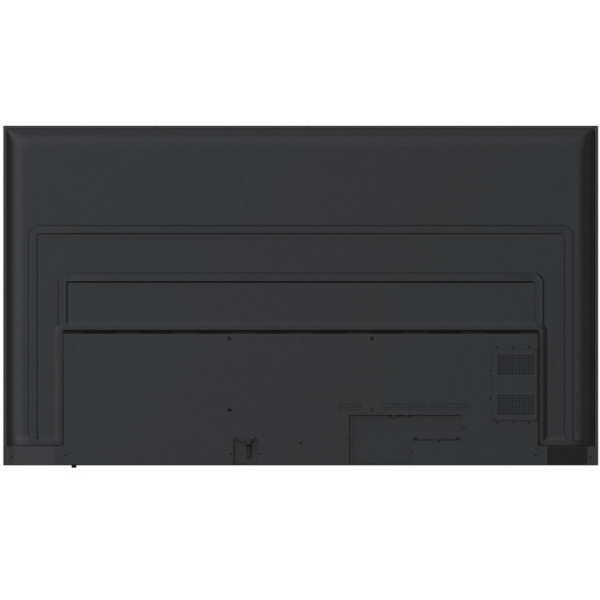

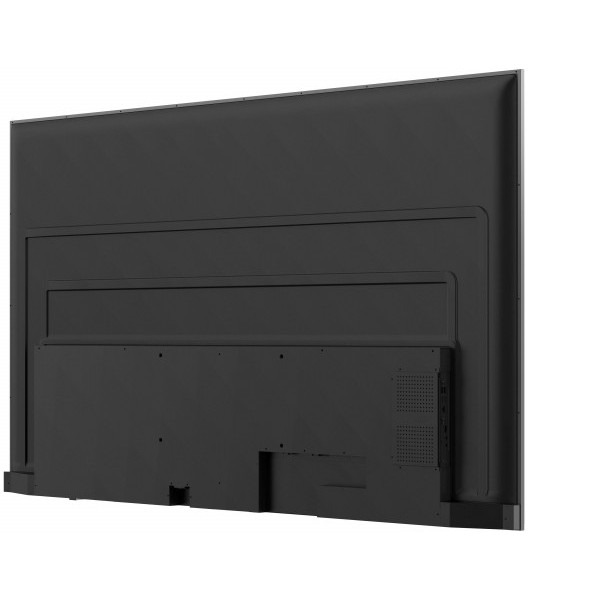

CDE7520
75" Presentation Display
- Easy cast function
- Wireless presentation across devices and rooms
- USB flash drive plug-and-play for photos, music & video
- Multitasking with powerful embedded player & OPS PC slot
- 4K slim bezel presentation display
SPECIFIKÁCIÓK
- MegjelenítésPanel mérete: 75"
Típus/ Technika: TFT LCD Module. IPS type, DLED backlight
Megjelenített terület (mm): 1649.664(H) × 927.936(V) (75" diagonal)
Natív felbontás: 3840 x 2160
Képarány: 16:9
Colors: 1.07G colors
Fényerő: 450 nits (typ.)
Kontrasztarány: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Válaszidő: 8 ms
Betekintési szögek: H = 178, V = 178 typ.
Háttérvilágítás élettartama: 30,000 Hours (min)
Felületkezelés: Anti-glare, 3H hardness, Haze 25%
Keret: Slim

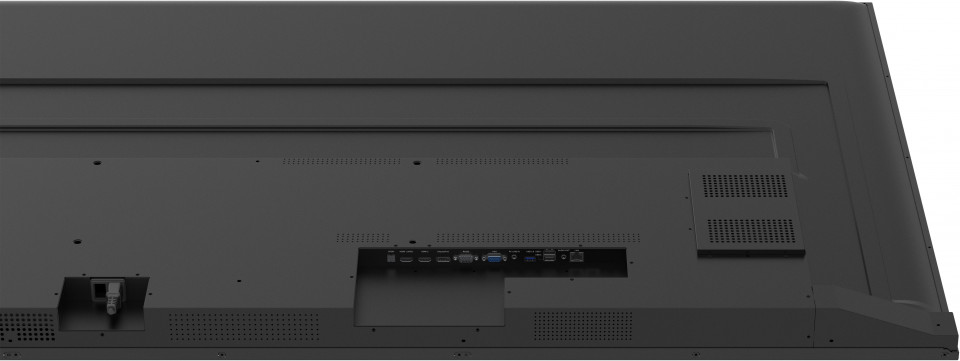

Orientáció: Landscape - INPUTHDMI: x2
RGB / VGA: x1
DisplayPort: x1
Audió: x1 (3.5mm)
RS-232: x1
OPS Slot: x1 (Optional Intel OPS VPC12-WPO)
WiFi Slot: x1
- OUTPUTAudió: x1 (3.5mm)
SPDIF: x1 (Fiber) - LANRJ45: x1
- USBA típus: 2.0 Type A : x 2 (USB Playback), 3.0 Type A : x 1 (USB Playback)
- HANGSZÓRÓKHANGSZÓRÓK: Max. 16Wx2
- COMPATIBILITYRGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Android verzió: Android 8.0 - POWERFeszültség: 100V-240V,50/60Hz (AC)
Fogyasztás: Normal 107 W - ERGONOMICSFalra szerelhető (VESA® ): 400x200 mm
- OPERATING CONDITIONSHőmérséklet (ºC): 0 to 40°C
Páratartalom: 20% ~ 80% non-condensing - MÉRETEK (Sz x H x M)Fizikai (inch / mm): 65.83 x 37.59 x 2.76 in/ 1672.0 x 955.0 x 70.0 mm
Csomagolás (inch / mm): 71.97 x 43.23 x 8.66 in/1828 x 1098 x 220 mm - WEIGHTNettó (font / kg): 29.30 kg / 64.60 lbs (w/o stand)
Bruttó (font / kg): 41.7 kg/91.93 lbs - CSOMAG TARTALMACSOMAG TARTALMA: 1. CDE7520 presentation display, 2. Remote control with batteries, 3. Quick start guide, 4. Power cables (1.5M), 5. HDMI-IN cable (3M) 6. Wall mount screw, 7. RS232 adapter
