Key Features
  • 4,500 ANSI Lumens, offering clear images in any environment​
  • Up to 300" ultra large screen with lower cost-per-inch ​
  • Easy and flexible connection: dual HDMI ports, USB Type-A port​
  • Vivid colors with ViewSonic's SuperColor™ Technology​
  • Convenient software updates for projectors via USB connection​

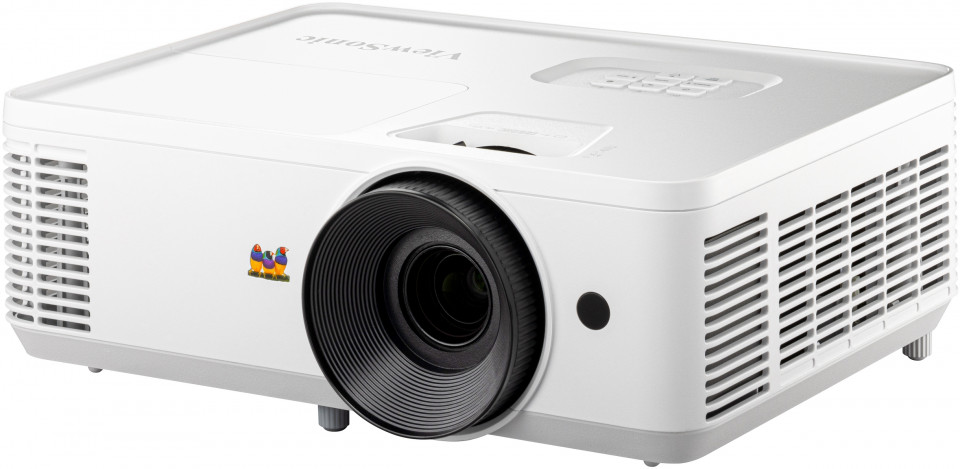

PA700W
Product Description
The PA700W is ViewSonic’s high brightness WXGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1280x800
    Brightness: 4500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12500:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lens: F=2.41-2.53, f=21.85-24mm
    Projection Offset: 112.4%+/-5%
    Throw Ratio: 1.544-1.72
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.00m-11.11m
    (100"@3.33m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 25dB
    Input Lag: 33.2ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 3W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 295W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.70kg
    Gross Weight: 3.80Kg

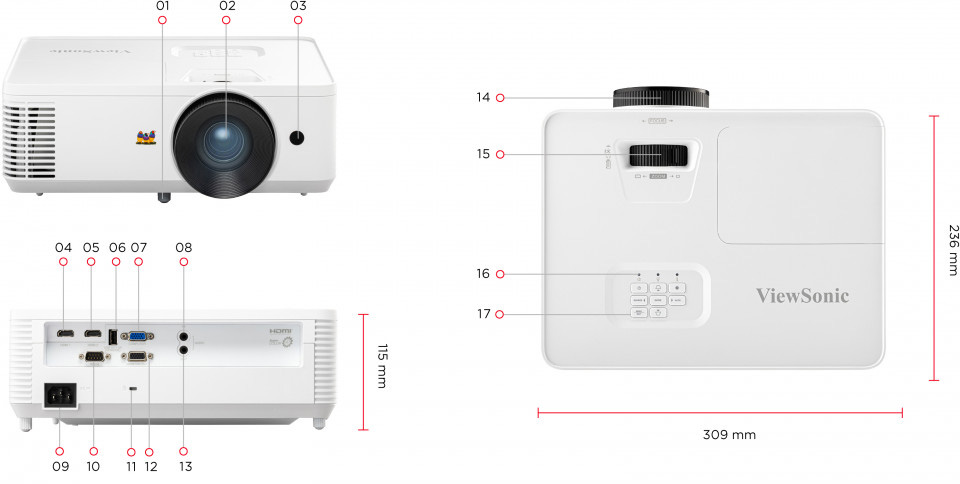

    Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
    Packing Dimensions: 400x337x168mm
    OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Air Filter: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-128
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
