Key Features
  • 1,700 LED Lumens offering bright images anywhere you go
  • Portability with compact size and power on by power bank
  • Easy setup: Instant auto focus and side projection capability
  • Integrated Harman Kardon speakers for theater-level sound
  • Industry-leading LED technology for 30,000-hour light source life
  • Smart capabilities: Wi-Fi screen mirroring, USB-C streaming, and Bluetooth connectivity​​

M2W
Product Description
The M2W is a HD ready portable smart LED projector boasting 1,700 LED Lumens, allowing you to enjoy big-screen fun wherever you go without sacrificing brightness. Setup is effortless with instant auto focus and side projection capabilities with H/V keystone and 4 corner correction. Its ultralight portable design and powering on by power bank ability provide you cinematic experiences on the go. Combining perfect images with lifelike colors covering 125% Rec.709 supported by ViewSonic’s industry-leading LED technology and exceptional sound quality through Harman Kardon-customized speakers, the M2W delivers a true feast for the eyes and ears. Add even more fun with smart connectivity features such as Wi-Fi for wireless screen mirroring to get your phone up on the big screen, Bluetooth for alternative audio options, and USB-C for direct single-cable streaming from Nintendo® Switch or the latest iPhone 15.

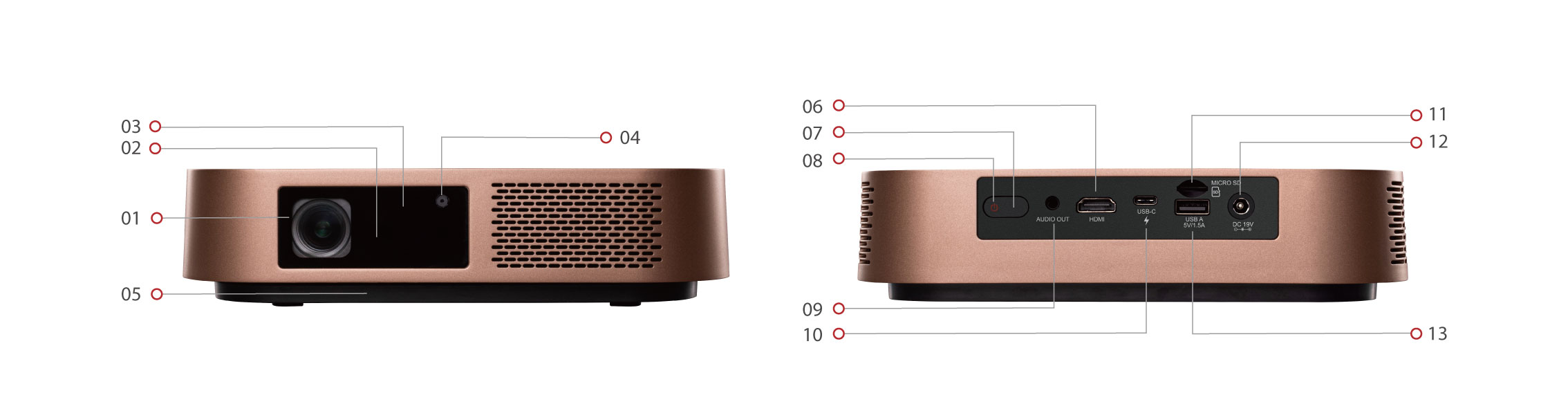

  1. Lens
  2. IR Receiver
  3. Auto Focus Camera
  4. Auto Focus Sensor
  5. Stepless Stand
  6. HDMI
  7. LED Indicator
  8. Power Button
  9. Audio Out
  10. USB-C (5V/0.5A)
  11. Micro SD
  12. DC In
  13. USB Reader (5V/1.5A)
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1280x800
    Brightness: 1700 (LED Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: LED
    Light Source Life (hours) with Normal Mode: 30000
    Lens: F=1.7, f=11.96mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.2
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-1.0x
    Image Size: 24"-150"
    Throw Distance: 0.50m-3.87m
    (100"@2.58m)
    Keystone: H:+/-40° , V:+/-40°
    Audible Noise (Normal): 26dB
    Audible Noise (Eco): 26dB
    Local Storage: Total 16GB
    (10GB available storage)
    Input Lag: 66ms
    Resolution Support: VGA(640 x 480) to
    FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 30K~97KHz
    Vertical Scan Rate: 24~85Hz
  • INPUT
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    USB Type C: 1 (5V/0.5A)
    Audio-in (Bluetooth): 1 (BT4.2)
    USB Type A: 1
    (USB2.0 Reader)
    SD Card: Micro SD (256GB, SDXC)
    Wifi Input: 1 (5Gn)
  • OUTPUT
    Audio-out (3.5mm): 1
    Audio-out (Bluetooth): 1 (BT4.2)
    Speaker: 3W Cube x2
    (Full range x2)
    USB Type A (Power): 1
    (USB2.0 - 5V/1.5A,
    share with USB A Input)
  • CONTROL
    USB Type A (Services): 1
    (share with USB A Input)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19VDC / 4.74A
    Power Consumption: Normal: 71W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Color
    Net Weight: 1.35kg
    Gross Weight: 3.12kg
    Dimensions (WxDxH) with Adjustment Foot: 225x225x57mm
    Packing Dimensions: 290x280x168mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    USB-C Cable: 1 (1m)
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (JP Only)
    Carry Bag: Yes
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
