Key Features
  • 2nd generation laser phosphor technology with up to 30,000 hours lifespan
  • 4,200 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen that is easily installed and set up
  • 0.49 short throw for immersive edge blending without any shadows
  • Installation flexibility: H/V keystone, 4 corner adjustment, 360° projection and portrait mode
  • HDMI 2.0b for accessibility of 4K contents with HDR/HLG support

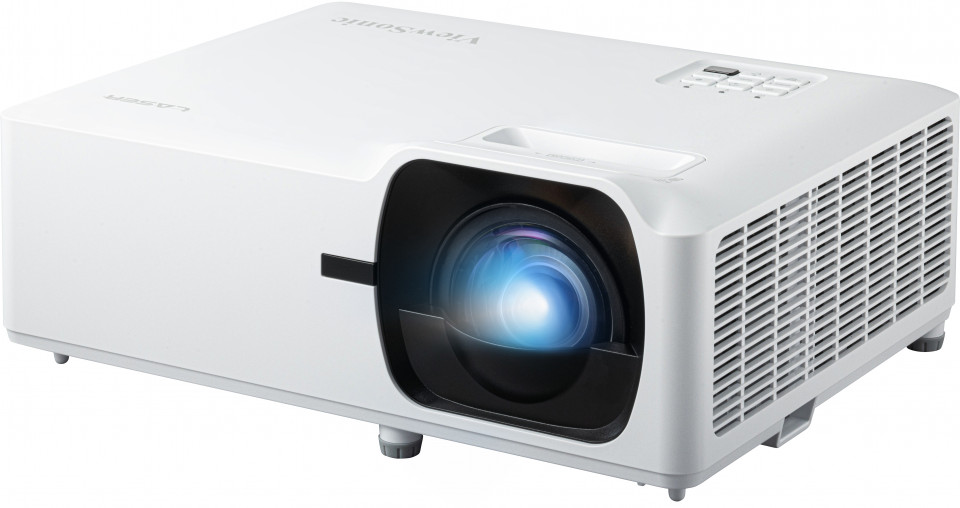

LS710HD
Product Description
The Luminous Superior series is ViewSonic’s lamp-free high brightness projector for both business and education. The LS710HD adopts industry-leading 2nd generation laser phosphor technology, delivers 4,200 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering clear and bright images with vivid colors and 1080p resolution. Boasting short throw ratio, flexible installation and easy image adjustments, the projector enables effortless edge blending to create an immersive experience for any space, be it a restaurant, gym, gallery, etc. With 0.49 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being bothered by the shadows. The LS710HD allows perfectly-shaped images even from an angled projection with H/V keystone and 4 corner correction and offers versatile application with 360° projection and portrait mode. The projector also comes with HDMI 2.0b, ensuring you access to original 4K quality content with HDR/HLG support.

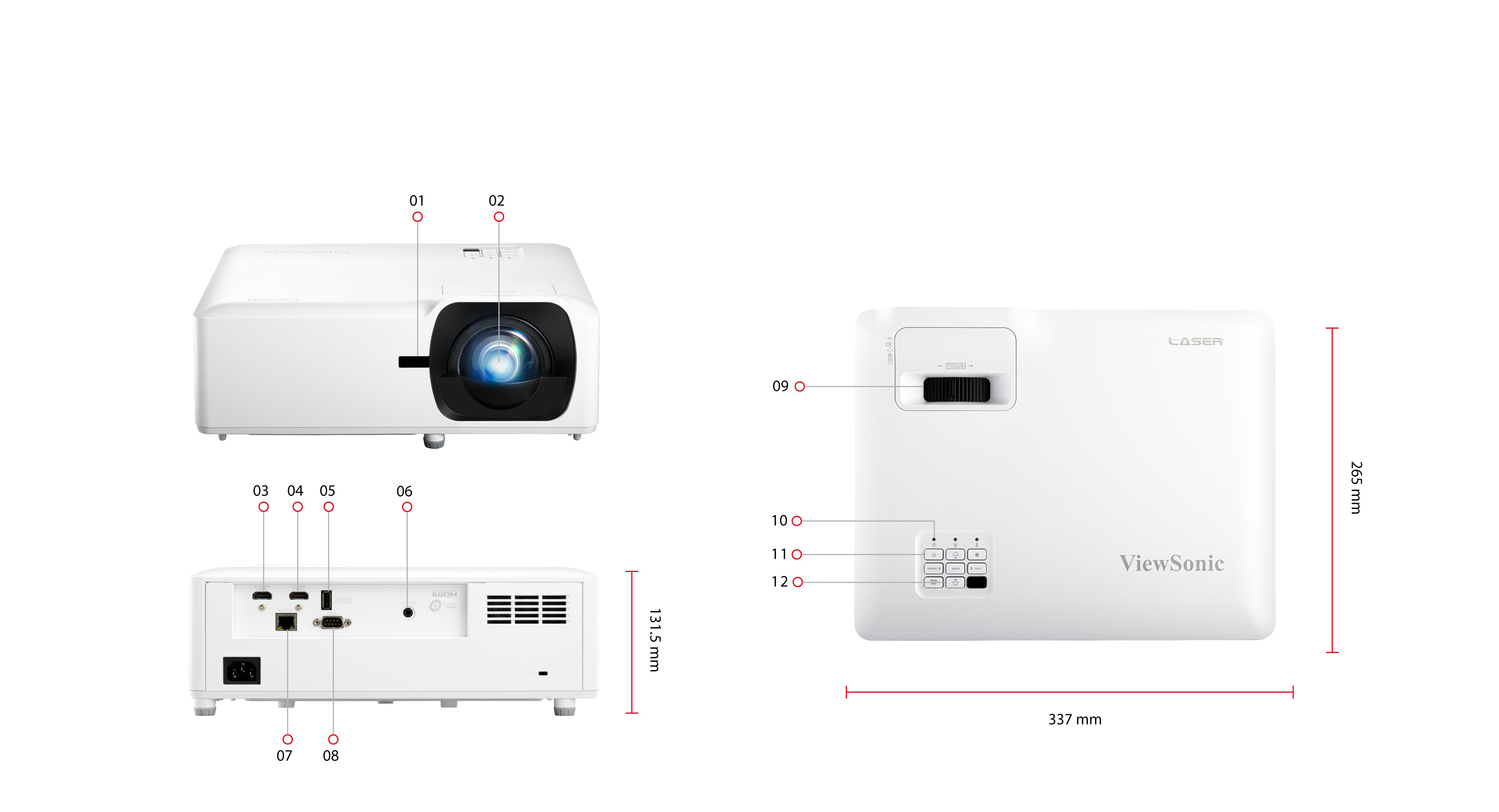

  1. Front IR
  2. Lens
  3. HDMI 1.4/ HDCP 1.4
  4. HDMI 2.0/ HDCP 2.2
  5. USB-A (5V/1.5A, Service)
  6. Audio Out
  7. RJ45 (LAN Control)
  8. RS232
  9. Focus Ring
  10. LED Indicator
  11. Power Button
  12. Keypad & IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1080
    Brightness: 4200 (ANSI Lumens)
    Brightness (Center Lumens): 4600
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.8, f=7.51mm
    Projection Offset: 132%+/-5%
    Throw Ratio: 0.49
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 40"-300"
    Throw Distance: 0.43-3.25m
    (100"@1.08m)
    Keystone: H:+/-15° , V:+/-15°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 29dB
    Input Lag: 49.9ms
    Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2
    HDMI 1.4/ HDCP 1.4)
  • OUTPUT
    Audio-out (3.5mm): 1
    Speaker: 15W x2
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 245W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 4.5kg
    Gross Weight: 6.6kg
    Dimensions (WxDxH) with Adjustment Foot: 337x265x131.5mm
    Packing Dimensions: 496x195x387mm
    OSD Language: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak,
    Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
