Key Features
  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

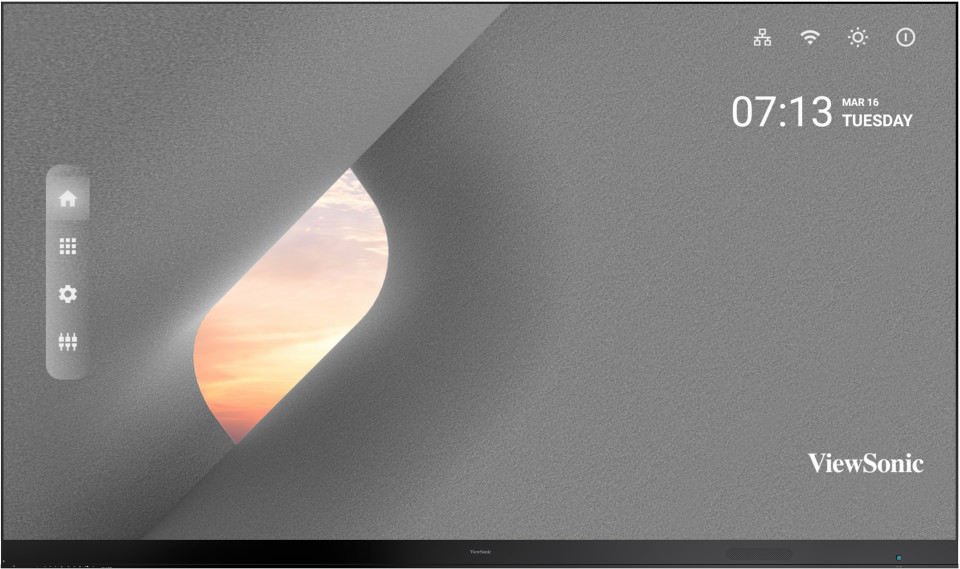

LDM163-181
Product Description
The ViewSonic® LDM163-181 is an innovative 163” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 35 mm thickness & bezel-free seamless design, the LDM163-181 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact, whether hanging on the wall or aluminum alloy floor stand. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LDM163-181 enables IT personnel to remotely setup and configure.
  1. RS-232
  2. Ambient Light Sensor
  3. USB 2.0 (5V/0.5A)
  4. USB 3.0 (5V/1A)
  5. HDMI Out
  6. HDMI In
  7. Audio Out
  8. USB-B (Service)
  9. IR Receiver
  10. LAN
  11. Menu Control: Stand-by
  12. Menu Control: Input Source
  13. Menu Control: Brightness Level
  14. Speakers
  15. Power Button
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Screen Size: 163"
    Display Area (mm): 3600 (H) x 2025(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.88
    Refresh Rate: 3840Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 32GB (26GB available storage)
    Resolution Support: HDMI(640 x 480) to 1080p(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • INPUT
    HDMI: x2(HDMI 1.4, HDCP 1.4)
    USB Type A: x3(USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • OUTPUT
    HDMI out: x1(HDMI 1.4, HDCP 1.4)
    Speaker: 5W*2
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input(5V/1A*1, 5V/0.5A*2)
  • CONTROL
    RJ45 (LAN control): x1(shared with internet)
    USB Type A (Services): x1(shared with USB A input)
    USB Type B (Debug): x1
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • OTHERS
    Power Supply Voltage: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz(vary by country)
    Power Consumption: 1860W (typ), 2660W (max)< 0.5W (Sleep), < 0W (Off)
    Operating Temperature: 0~40℃
    LED Module Quantity: 144
    Ingress Protection Rating: IP30
    Net Weight: 423 lbs(192kg)
    Gross Weight: 661 lbs(300kg)
    Screen Dimensions (WxHxD): 142.5x84.4x1.4 inches(3620.95 x 2143.45 x 35mm)
    Screen Dimensions (WxHxD) with wall mount: 142.5x84.4x2.2 inches(3620.95 x 2143.45 x 56mm)
    Packing Dimensions: 82.7x33.5x32.1 inches(2100x850x815mm)
  • STANDARD ACCESSORIES
    Power Cord: x1
    USB Cable (A-B): x1
    Remote Control: x1
    QSG: x1
    Wall Mount: x1
    Spare Parts: LED PCB Unit x2
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    Floor Stand: LD-STND-002
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
