LS950WU

7,100 ANSI Lumens WUXGA Laser Installation Projector

  • 7,100 ANSI Lumens ensure vibrant images in large venues
  • High native contrast ratio provided by a 0.67" DMD chip and DLP technology
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: motorized focus, 1.6x optical zoom, H/V lens shift, and 360° projection
  • Centralized LAN control for efficient management
  • 2nd generation laser phosphor technology with up to a 30,000-hour lifespan
Sales Enquiry

OVERVIEW

Introducing the LS950WU from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 7,100 ANSI Lumens brightness and high native contrast provided by a 0.67” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms, enhancing collaborative environments. With a 1.6x optical zoom, it allows for a flexible setup to suit various installation needs, and the motorized focus, lens shift, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. Employing advanced 2nd generation laser phosphor technology, the LS950WU boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

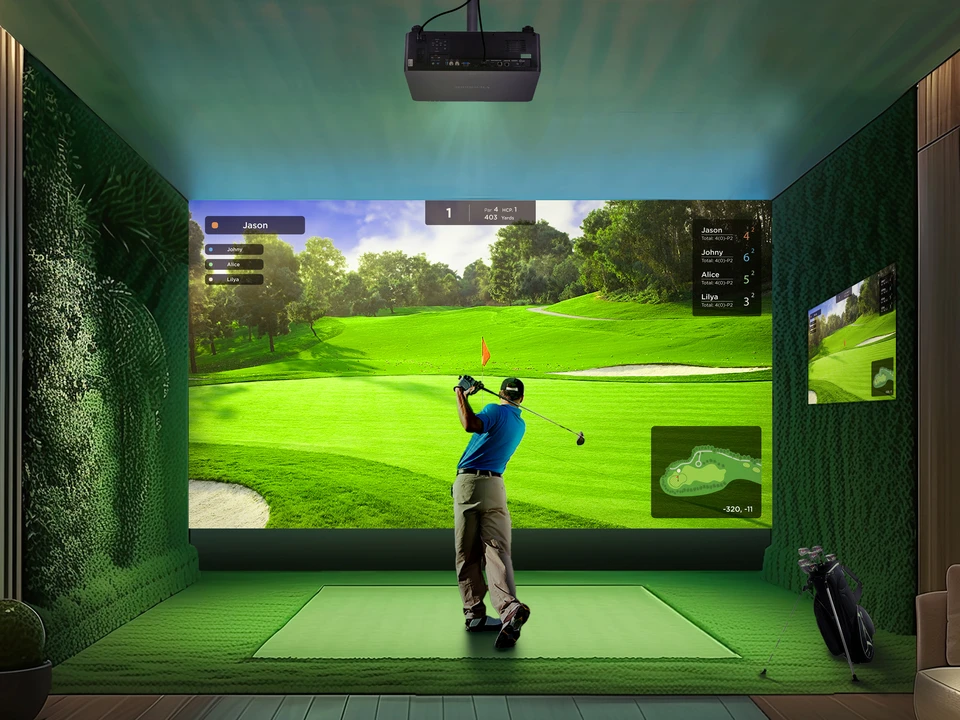

Brilliant Visuals for Large Venues

With an impressive 7,100 ANSI Lumens, the LS950WU ensures crystal-clear visuals even in brightly lit environments. Its WUXGA resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, receptions, training rooms, and indoor golf clubs.
7,100 ANSI Lumens
Brilliant Visuals for Large Venues 1

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LS950WU, boasting high contrast thanks to DLP technology and an advanced 0.67" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

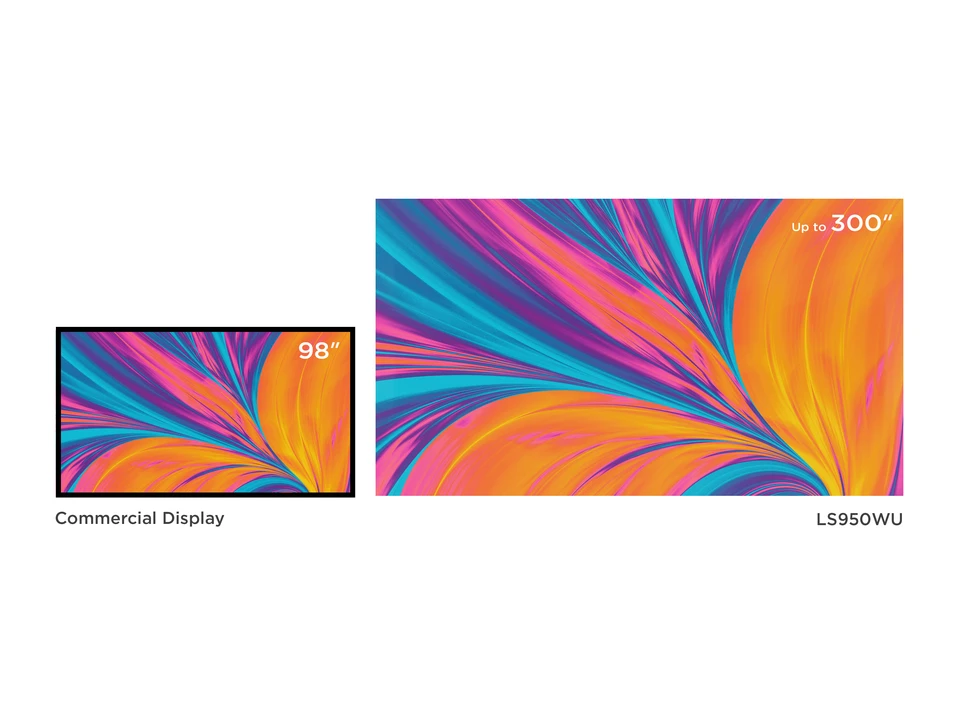

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 300”
Ultra-Large Screen with Lower Cost-per-Inch 1

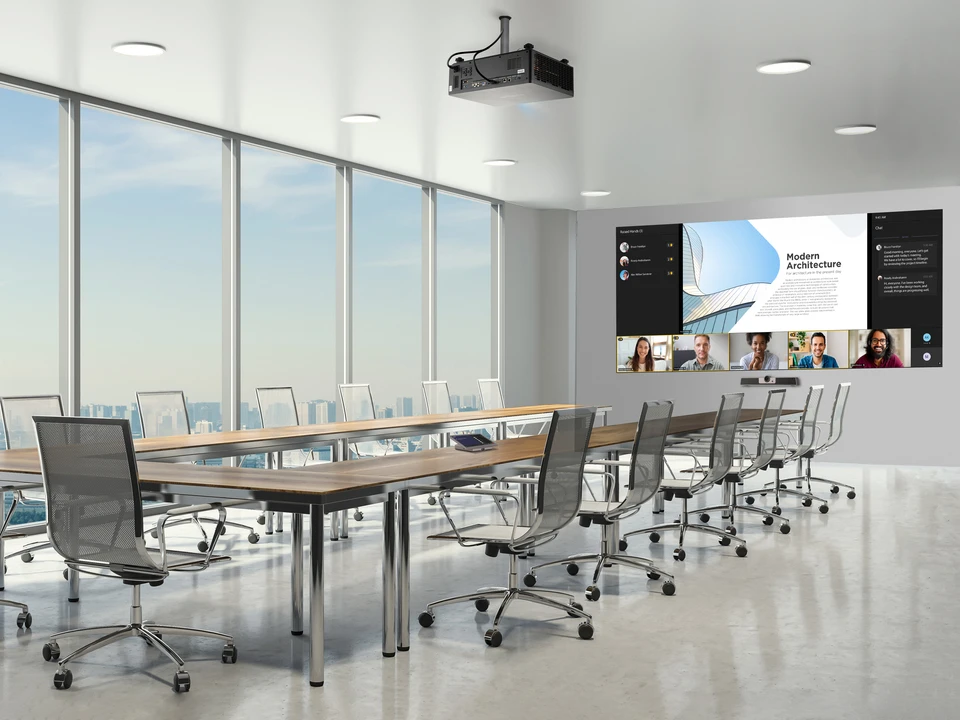

Next-Gen Meeting Experience with 21:9 Aspect Ratio

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Next-Gen Meeting Experience with 21:9 Aspect Ratio 1

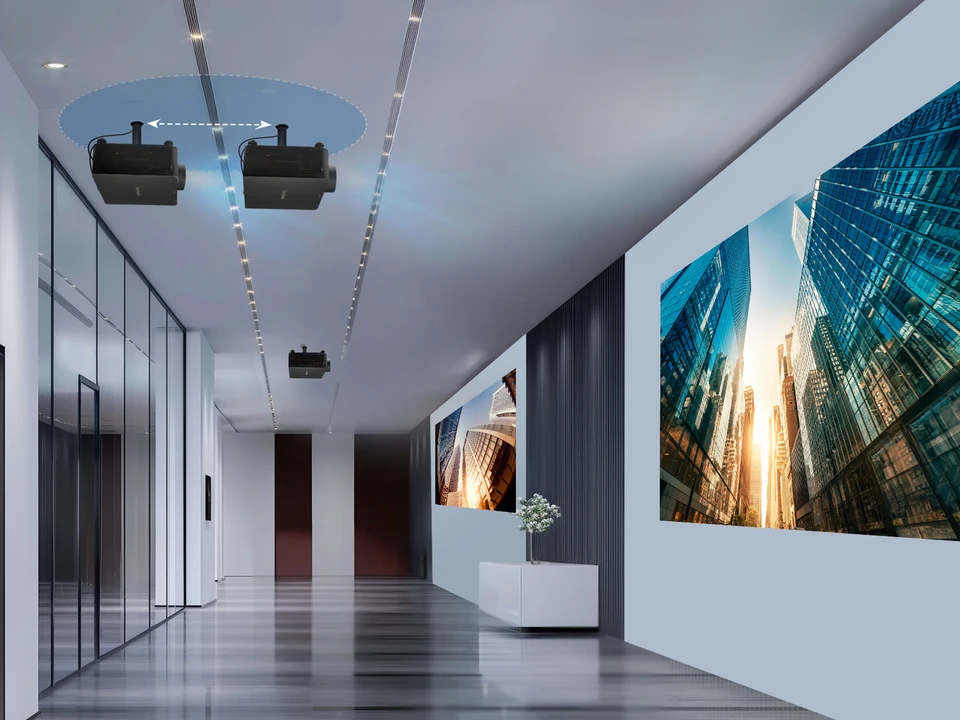

Enhanced Installation Flexibility

Equipped with a 1.6x optical zoom, the projector allows users to choose the ideal setup location within a range, achieving the desired image size without altering the existing interior design. Conveniently fine-tune the zoom and focus using the remote control, ensuring seamless operation without needing to access the ceiling-mounted projector.
Motorized 1.6x Optical Zoom & Focus
Enhanced Installation Flexibility 1

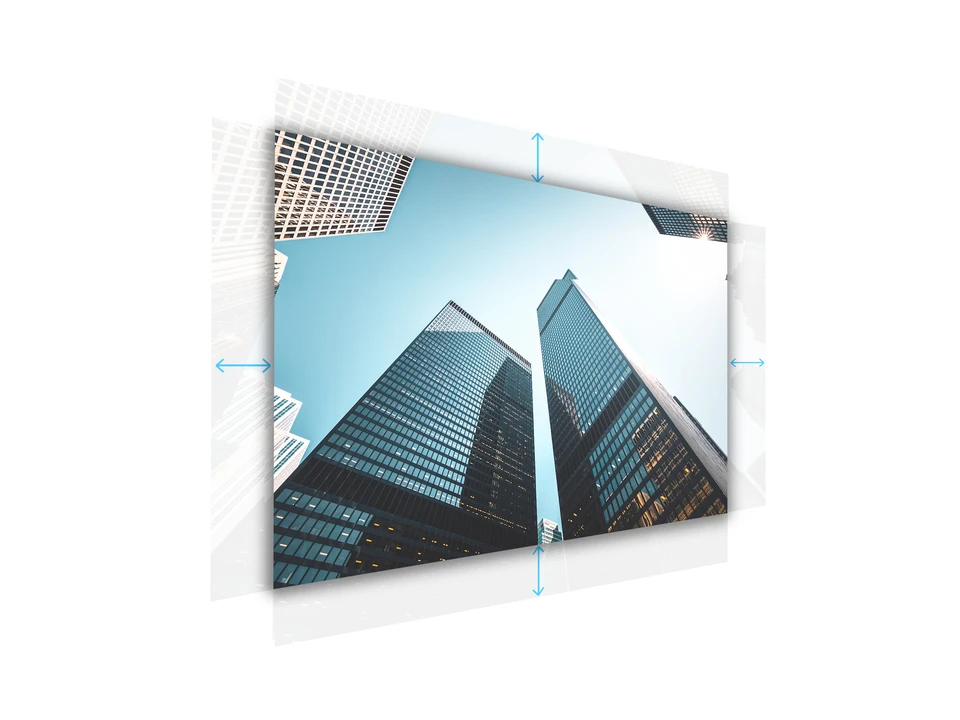

Convenient Placement Setup

The tool-free lens shift control knobs allow you to adjust the projection up, down, left, and right without moving the projector. Additionally, you can also adjust the image position directly via the remote control from a distance. It provides flexible installation options with a wide adjustable range (H: +/- 25%, V: +/- 55%) and minimal placement restrictions.
Motorized H/V Lens Shift
Convenient Placement Setup 1

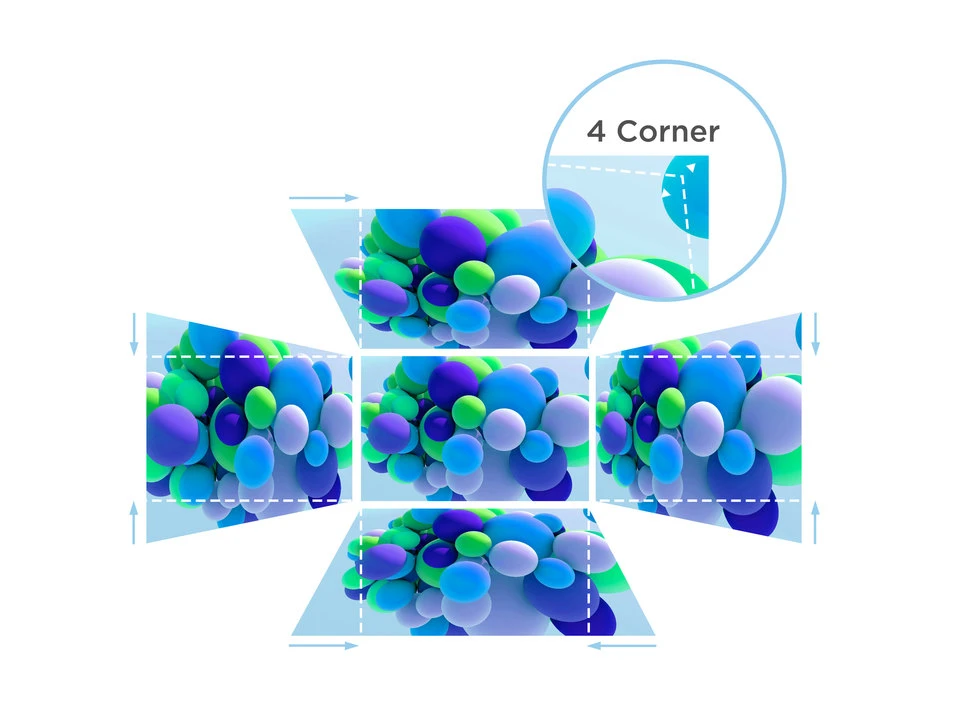

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4 Corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

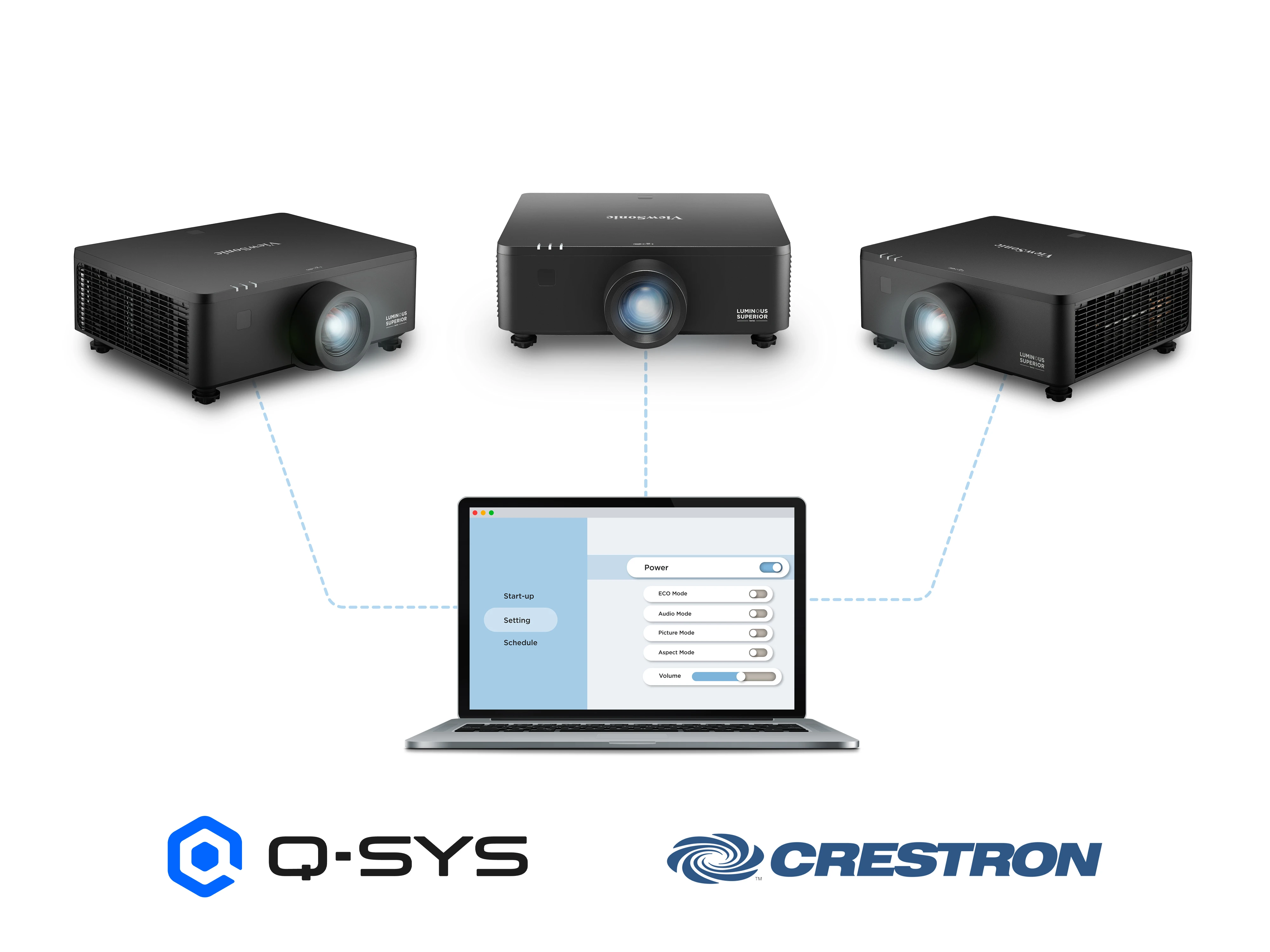

Centralized Control for Management Efficiency

The LS950WU is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

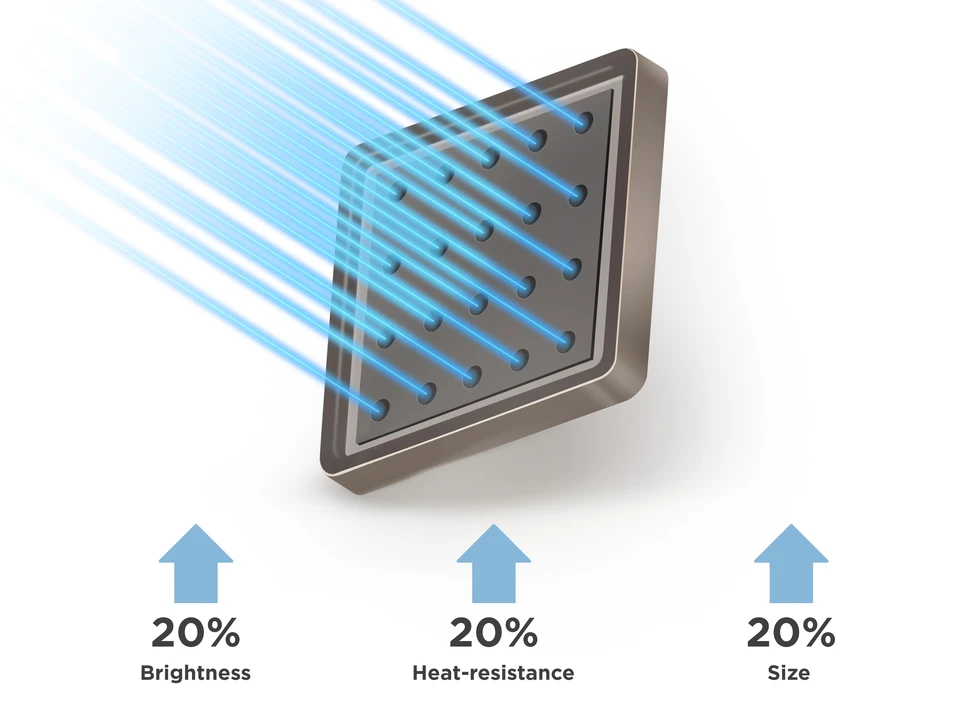

2nd Generation Laser Phosphor Technology

The LS950WU adopts 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, a lamp-free design, and instant power on/off from the previous generation, the new generation improves brightness by around 20%, offers better heat resistance, and features a smaller module design. This results in consistent images in various ambient settings, increased reliability, and a more compact size for extended use in different scenarios.
Up to 30,000-hour Lifespan
2nd Generation Laser Phosphor Technology 1

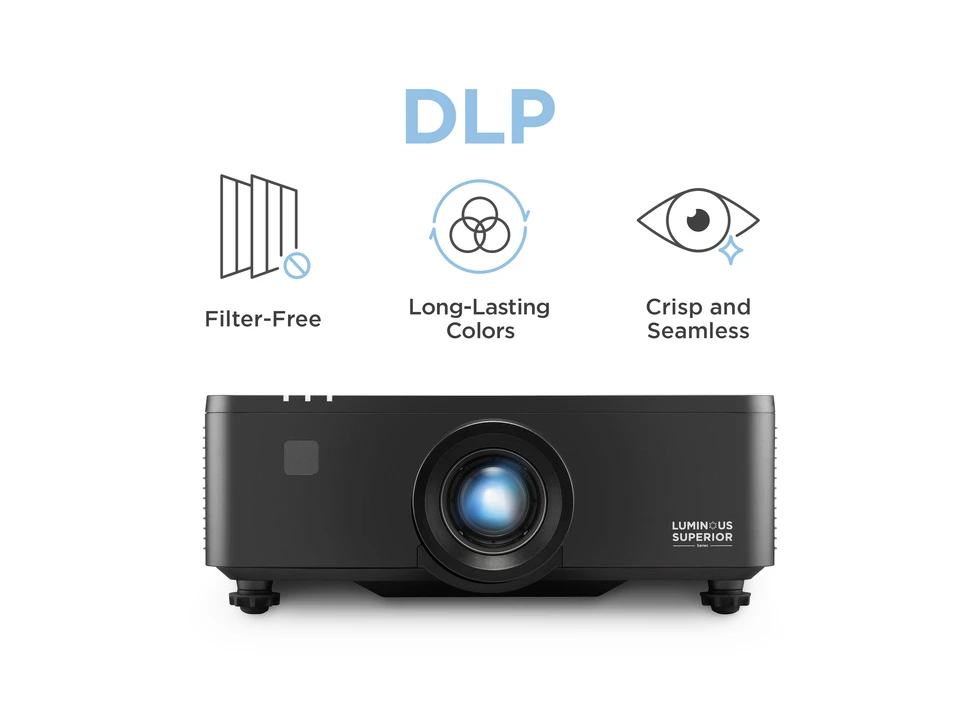

Reliable Long-Term Performance with DLP Projection Technology

With DLP technology, the LS950WU maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Reliable Long-Term Performance with DLP Projection Technology 1

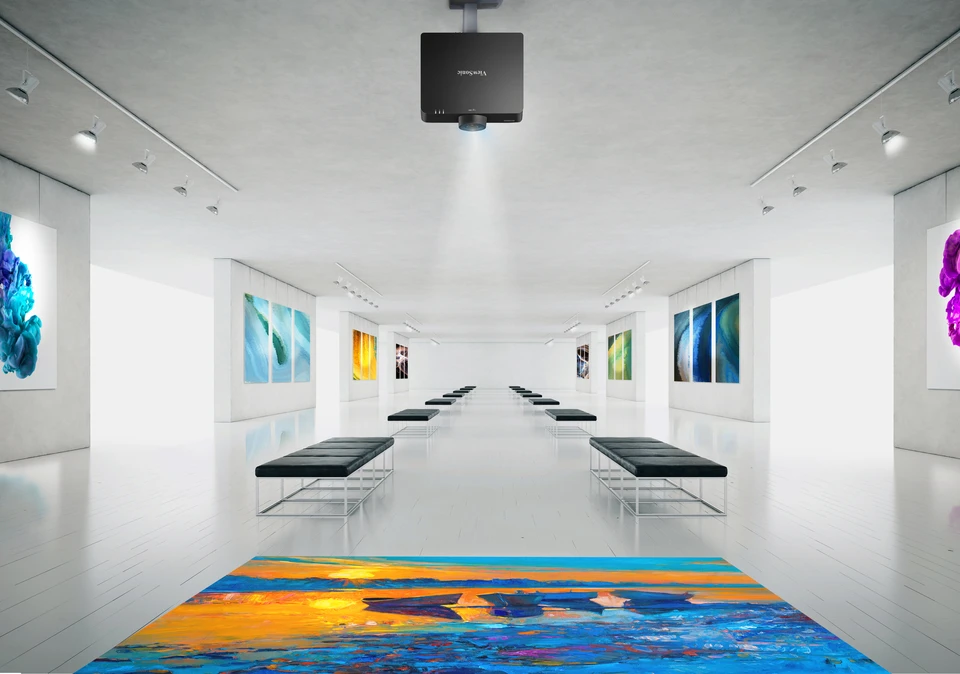

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Versatile Creative Application​s 1

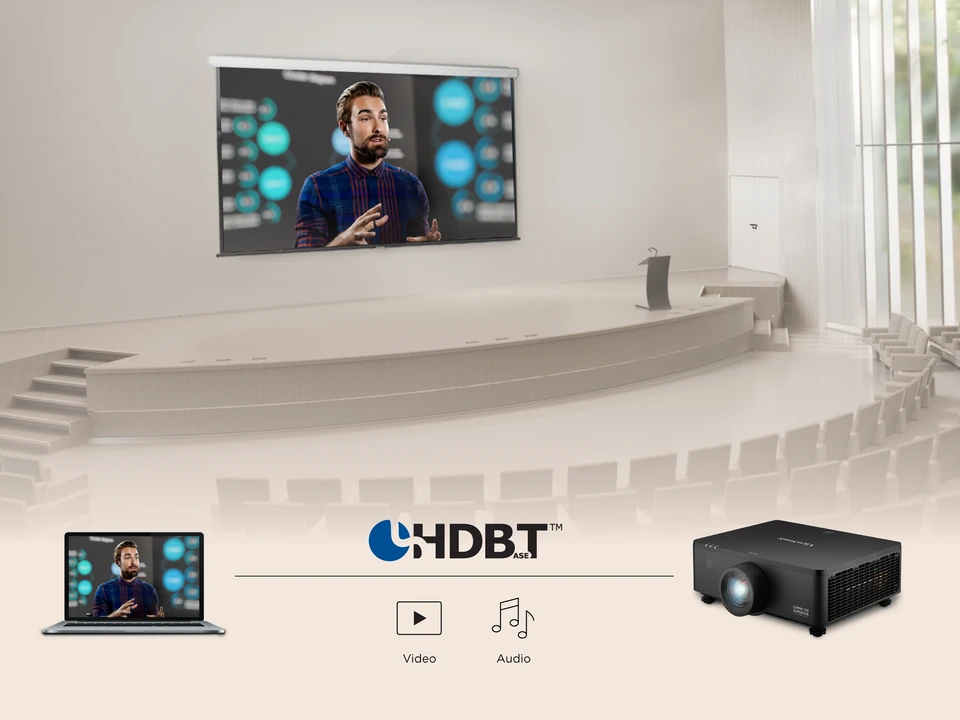

Cost-Effective Long-Distance AV Signal Reception

With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (up to 100m for 1080p) via a single Cat.5e/6 network cable and is compatible with any certified HDBaseT transmitter.
Built-in HDBT Receiver
Cost-Effective Long-Distance AV Signal Reception 1

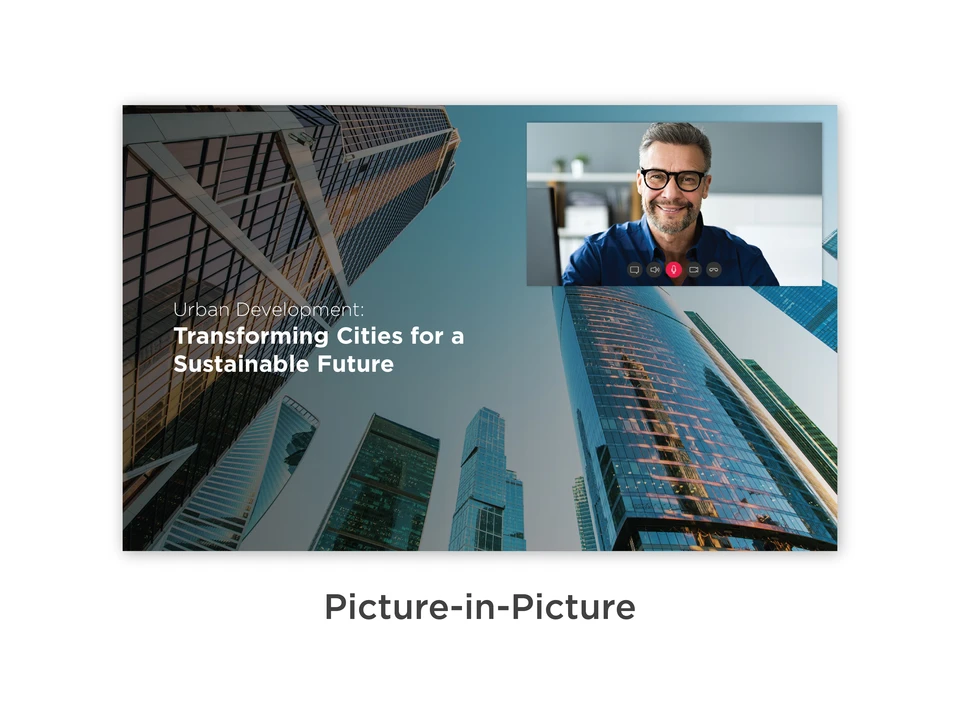

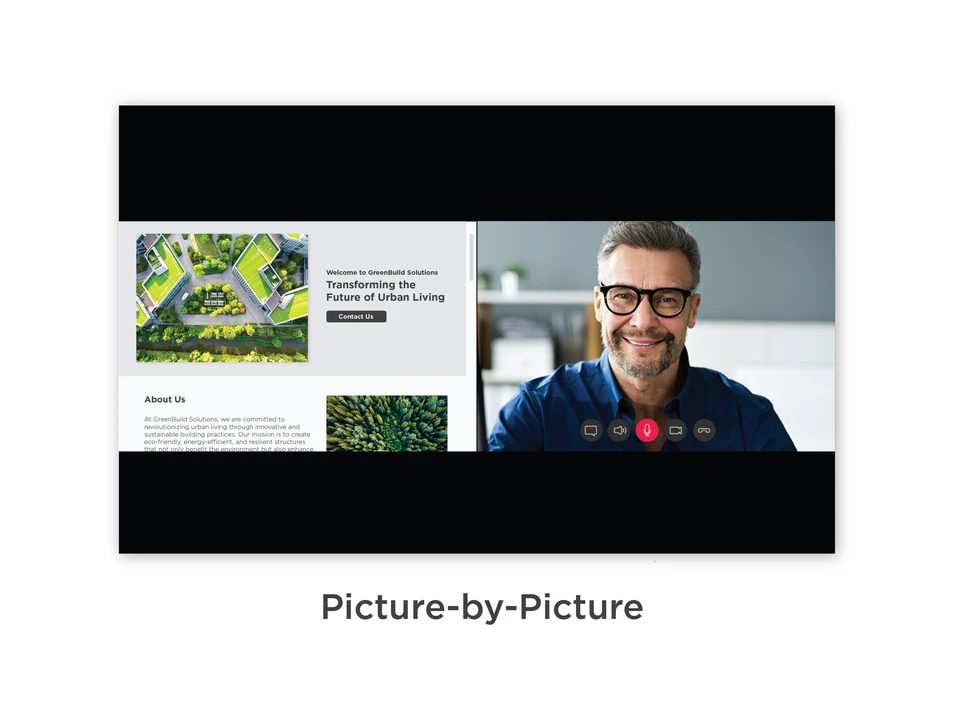

Seamless Collaboration with Split-Screen Modes

Enhance collaborative content sharing with intuitive split-screen capabilities. The projector seamlessly supports Picture-by-Picture (PBP), allowing up to two different inputs, and Picture-in-Picture (PIP), displaying a smaller screen within the main display, in real-time. This creates a dynamic and versatile collaboration experience.
PBP, PIP
Seamless Collaboration with Split-Screen Modes 1 Seamless Collaboration with Split-Screen Modes 2

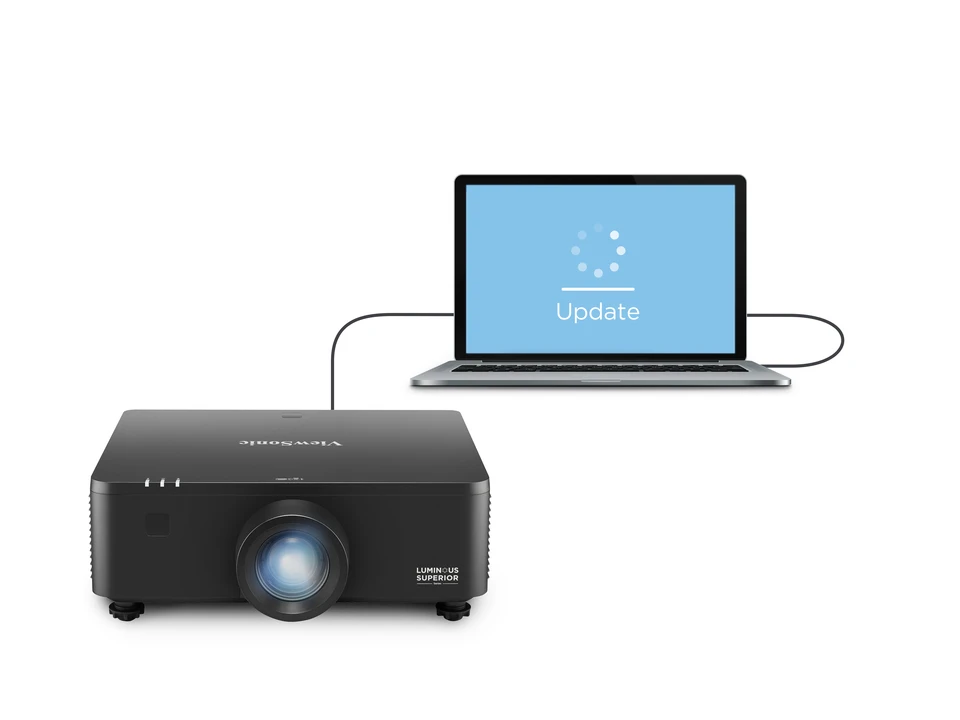

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via a LAN webpage.

*The latest projector software update can be found in the download section at the bottom of the page when available.
A Simpler Way to Update Projector Software 1

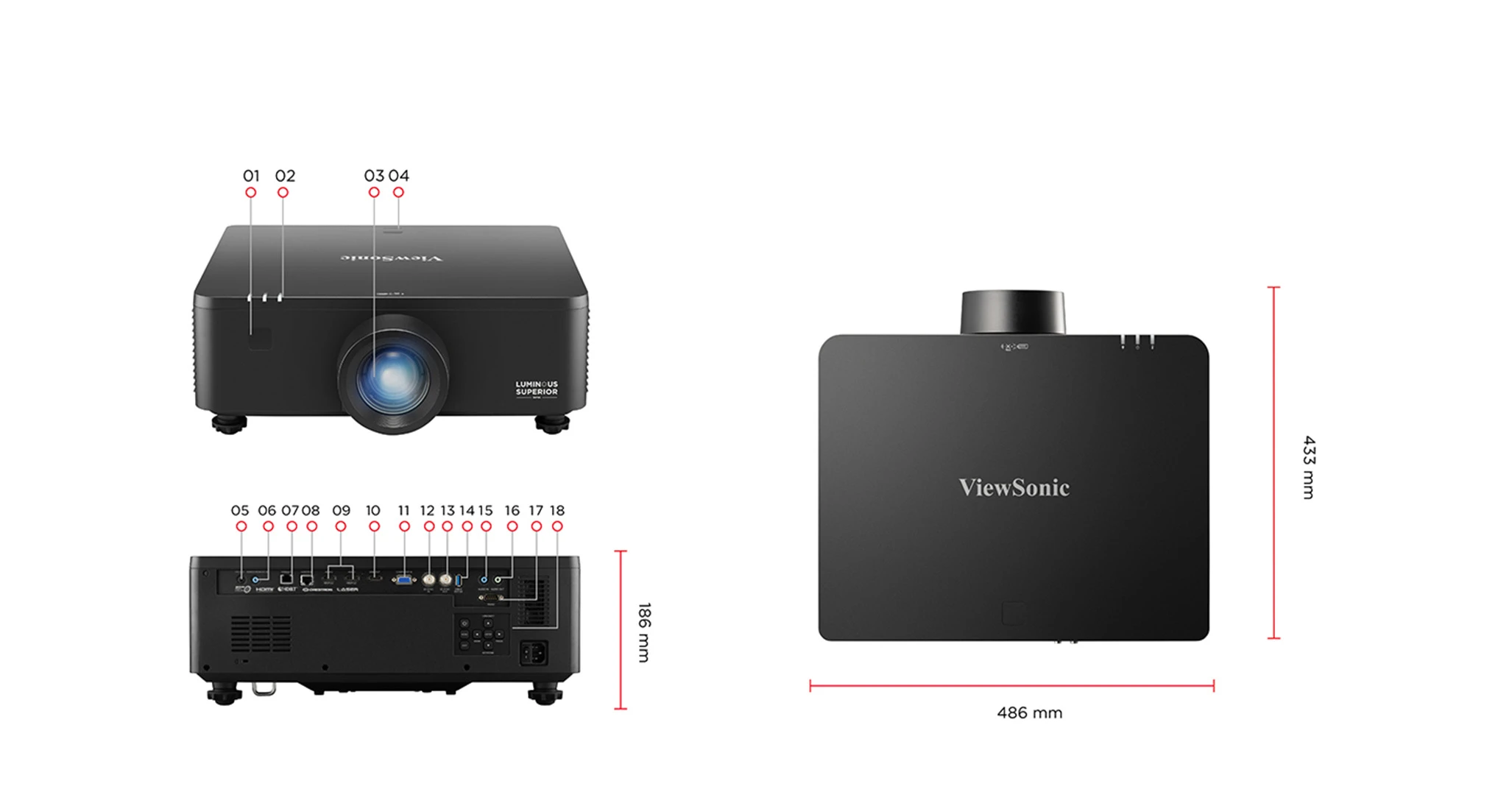

Dimensions & I/O Ports

  1. Front IR
  2. LED Indicator
  3. Lens
  4. Top IR
  5. 12V Trigger
  6. IR In
  7. HDBaseT
  8. RJ-45
  9. HDMI 2.0/HDCP 2.2 x2
  10. HDMI Out
  11. Computer In
  12. 3D Sync In
  13. 3D Sync Out
  14. USB-A (5V/1.5A)
  15. Audio In
  16. Audio Out
  17. RS232
  18. Keypad

SPECIFICATIONS


  • Specification
    Projection System: 0.67" WUXGA
    Native Resolution: 1920x1200
    Brightness: 7100 (ANSI Lumens)
    Brightness (Center Lumens): 7300
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000
    Lens: F=2.0-2.4, f=18.72-29.59mm
    Projection Offset: 0%±10%
    Throw Ratio: 1.25-2.00
    Optical Zoom: 1.6X
    Digital Zoom: 0.5x-4.0x
    Image Size: 50"- 300"
    Throw Distance: 1.33-13.06m
    (100"@2.70m)
    Keystone: H:+/-30° , V:+/-30°
    Lens Shift V. Range: +55%, -55%
    Lens Shift H. Range: +25%, -25%
    Audible Noise (Normal): 32dB
    Audible Noise (Eco) : 30dB
    Input Lag: 19ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K- 135KHz
    Vertical Scan Rate: 23- 120Hz
  • Input
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 2.0/ HDCP 1.4/2.2)
    Audio-in (3.5mm): 1
    3D VESA (Sync): 1 (BNC)
    HDBaseT: 1
    IR In: 1
  • Output
    HDMI out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
    3D SYNC Out: 1

COMPATIBLE WITH LS950WU

WPD-700

ViewShare Wireless Screen Casting Kit

TeamJoin™ TRS10

Computing Engine and Touch Console for Microsoft Teams Rooms

TeamJoin™ TRS10-UB

Computing Engine, Touch Console and Video Bar System for Microsoft Teams Rooms

SUPPORT & DOWNLOADS


Datasheets

LS950WU Datasheet

Technical Document

LS950WU_2D_drawing (pdf)LS950WU_3D_drawing (stp)
