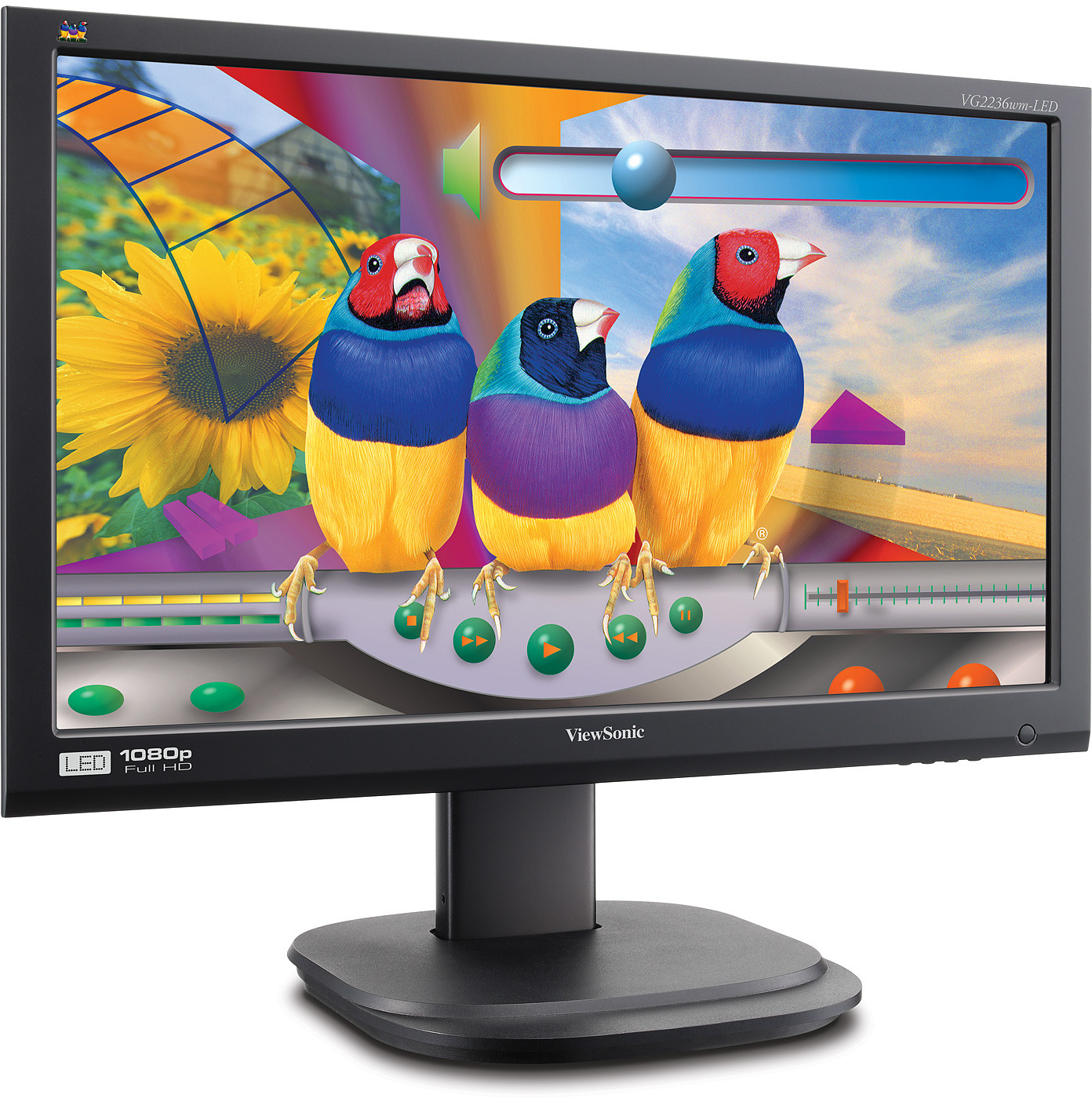

ViewSonic VG2236wm-LED 55cm/21.5" WIDESCREEN LED MONITOR

LCD

Rapport de contraste:	1000:1 (typical)
Angles de vue:	170° (H), 160° (V)
Luminosité:	250cd/m² (typical)
Résolution optimale:	1920×1080
Temps de réponse:	5ms (typical)
Source lumière:	25,000 Hours (min.)
Surface panneau:	Anti-Glare, Hard coating (3H)
Pas de pixel:	0.24825 mm x 0.24825 mm (H×V)
Taille:	55cm/21.5”wide Colour TFT Active Matrix LCD aspect ratio
Rapport de contraste dynamique:	20,000,000:1

COMPATIBILITÉ

Ordinateur: VGA up to 1920x1080 Non Interlaced

Mac®: 1920x1080 Non Interlaced
DIMENSIONS (MM)

Physique (LxHxP): 521.21mm (W) x 427.41 mm (H) x 239.2mm (D)
ENTRéE

Synchronisation: H/V separated (TTL), composite sync-on-green

Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Fréquence: 24–83kHz / 50–75Hz
CONNECTEURS

Analogique: 1×15 pin mini D-sub

Numérique: DVI

Audio: 1 x 3.5 mm

Alimentation: 3-pin plug (CEE22)
ALIMENTATION

Tension: AC 100-240V (Universal); 50/60Hz

Consommation: 22 W (typical)

Mode Economie (W): <= 0.1W

COMMANDES

De base:	[1], [2], power button, Down[▼], Up[▲]
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory Recall

MONTAGE MURAL

100mm× 100mm
ERGONOMIE

Inclinaison: 20˚~-5˚

Rotation horizontale: 360˚

Réglage de la hauteur: 0~135mm

Rotation verticale: 90˚
AUDIO

Haut-parleurs: 2x2W
POIDS

Net: 4.4 Kg (9.7lbs
CONDITIONS D'EXPLOITATION

Humidité: 20 - 90 (%)

Température: 0 - 40 (°C) / 32 - 104 (°F)

Ordinateur:	VGA up to 1920x1080 Non Interlaced
Mac®:	1920x1080 Non Interlaced

Synchronisation:	H/V separated (TTL), composite sync-on-green
Analogique:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Fréquence:	24–83kHz / 50–75Hz

Humidité:	20 - 90 (%)
Température:	0 - 40 (°C) / 32 - 104 (°F)
