Moniteurs LED

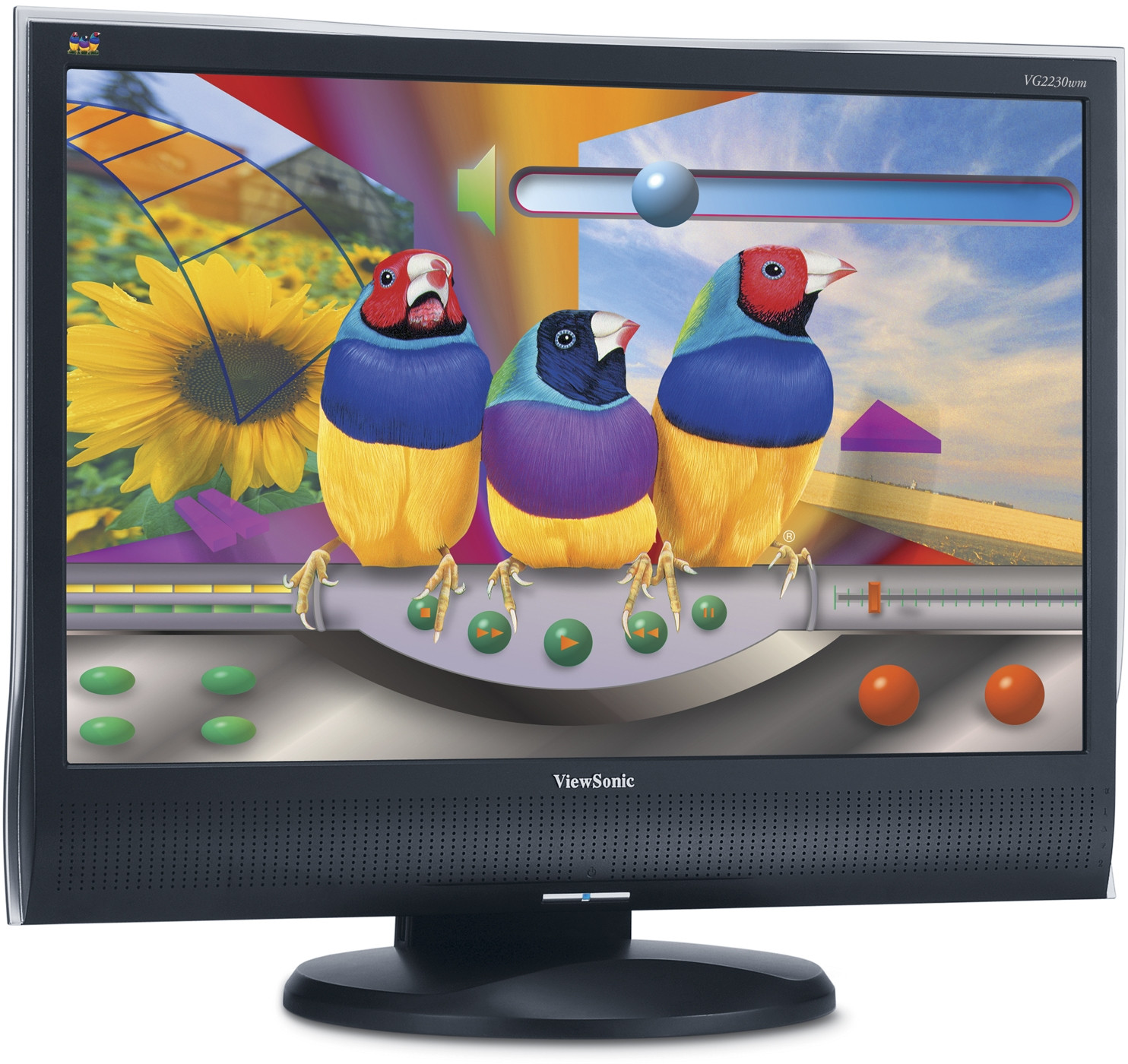

VG2230wm
Clé Caractéristiques
Produit Description
For big performance and even bigger productivity you need a big screen. The ViewSonic VG2230wm features large widescreen multimedia performance for a unique desktop experience. The 56 cm / 22" WIDESCREEN display allows you to view two documents side-by-side or work in two applications simultaneously and the 360° SWIVEL base allows you to share your view with co-workers. The 280cd/m² brightness and high 700:1 contrast ratio produce bright, crisp, detailed images whilst analogue and digital inputs ensure versatile connectivity options. Graphics professionals love the FAST 5MS VIDEO RESPONSE TIME that delivers blur-free, full motion video and crystal clear images. And with ERGONOMIC HEIGHT ADJUSTMENT and tilt, you’ll work comfortably for hours. The VG2230wm widescreen multimedia LCD delivers a complete visual experience to your desktop.
Visitez Nous
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 56 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD Rapport de contraste: 700:1 (typ.) Angles de vue: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Luminosité: 280cd/m² (typ.) Zone d'affichage: 47.6cm horizontal x 29.8cm vertical, 55.9cm diagonal Résolution optimale: 1680 x 1050@60Hz Temps de réponse: 5ms (off-on-off) (typ.) Source lumière: Long life, 60000 hrs. (typ.) Surface panneau: Anti-glare Pas de pixel: 0.282mm Prise en charge des couleurs: 16.7M colours (6-bit + 2-bit FRC) Horloge pixel: 165MHz -
COMPATIBILITÉ
Ordinateur: VGA up to 1680 x 1050 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced -
DIMENSIONS (MM)
Physique avec support: 519 x 436-571 x 250 Physique sans support: 519 x 392 x 60 Emballage (LxHxP): 570 x 530 x 300 -
CONTENU DE L'EMBALLAGE
LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) -
AUDIO
Haut-parleurs: 2 x 2 watt integrated stereo speakers -
CONNECTEURS
Analogique: 15-pin mini D-sub (detachable cable) Numérique: 24-pin DVI-D (detachable cable) Alimentation: 3-pin AC plug (CEE22) Audio: 3.5mm stereo audio line-in -
ALIMENTATION
Tension: AC 100– 240V, 50/60Hz (auto switch), internal power supply Consommation: 43 watt (typ.), <1 watt in power save mode -
COMMANDES
De base: Power, menu [1], up, down, select [2], mute, volume up/down OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), audio adjust (volume, mute), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution
notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
CONDITIONS D'EXPLOITATION
Température: 0°C – 40°C Humidité: 10% – 90% (non-condensation) -
POIDS
Net avec support: 6.6kg Brut: 8.6kg -
ENTRéE VIDéO
Fréquence: Fh: 24~82kHz, Fv: 50~85Hz Synchronisation: H/V separated (TTL) Analogique: RGB analogue (0.7 Vp-p , 75 ohms) Numérique: DVI-D (TMDS, 100 ohm) -
GESTION ALIMENTATION
Meets TCO’03 and ENERGY STAR® standards -
SÉCURITÉ
Kensington® security port -
MONTAGE MURAL
VESA FDMI 100mm x 100mm -
ERGONOMIE
Inclinaison: Down 5°, Up 20° Rotation horizontale: 360° swivel base Réglage de la hauteur: 0~ 135mm
