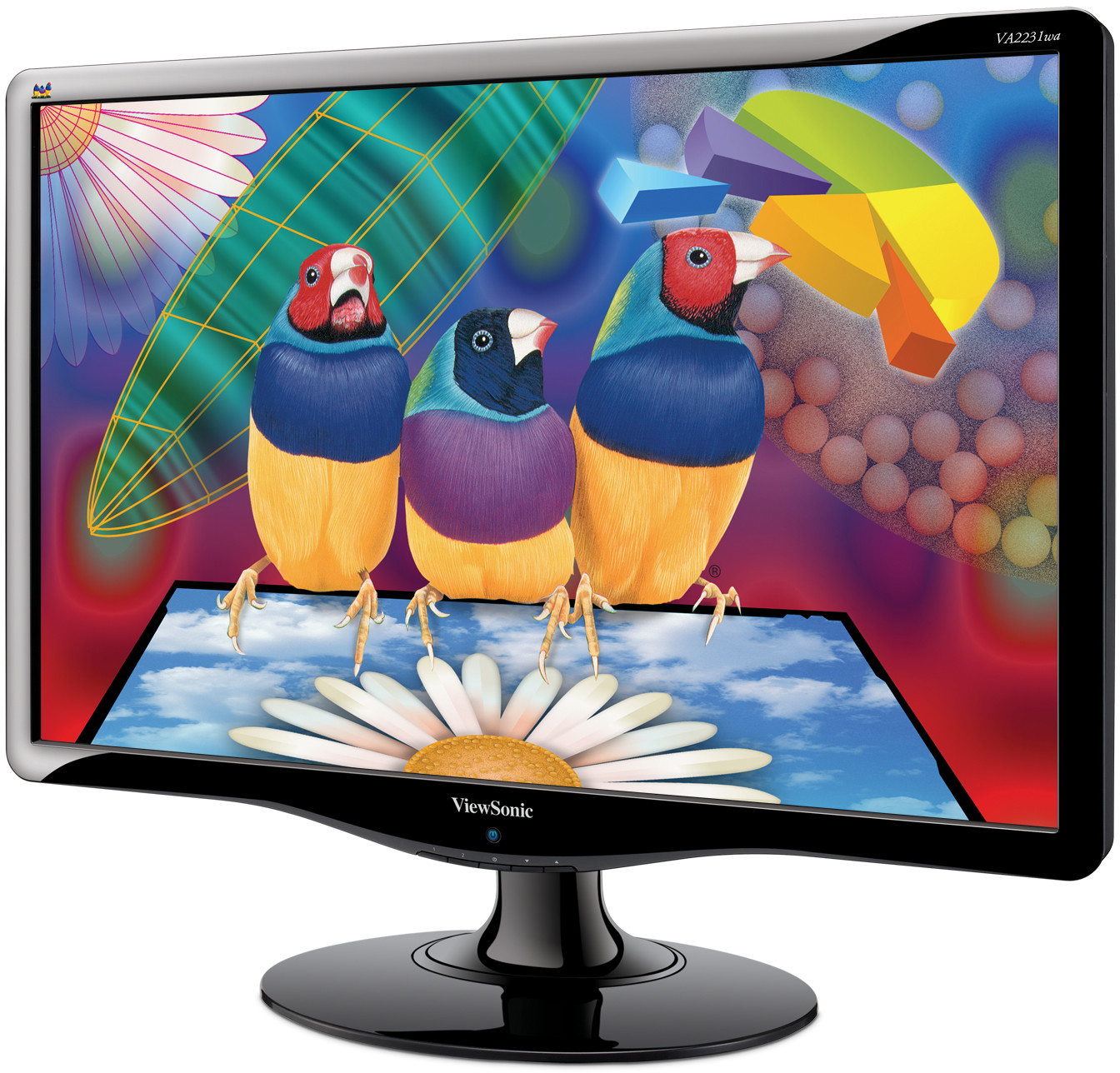

ViewSonic VA2231wa 55cm/21.5" VALUE SERIES WIDESCREEN LCD DISPLAY

LCD

Rapport de contraste:	1,000:1
Angles de vue:	170° (H), 160° (V)
Résolution optimale:	1920 × 1080
Temps de réponse:	5ms Typical
Source lumière:	50,000 hrs typical
Surface panneau:	Anti-Glare, Hard coating(3H)
Pas de pixel:	0.24825 × 0.24825 (mm)
Prise en charge des couleurs:	16.7 Millions
Taille:	55cm/21.5" Wide Color a-Si TFT Active Matrix LCD 16:9 aspect ratio
Luminosité:	300 Typical
Rapport de contraste dynamique:	100,000:1

COMPATIBILITÉ

Ordinateur: VGA up to 1920 × 1080 Non Interlaced

Mac®: 1920 × 1080 Non Interlaced
DIMENSIONS (MM)

Physique (LxHxP): 513 × 389 × 64 (mm) / 20.2 × 17.3 × 5.4 (in)
ENTRéE

Synchronisation: Separate

Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Fréquence: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA)
CONNECTEURS

Alimentation: Built-in power Adapter, 3-Pin plug

Analogique: 1×15 pin mini D-sub
ALIMENTATION

Tension: AC 100-240V (Universal); 50/60Hz(Switch)

Consommation: 40 Typical

Mode Economie: ≦0.2W

COMMANDES

De base:	[1], [2], Power, Down[▼], Up[▲]
On View (mode PC):	Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B] Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory Recall

MONTAGE MURAL

100mm × 100mm
ERGONOMICS

20~-5 degrees
POIDS

Net: 3.8kg / 8.4lbs
CONDITIONS D'EXPLOITATION

Humidité: 10 - 90 (%)

Température: 0 - 40 (°C) / 32 - 104 (°F)

Ordinateur:	VGA up to 1920 × 1080 Non Interlaced
Mac®:	1920 × 1080 Non Interlaced

Alimentation:	Built-in power Adapter, 3-Pin plug
Analogique:	1×15 pin mini D-sub

Humidité:	10 - 90 (%)
Température:	0 - 40 (°C) / 32 - 104 (°F)
