Clé Caractéristiques

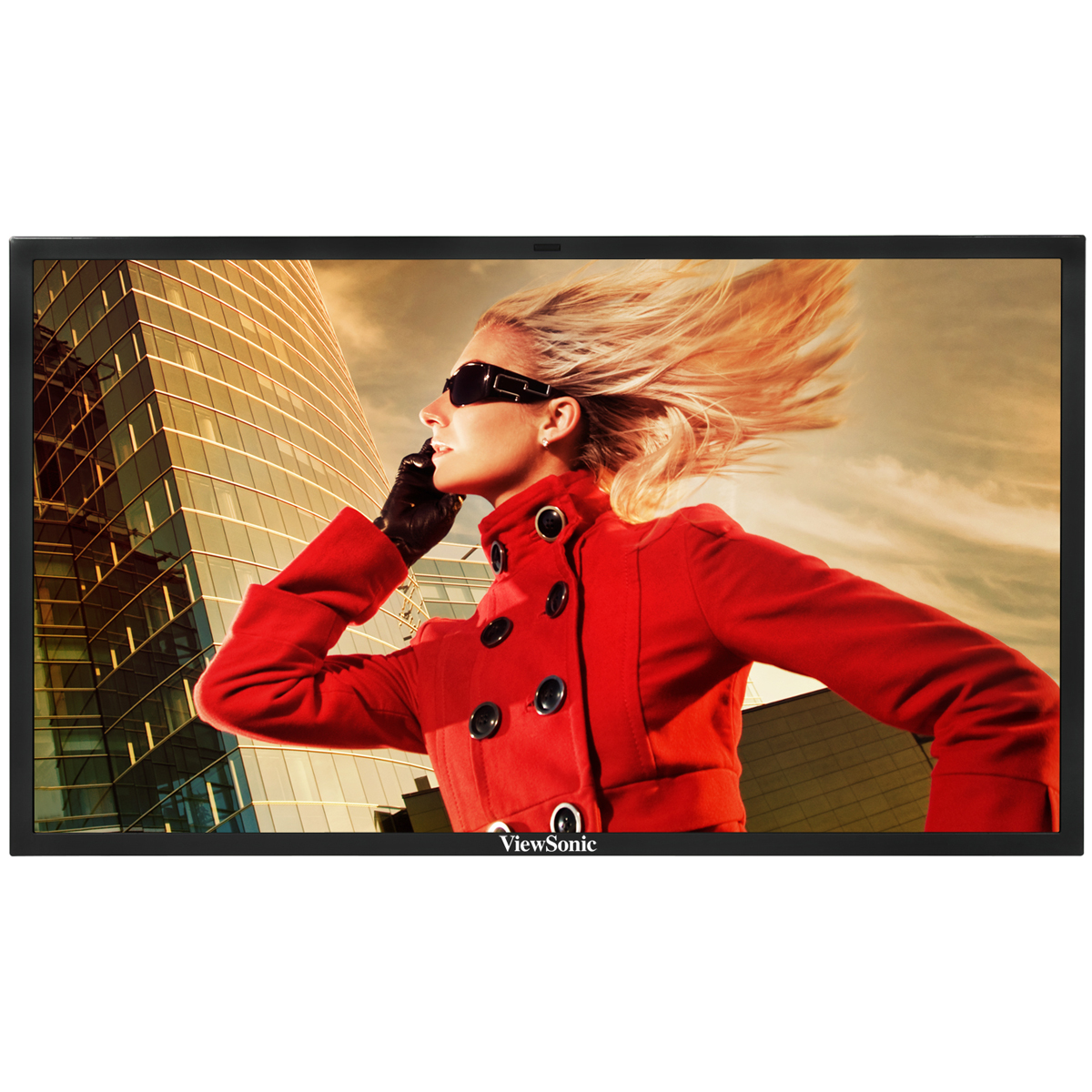

CDP6530
Produit Description
ViewSonic’s new CDP6530 full HD commercial display with 1920x1080p, 500 nits (typ) panel with 20,000:1 dynamic contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, YPbPr (BNC) with built in 12Wx2 speakers and 12Wx2 speaker output connections. The CDP6530 can be used to make up to a 10x10 display video wall applications and automatic scheduler. RS232 daisy chain and DDC/CI is also provided for remote control. VGA and composite video output is also provided for video loop through applications.
Visitez Nous
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 65" (64.6" viewable) color TFT active matrix, wide LCD
    Rapport de contraste: 5000:1 (typ)
    Angles de vue: 178º horizontal, 178º vertical
    Luminosité: 500 cd/m2 (typ)
    Zone d'affichage: 56.2" horizontal x 31.6" vertical; 64.6" diagonal
    Résolution optimale: 1920x1080, 600mm dot pitch
    Temps de réponse: 8ms
    Source lumière: Long life, 50,000 hrs. (typ)
    Rapport largeur/hauteur: 16:9
    Surface panneau: Anti-glare, hard coating (3H)
  • DIMENSIONS (MM)
    Physique (LxHxP): 59.3" x 35.4" x 5.3" (W x H x D) (1500mm x 900mm x 136mm)
  • CONTENU DE L'EMBALLAGE
    LCD display, power cable, remote control with batteries,
    User Guide CD
  • AUDIO
    Amplificateur: 12-watt / 8 ohm
  • ENTRéE
    Entrée vidéo: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
    Sortie vidéo: VGA, component, DVI (Loop through)
    Control Input/Output: RS-232
  • SIGNAL D'ENTRéE
    Comp. TV/Vidéo: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTEURS
    Numérique: HDMI, DVI, S-video YPbPr, CVBS
    Alimentation: 3-pin plug
    Analogique: 15-pin mini D-sub (VGA)
  • ALIMENTATION
    Tension: AC 100–240V (universal), 50–60Hz
    Consommation: 520W (typ)
  • COMMANDES
    Photo: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Panneau frontal: Power, Exit, +, –, Menu/Enter
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
    Audio: Volume, mute, audio source
  • ACCESSOIRES DISPONIBLES EN OPTION
    Stand (optional), Wall Mount (WMK-013),
    Wall Mount with Locking Media Player Cradle (WMK-028)
  • MONTAGE MURAL
    VESA 200mm x 400mm, 400mm x 400mm
  • POIDS
    Brut: 176.4 lb. (80.0 kg)
    Net: 154.3 lb. (70.0 kg)
  • CONDITIONS D'EXPLOITATION
    Humidité: 20–90% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
  • AUDIO OUT
    Speakers: Internal 12-watt (x2)
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please
    dispose of in accordance with local, state or federal laws.
  • RéSOLUTION
    640 x 480 at 60 Hz to 75 Hz
    800 x 600 at 60 Hz, 60Hz to 75 Hz
    1024 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 768 at 60 Hz, 60Hz to 75 Hz
    1360 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 1024 at 60Hz
    1600 x 1200 at 60 Hz
    1920 x 1080 at 60Hz (recommended resolution)
    NTSC, SECAM, 4.43 NTSC
    Component: 480i,480p,720p,1080i,1080p
