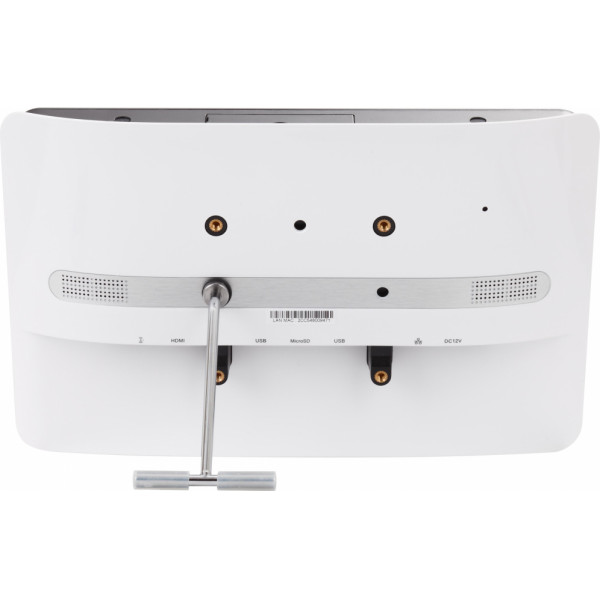

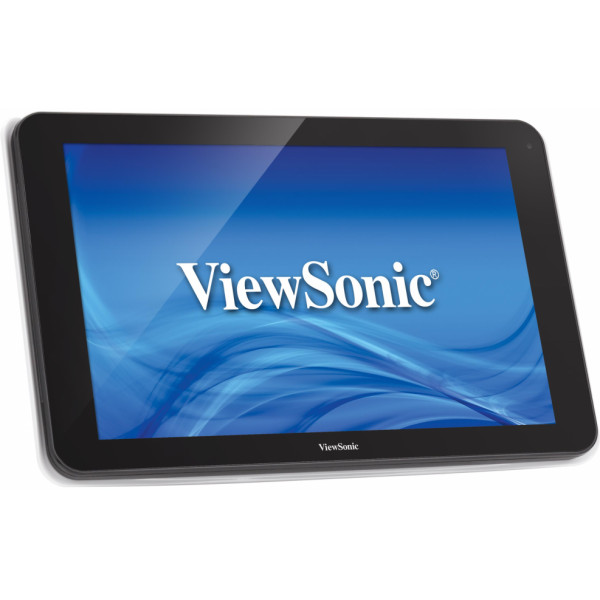

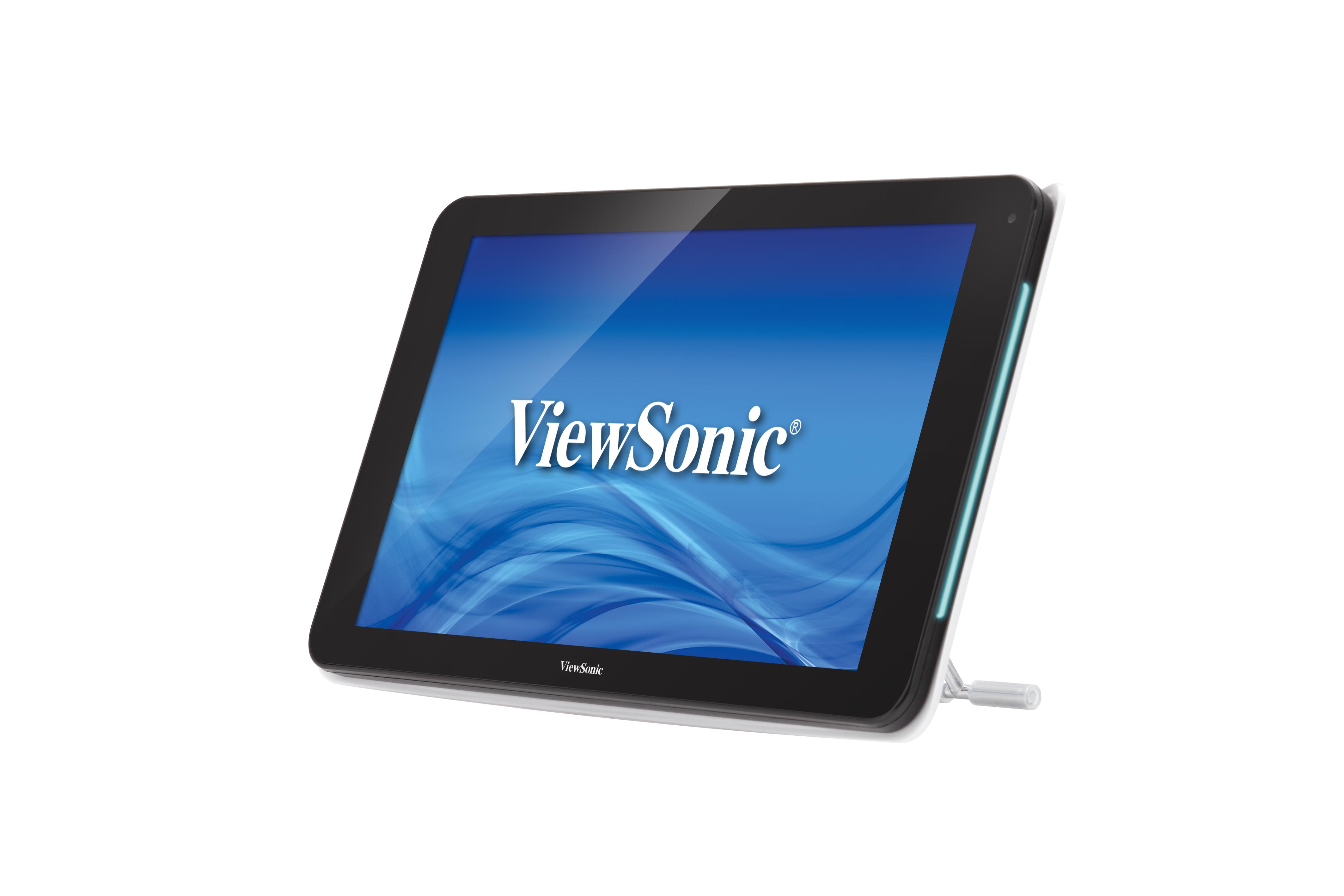

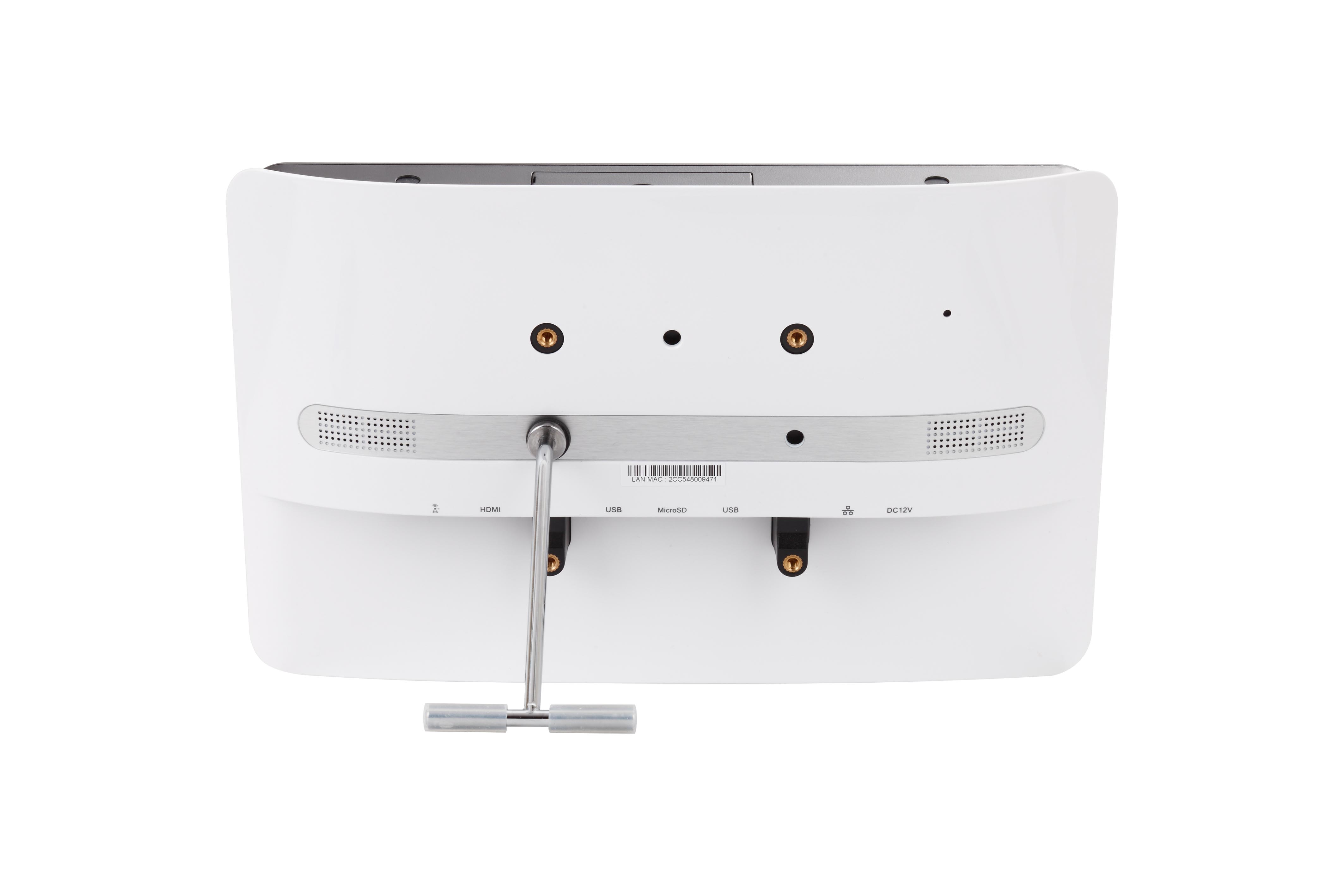

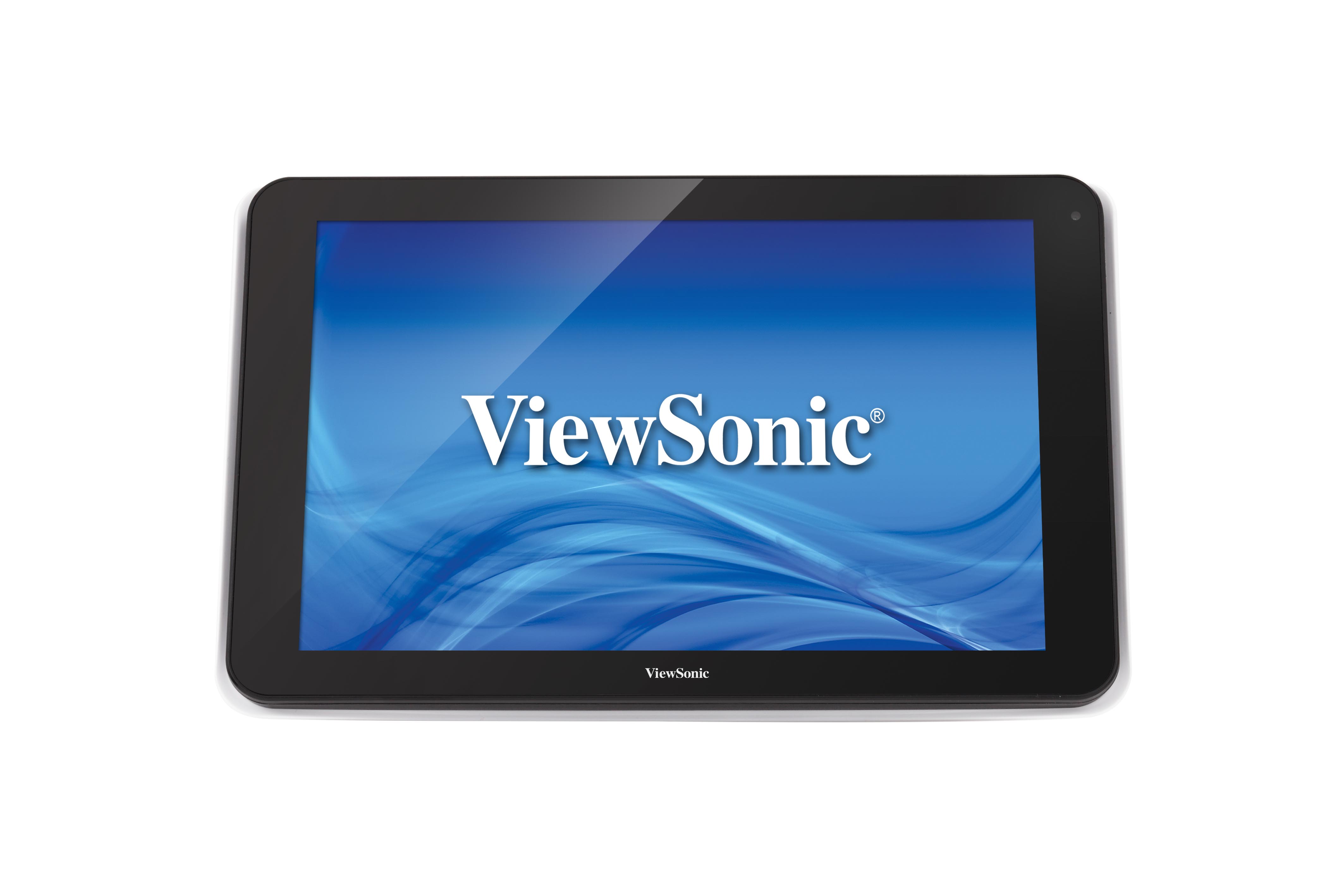

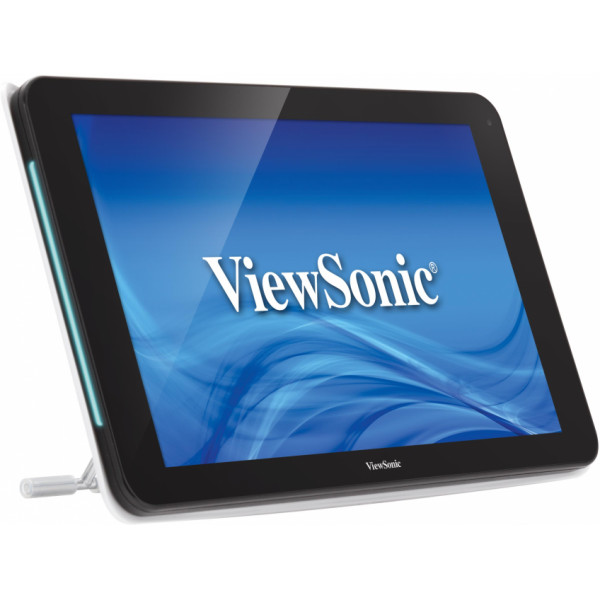

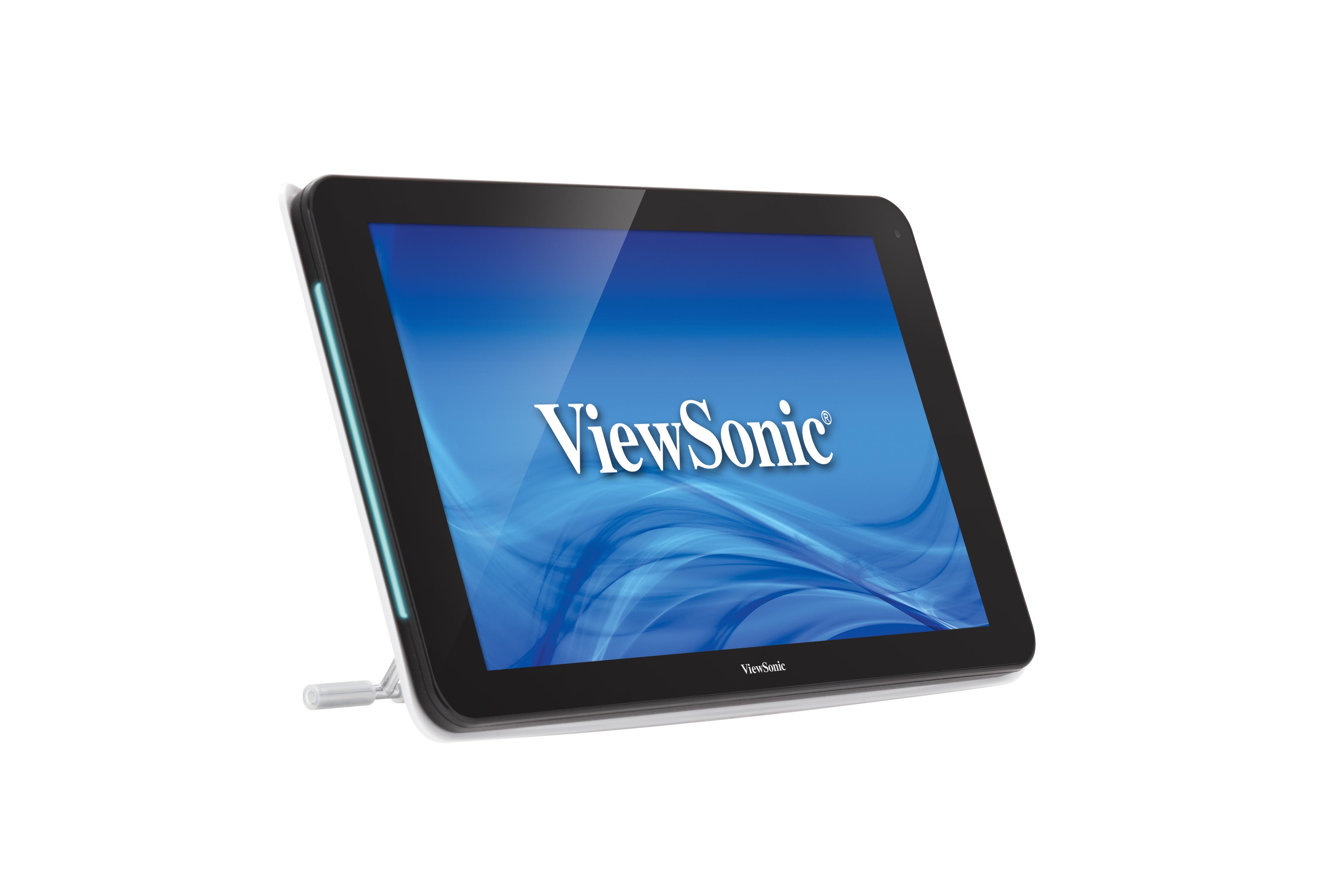

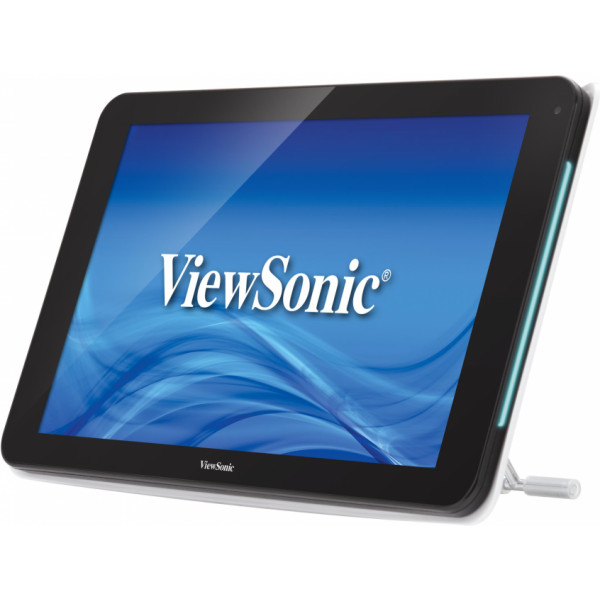

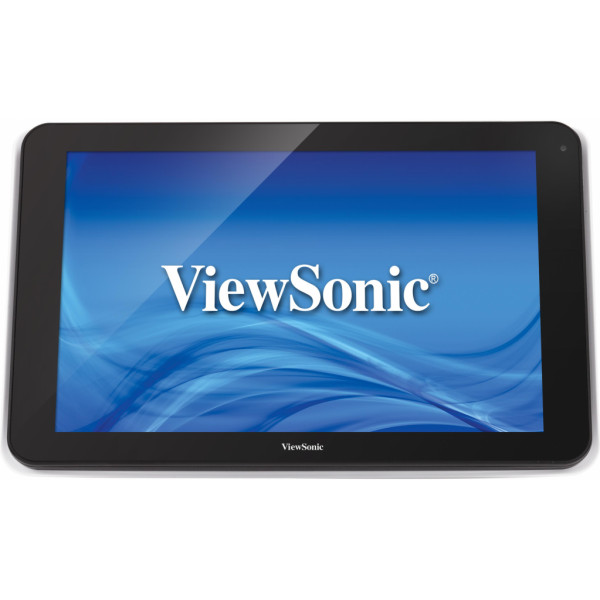

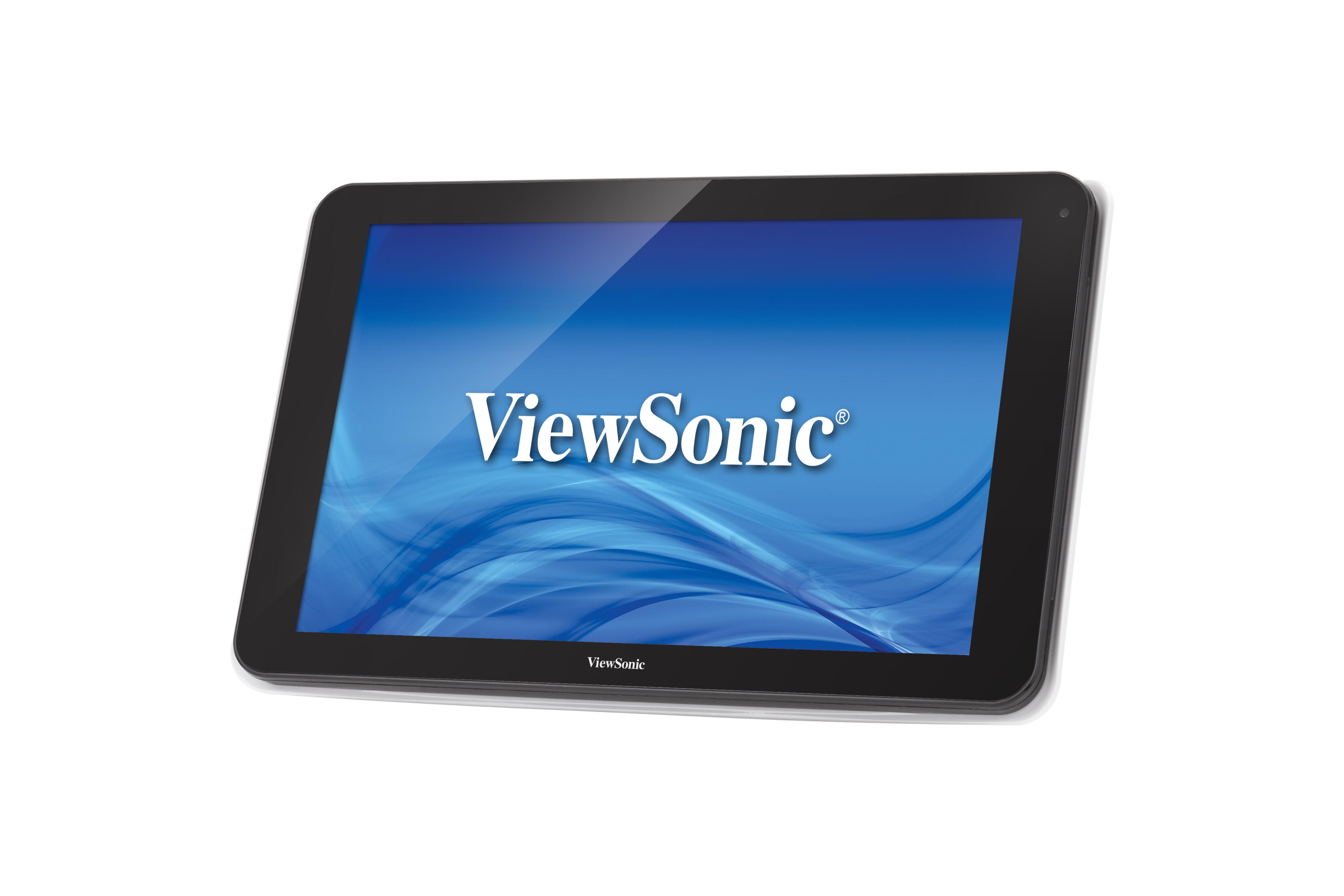

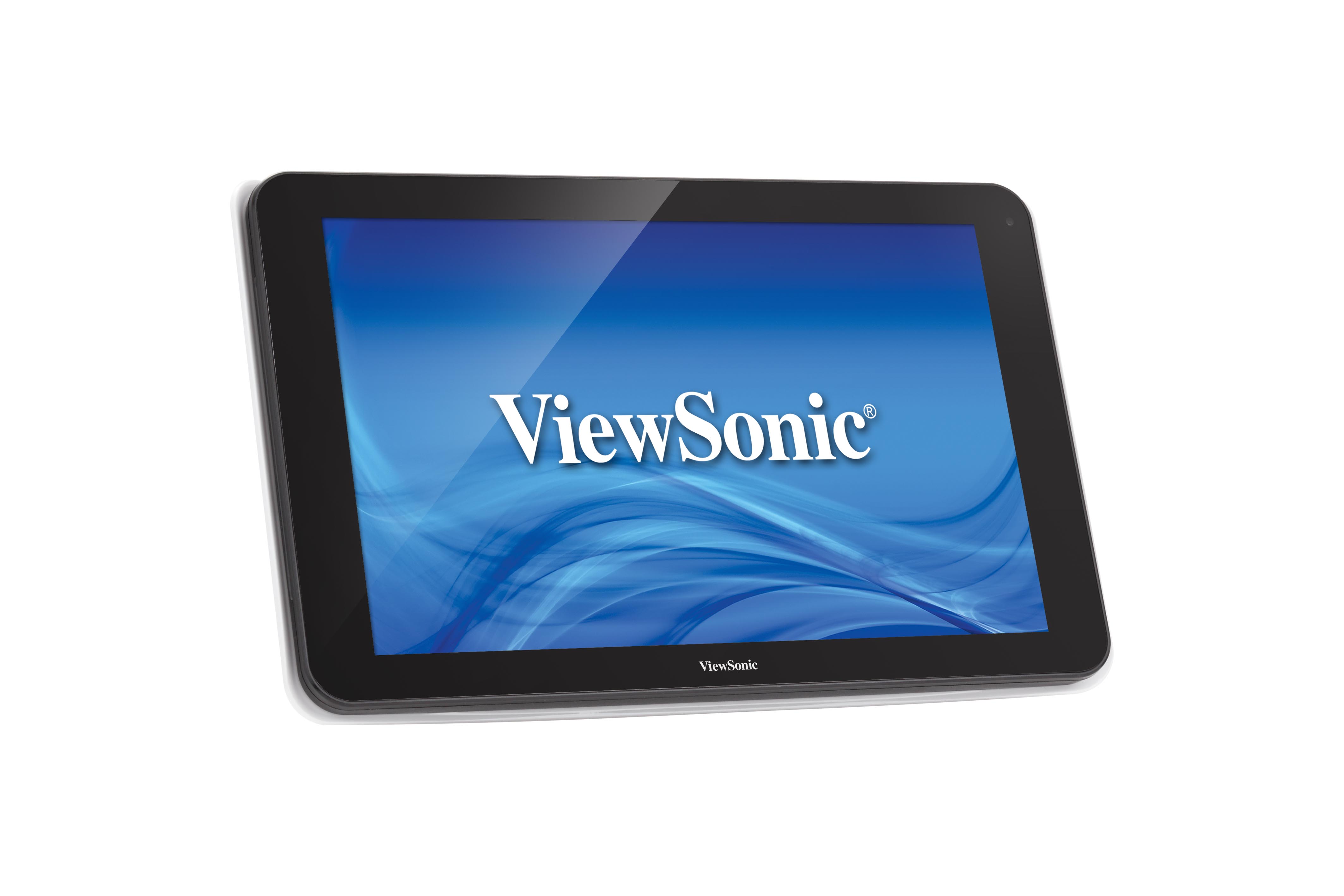

EP1042T

10” (10.1” viewable) All-in-one touch digital ePoster

SPECIFICATION
Taille de l'écran: 10" (10.1'' diagonal)
Type/ Technologie: TFT LCD Module with LED Backlight
Surface d'affichage (mm): 216.96(W) x 135.6(H)
Rapport d'aspect: 16:10
Résolution: 1280 x 800
Colors: 262K Color
Luminosité: 300 nits (typ.)
Rapport de contraste: 800:1 (typ.)
Temps de réponse: 25 ms
Angles de visualisation: Top = 85, Bottom = 85, Left = 85, Right = 85 (typ.)
Backlight: LED
Durée de vie du rétroéclairage: 10,000 Hours (typ.)
TOUCH
Type/ Technologie: Capacitive
Résolution tactile: 1280x800
Point de contact: 10 point for gesture

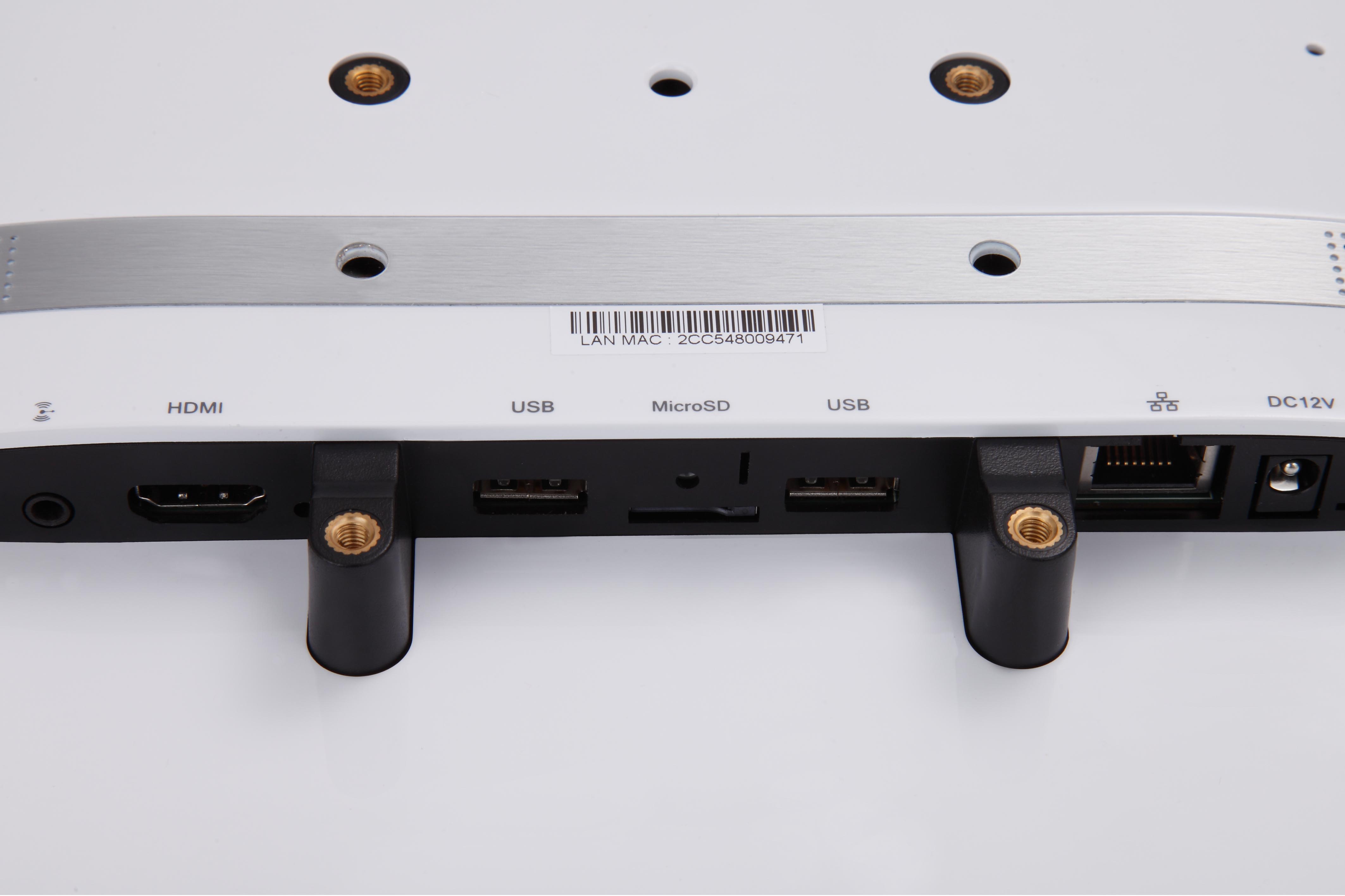

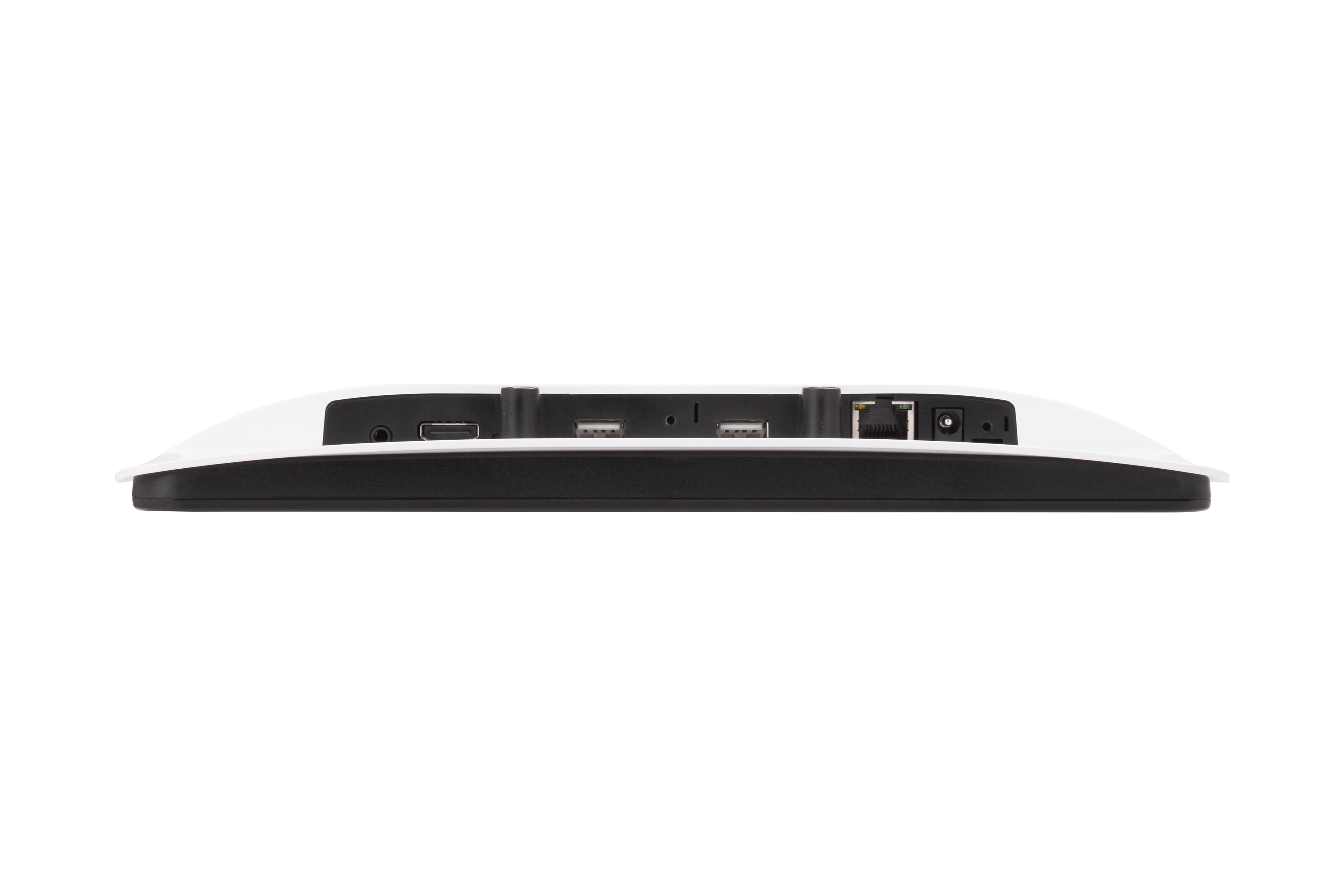

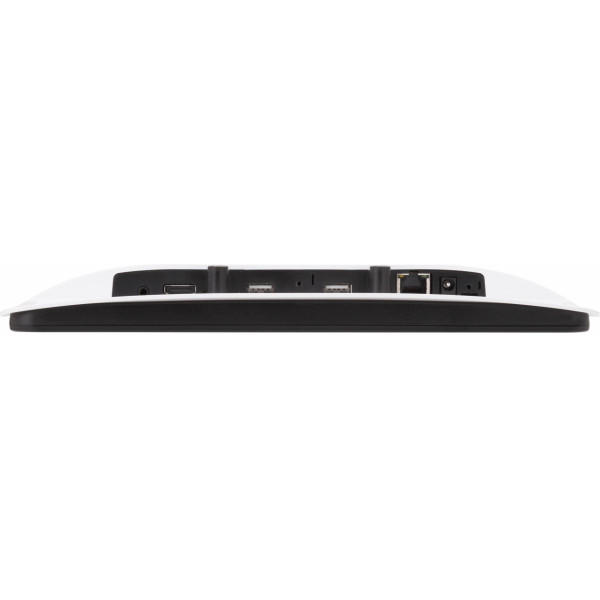

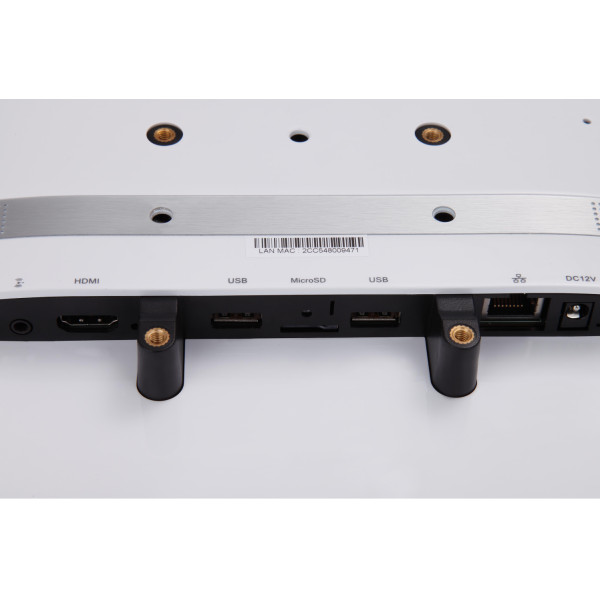

INPUT
Audio: x1 (3.5mm jack)
CARTE SD/SDHC: Micro SD (Up to 32GB)

LAN
RJ45: x1 (10M/100M BASE-T, PoE 13W)
USB
Type A: x2 (USB2.0)
Micro USB: x1
CAMERA
2M Pixel
HAUT-PARLEURS
2W x2
BUILT IN PLAYER
OS: Android 4.4
Processeur: Rockchip RK3188
Stockage: 1GB DDR3-1600 SDRAM
Graphic: ARM Mali400 MP4
Stockage: 8GB
HDMI (1080p): Up to 1080p @ 50/60Hz

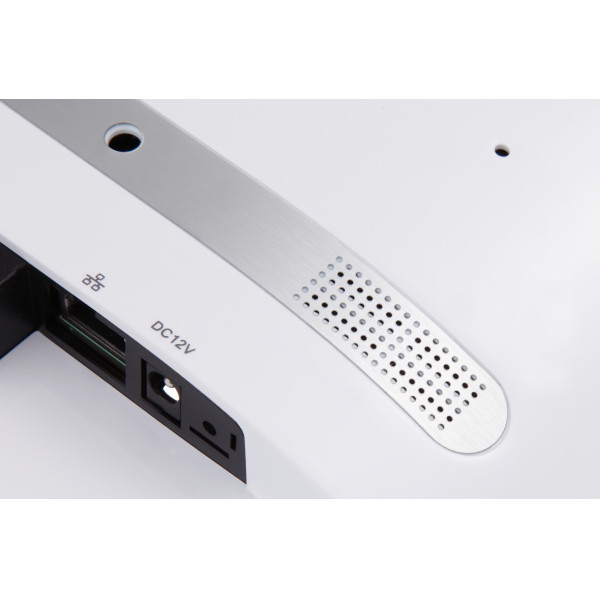

POWER
Tension: 100-240VAC +/- 10% Wide Range
Consommation: 13.5W (Max)
ERGONOMICS
Montage mural (VESA® ): 75 x 75mm
OPERATING CONDITIONS
Température (º C): 32°F to 104°F (0°C to 40°C)
Humidité: 30% ~ 80% non-condensing
DIMENSIONS (L x H x P)
Physique (pouces / mm): 269.88 x 170 x 28.5 mm / 10.62 x 6.69 x 1.12 in.
Emballage (pouces / mm): 336 x 100 x 227 mm / 13.2 x 3.93 x 8.93 in.
WEIGHT
Net (lb / kg): 0.727 kgs / 1.6 lbs
Brut (lb / kg): 2.245 kgs / 4.95 lbs
What's in the box?
1. AC Adapter
2. Power plug x 1 (US/EU/AU/UK)
3. Power and Micro SD card brackets

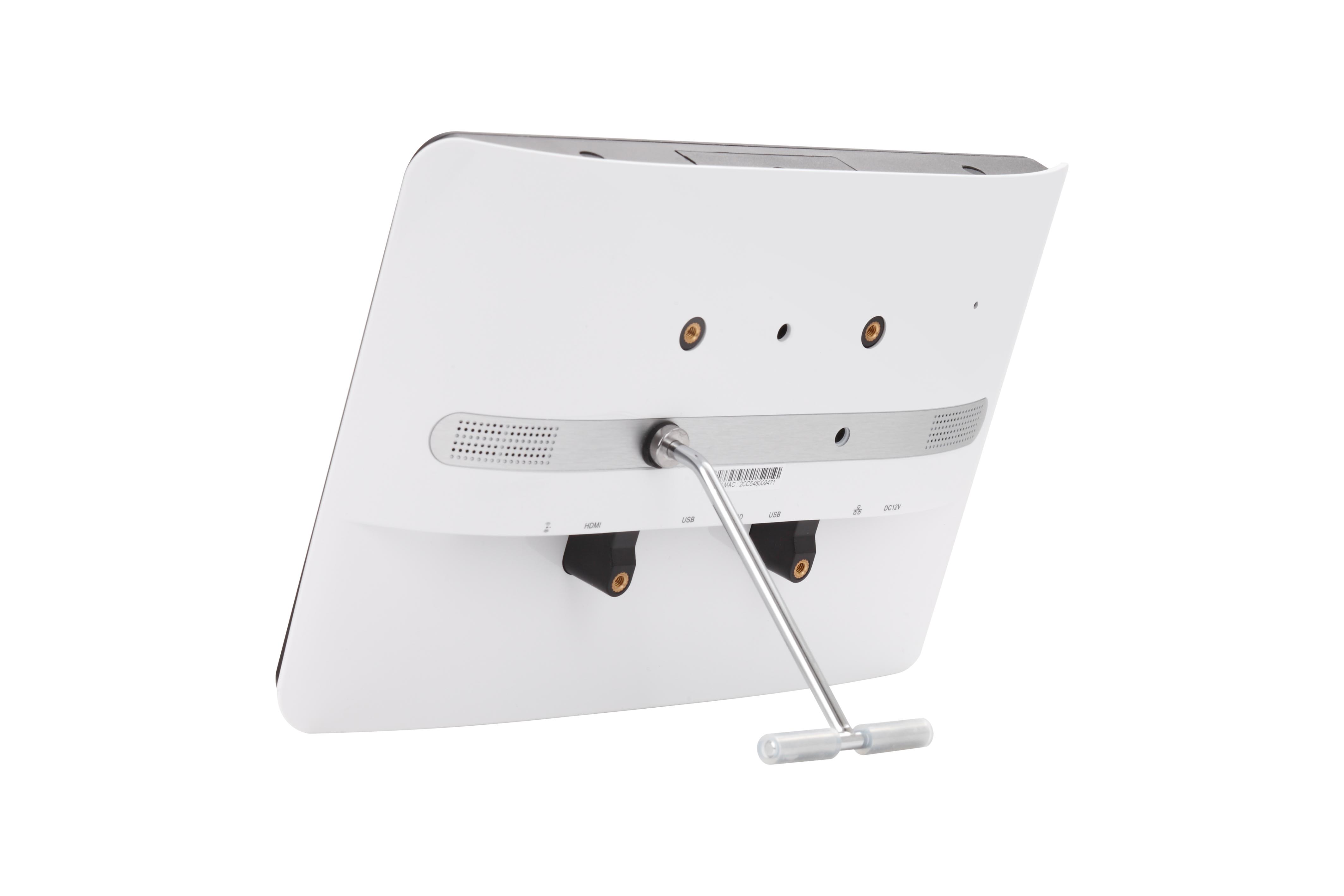

4. Display stand
5. Hardware Quick Start Guide
6. Software Quick Start Guide
7. Documentation CD (UG, QSG, Signage Manager software)

*Actual content may differ from market to market
