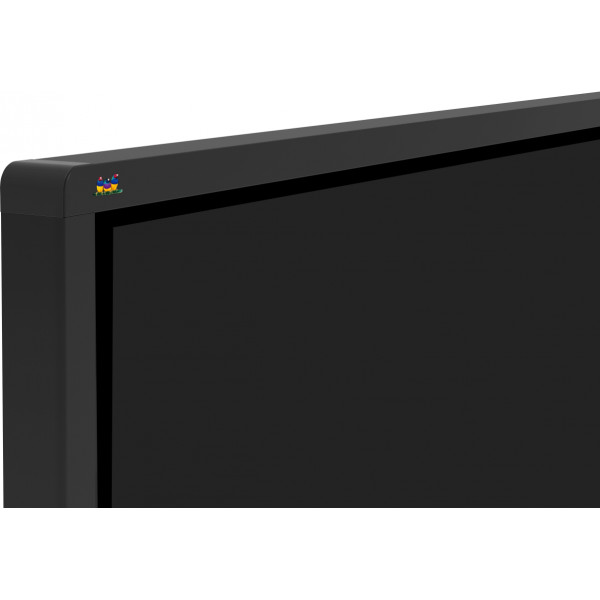

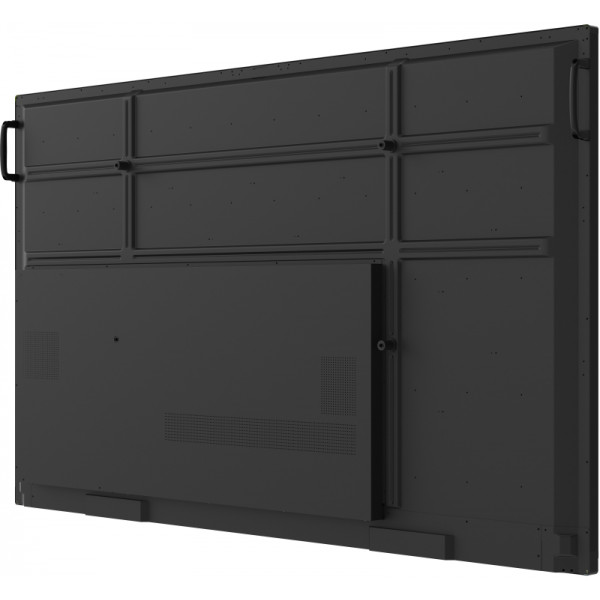

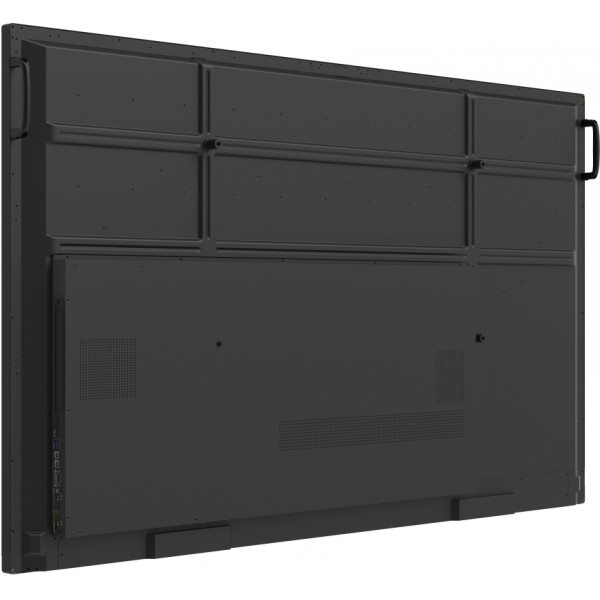

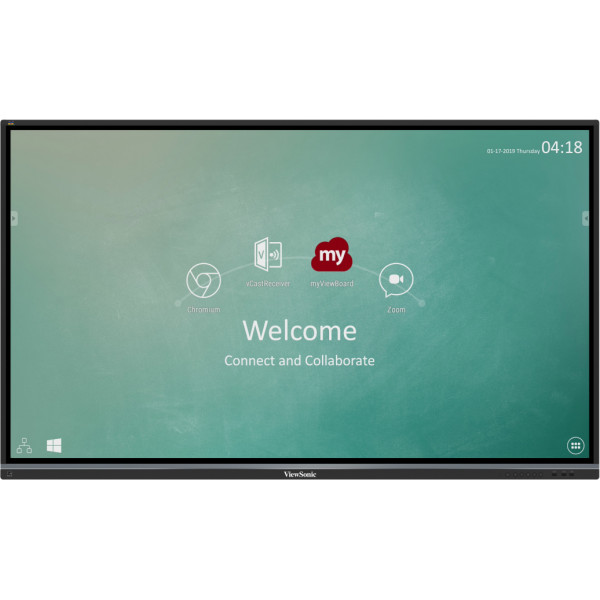

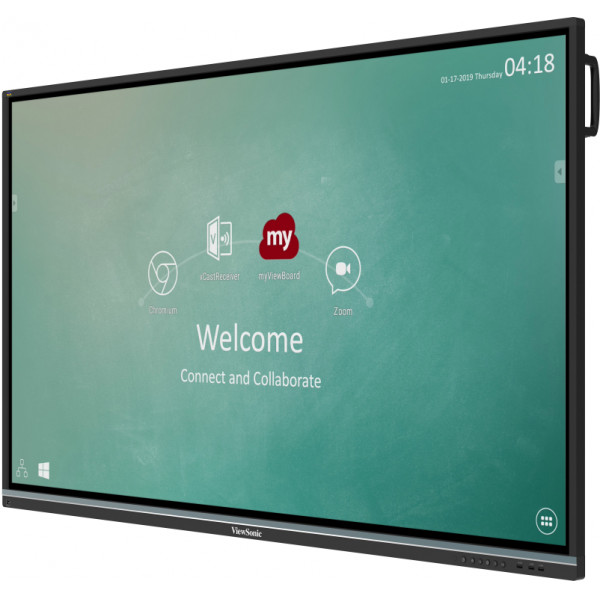

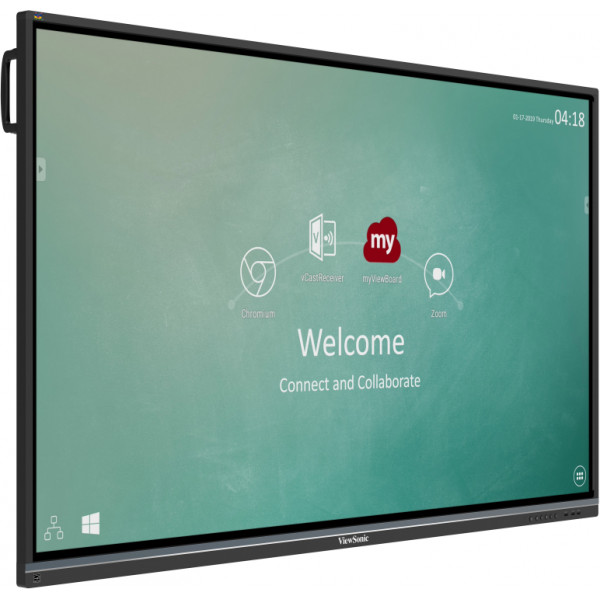

IFP7550-2EP

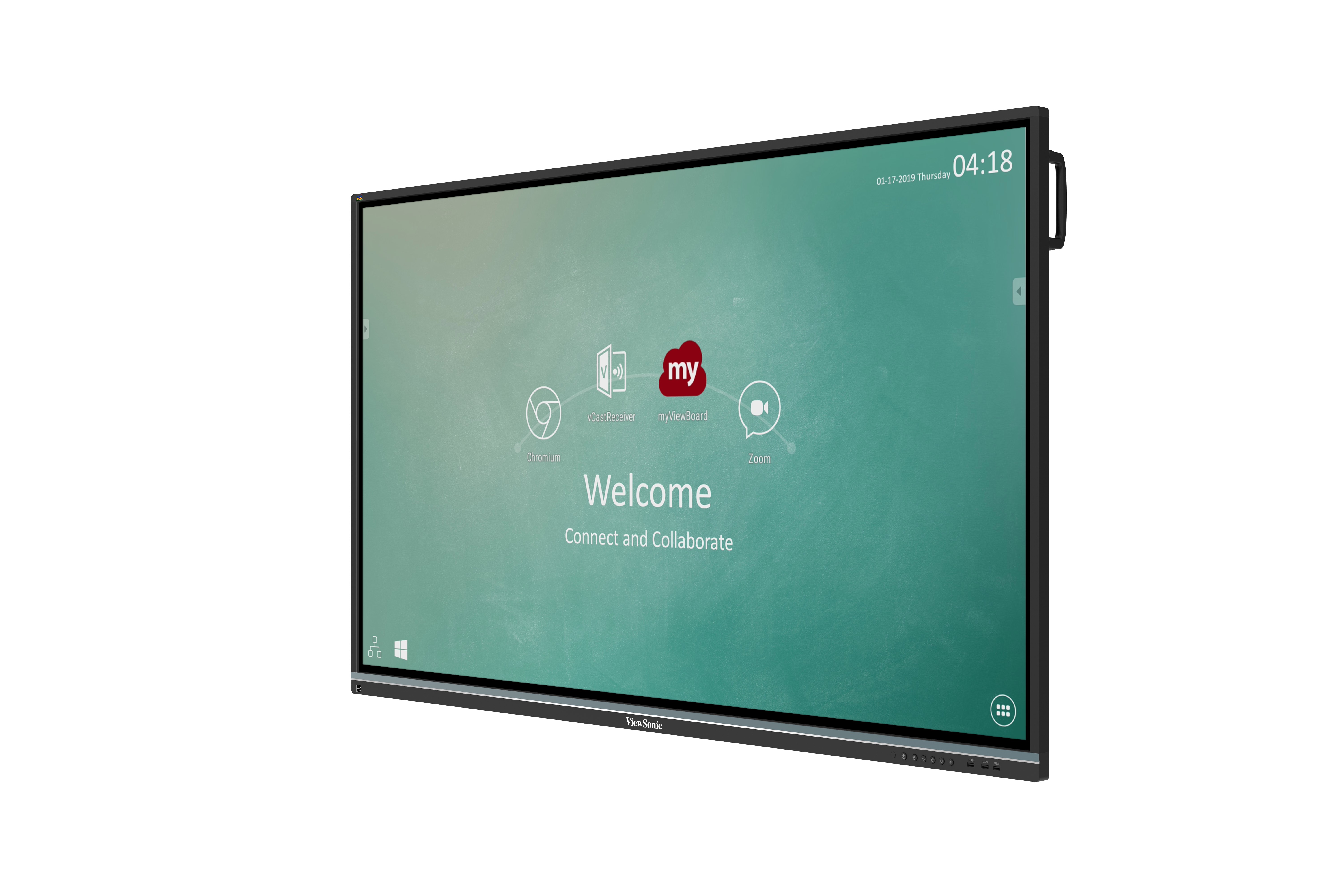

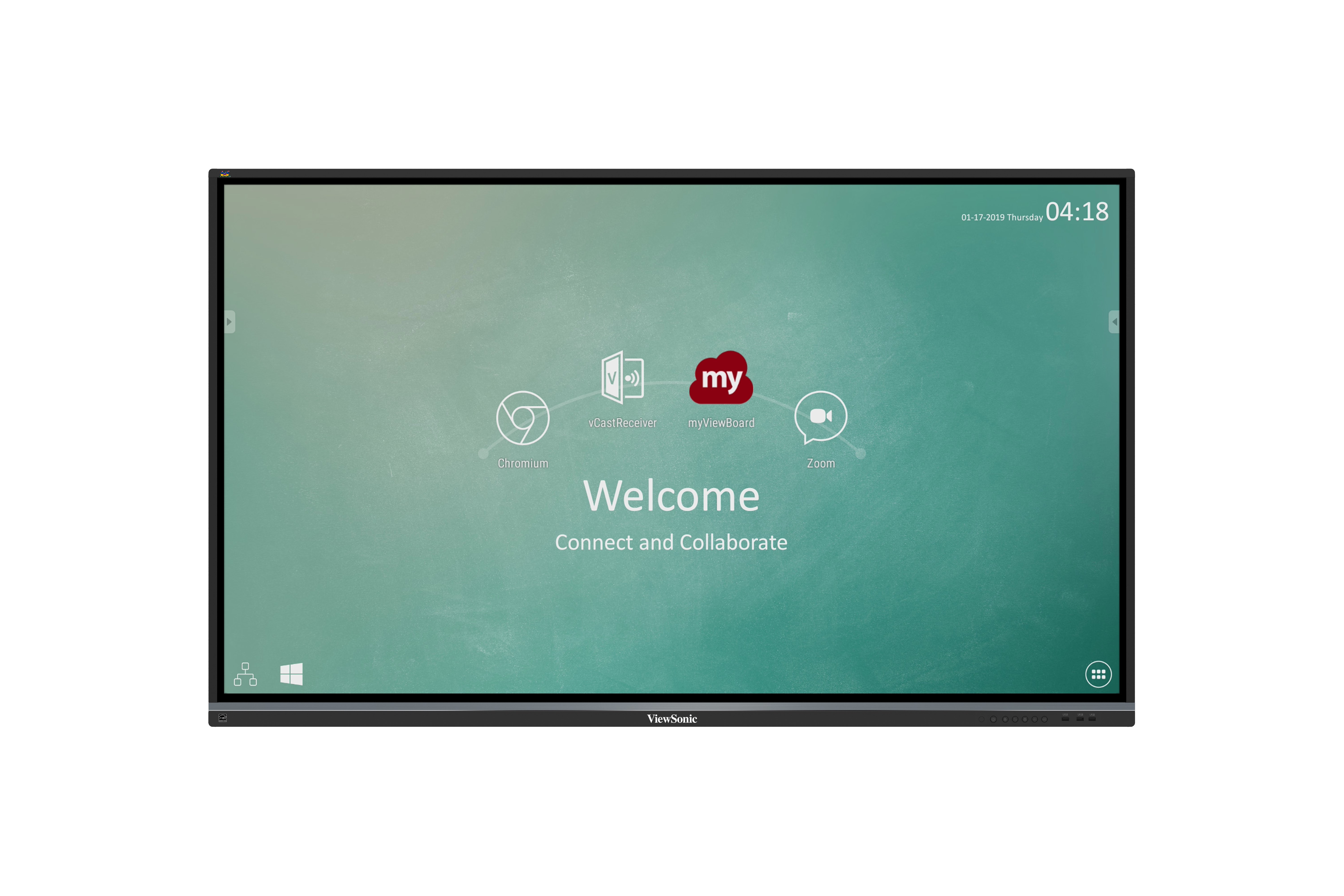

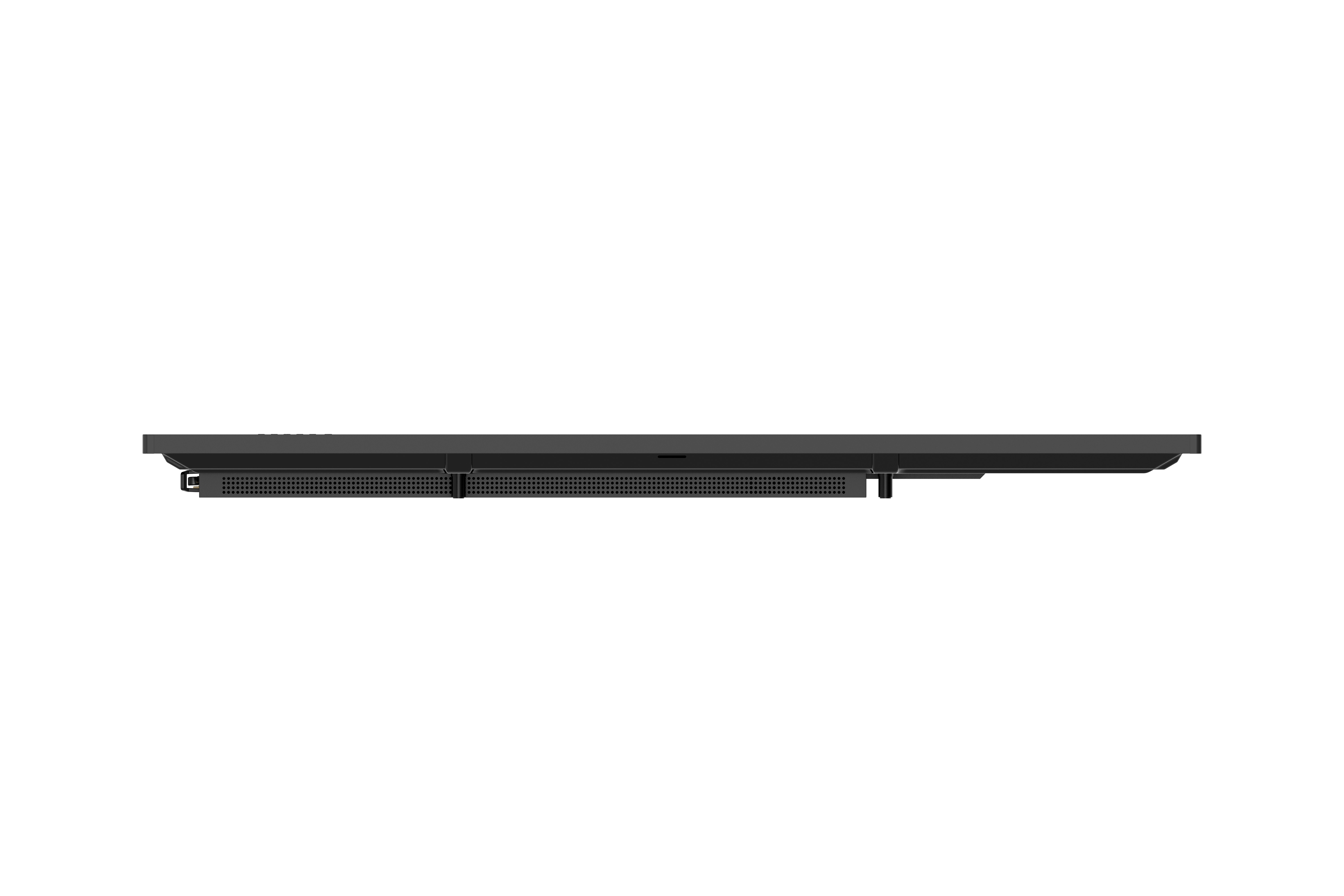

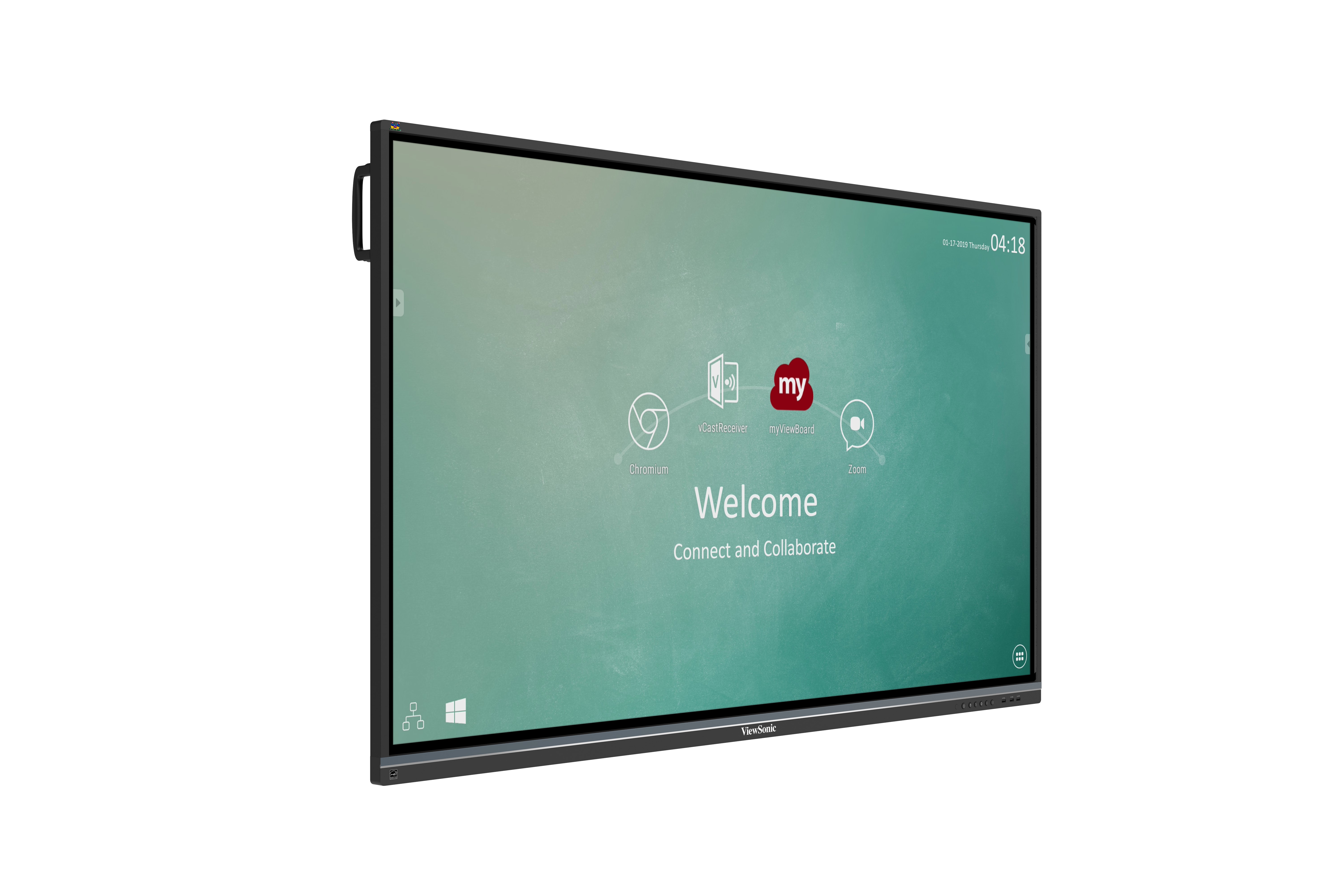

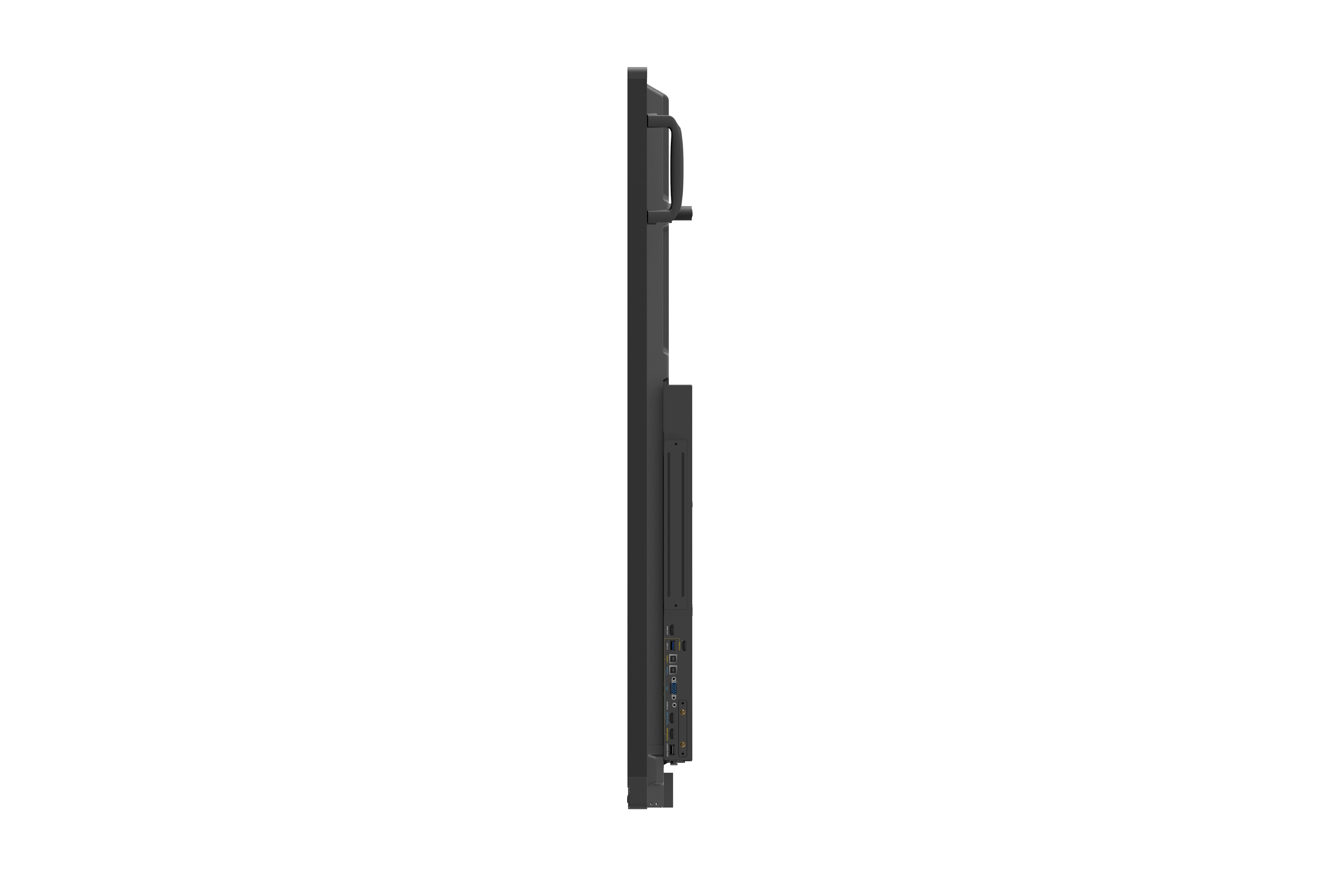

ViewBoard® 75" 4K Interactive Display
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- ViewBoard® Cast 4-way split screen content sharing software
- SmartPort™ shared front USB ports for internal & external PCs
- 2.1 Stereo sound with built-in subwoofer
SPECIFICATIONS
- DisplayPanel Size: 75"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1665.66 (H) x 944.73 (V) (74.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.) 300 nits (min.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-Glare

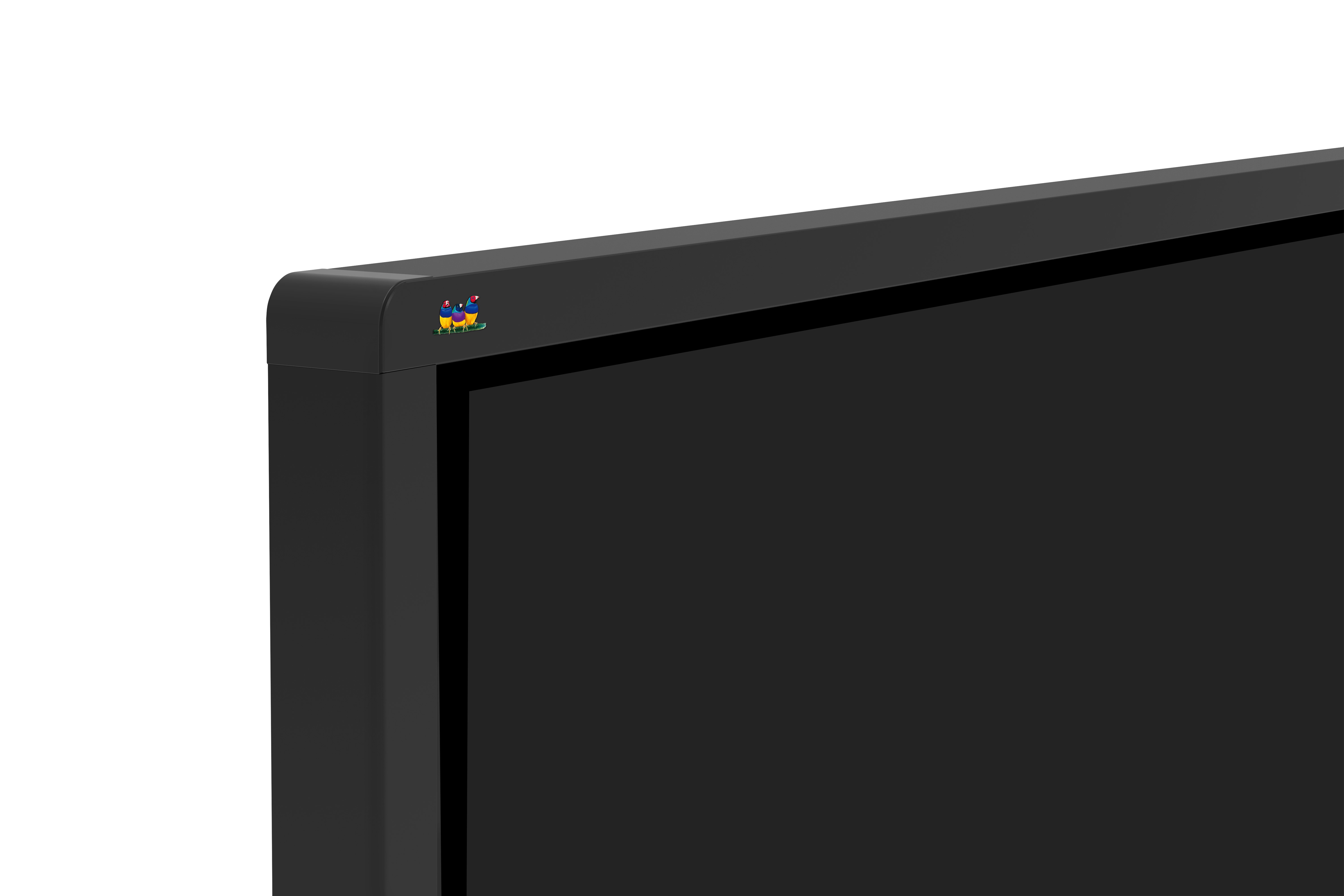

Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex A73 dual-core 1.2GHz
RAM: 2GB DDR4
Storage: 16GB - TouchType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
CVBS: x1
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTHDMI: x1
Audio: x1 (Earphone out)
SPDIF: 1(optical)
RS232: x1 - LANRJ45: x1
- USBType A: USB 2.0 x4(including 2 USB port in front)
USB 3.0 x2(including 1 USB port in front)
Type B: x2, for touch - SPEAKERSSPEAKERS: 10W x 2 + 15W x 1
- Top Camera PlateYes
- COMPATIBILITYRGB PC/HDMI PC: Refer to timing table
CVBS: 480i
HDMI: 3840x2160 - Embedded OSEmbedded OS: Android 7
- USB SUPPORTED FILE FORMATUSB SUPPORTED FILE FORMAT: Picture -
BMP, JPEG, PNG
Video -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKV
Audio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3 - Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
ViewSonic Launcher: Embedded - Special FeaturesAll-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10M/100M for Android 10M/100M/1000M for slot-in PC - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 138W (Typ.)

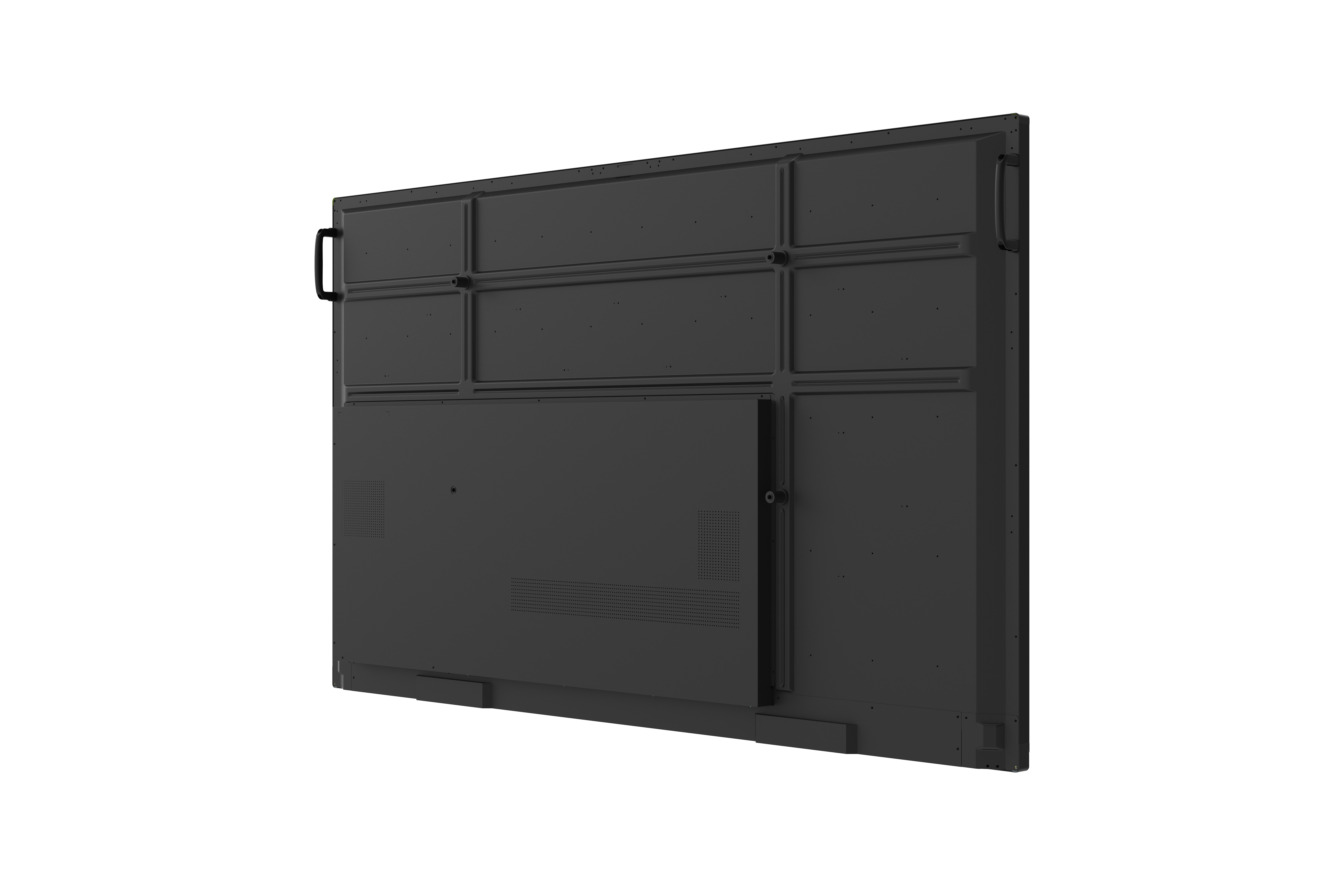

< 0.5 W ("Off") - ERGONOMICSWall Mount (VESA® ): 800 x 400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 67.3 x 40.2 x 3.5 in / 1710 x 1020 x 90 mm
Packaging (inch / mm): 76.0 x 44.9 x 11.0 in / 1930 x 1140 x 280 mm - WEIGHTNet (lb / kg): 116.80 lb / 53 Kg
Gross (lb / kg): 143.3 lb / 65 Kg - Energy Star versionEnergy Star version: ES8.0
- EEI ratingEEI rating: A+
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Power cable (3 metres) x 4
2. Remote control
3. USB cable (3 metres)
4. AV cable

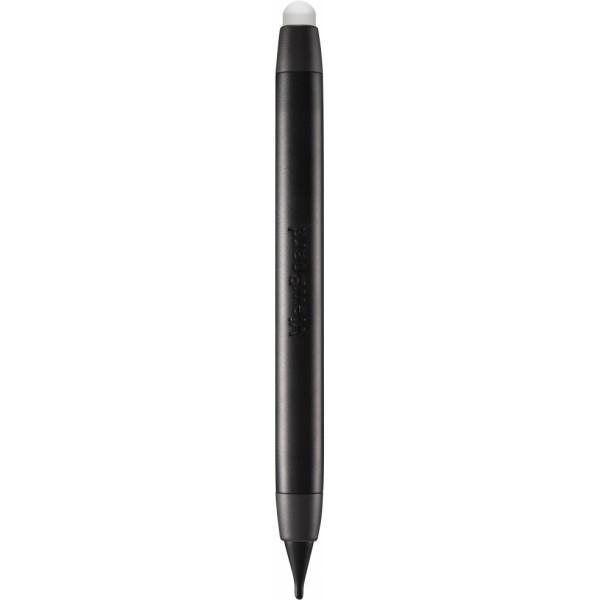

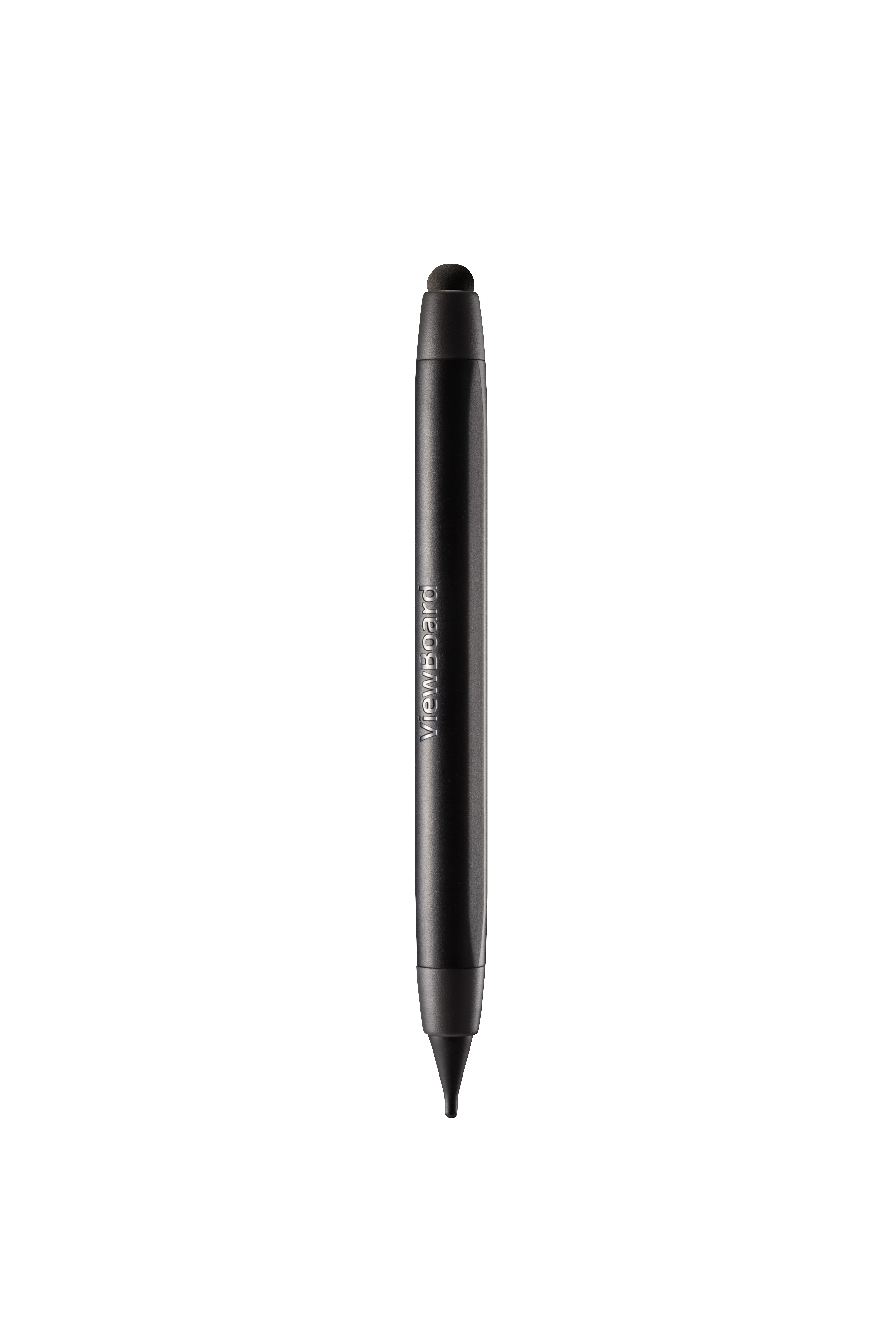

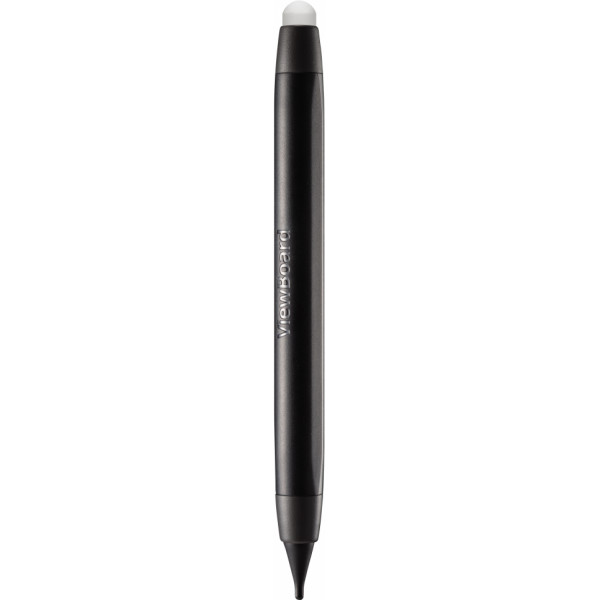

5. Touching pen x 2
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Plate
10. Screw x 8
11. HDMI cable (3 metres) - Compatible Slot-in PCCompatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
