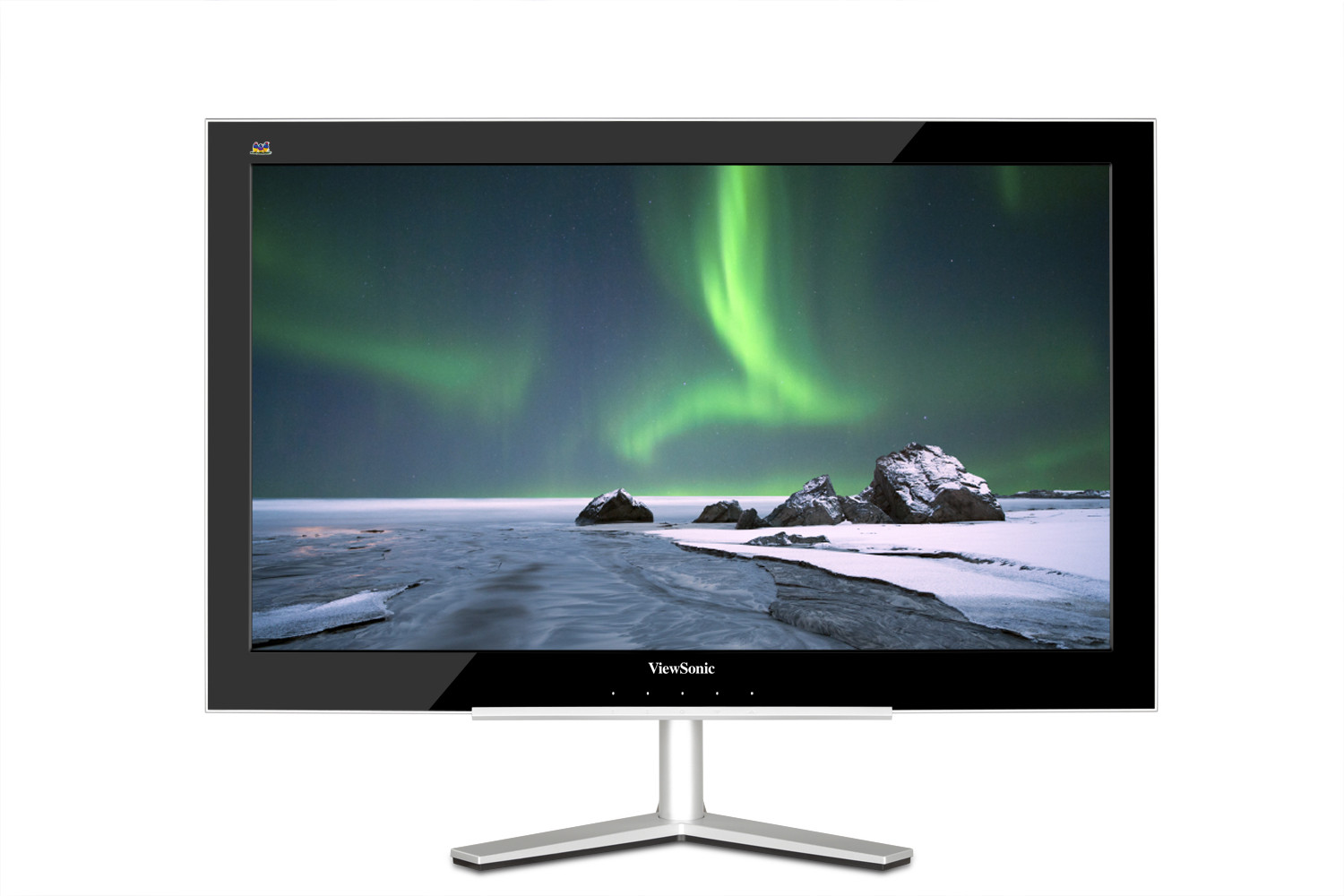

ViewSonic VX2460H-LED New 24” LED Display with Stylish Ultra-Slim Design

Key Features

Product Description

The new VX2460h-LED 24” display is the next level of the VX Series. It is ultra slim at 6.8mm, has a stylish new design and is packed with amazing features to provide advanced connectivity and a stunning visual performance. The Energy Star® 5.1 certified display is equipped with LED backlighting and ECO Mode, extending backlight lifetime and conserving over 40% more energy than a conventional display. The VX2460h-LED presents superior pixel performance with the2 ms video response time, provided by ClearMotiv® II imaging technology, ultrahigh 40,000,000:1 dynamic contrast ratio,16 : 9 widescreen display and Full HD 1080p resolution through dual HDMI inputs. The brilliant visual performance, with advanced imaging technologies that support multi-window display, and HDMI connectivity options packedwithin a slender display make the VX2460h-LED ideal forboth home and office use.

Visit Us

www.viewsonic.com

LCD

Contrast Ratio:	1,000:1 (typ.)
Viewing Angles:	170° / 160° (typ.)
Display Area:	60cm (23.6”) wide
Optimum Resolution:	1920 x 1080
Response Time:	Typ. 5 ms / G to G 2 ms
Panel Surface:	Anti-glare type, 3H hardness
Pixel Pitch:	0.2715 mm x 0.2715 mm
Brightness:	250 cd / m²
Dynamic Contrast Ratio:	40,000,000:1
Backlight:	White-light LED
Backlight Life:	40,000 hours (min.)

COMPATIBILITY

PC: VGA up to 1920 x 1080 (non-interlaced)

Mac®: Power MAC (supports up to 1920 x 1080
DIMENSIONS

Physical With Stand: 581 (W) x 447 (H) x 194 (D)
INPUT

Sync: Separate Sync

Frequency: Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz

Video: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
HDMI (TMDS, 100 Ω)
CONNECTOR

Analogue: 15-pin mini D-sub *1

Digital: HDMI 1.3 *2

Audio Out: 3.5mm jack audio out *1 (The audio source is from HDMI)

Power: External power adapter
POWER

Voltage: AC 100 - 240V (universal); 50 / 60 Hz

Consumption: 28W (Max); 16W (ECO Mode)
ERGONOMICS

Tilt: 13° ~ -6°
WEIGHT

Net With Stand: 3.5 Kg ( 7.72 lbs)
OPERATING CONDITIONS

Humidity: 20% to 90% (no condensation)

Temperature: 32° F to 104° F (0° C to 40° C)

PC:	VGA up to 1920 x 1080 (non-interlaced)
Mac®:	Power MAC (supports up to 1920 x 1080

Sync:	Separate Sync
Frequency:	Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz
Video:	RGB analog (75 Ω, 0.7 / 1.0 Vp-p) HDMI (TMDS, 100 Ω)

Analogue:	15-pin mini D-sub *1
Digital:	HDMI 1.3 *2
Audio Out:	3.5mm jack audio out *1 (The audio source is from HDMI)
Power:	External power adapter

Voltage:	AC 100 - 240V (universal); 50 / 60 Hz
Consumption:	28W (Max); 16W (ECO Mode)

Humidity:	20% to 90% (no condensation)
Temperature:	32° F to 104° F (0° C to 40° C)
