Smart Display
VSD231
Key Features
Product Description

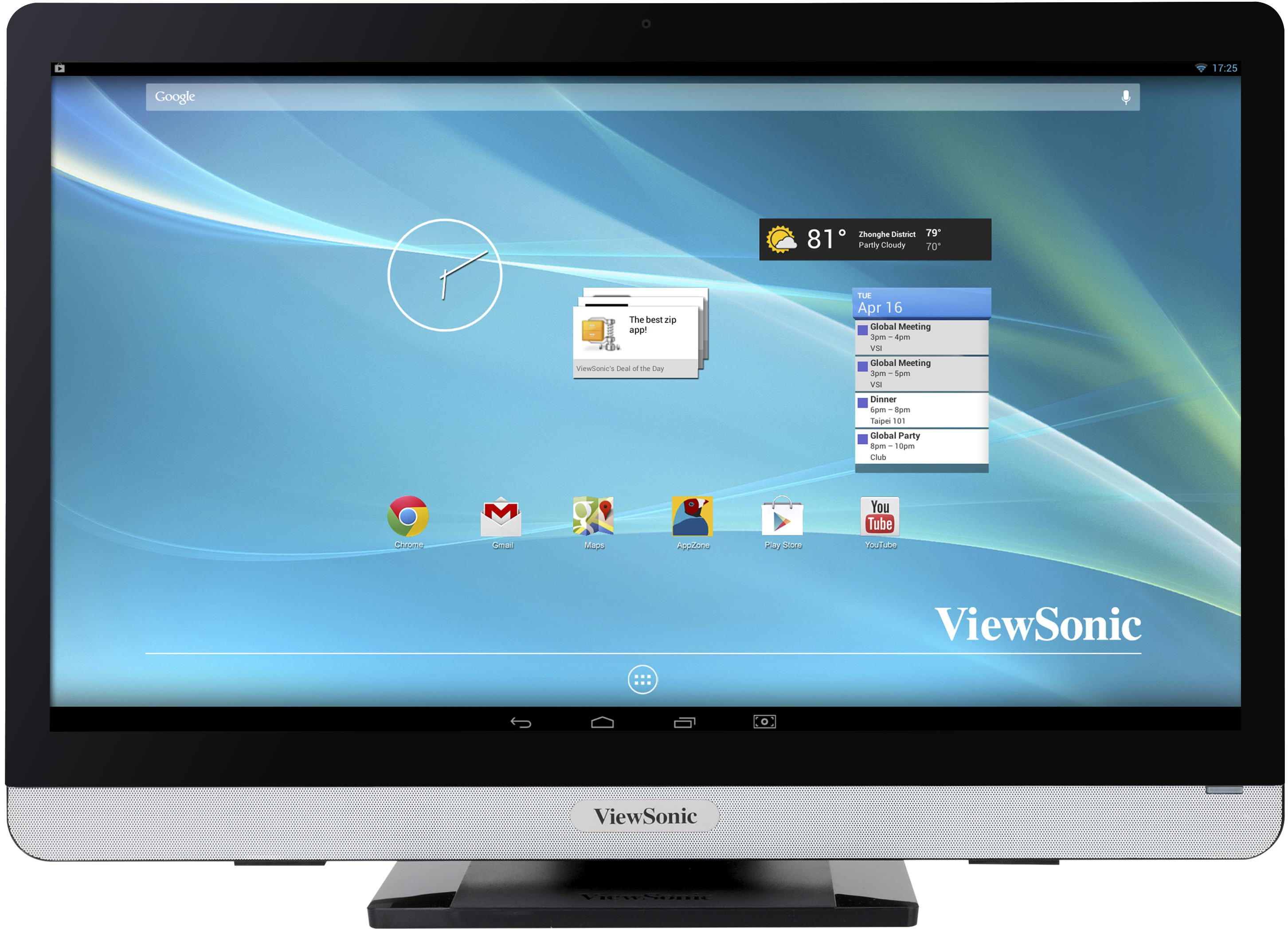

The ViewSonic VSD231 is a 23” IPS LED Smart Display with 1920x1080 Full HD resolution. It features an NVIDIA Tegra® 4 1.6 GHz Processor, a 10-point projected capacitive touch screen, and Android Jelly Bean OS. With Google GMS certification, the VSD231 allows users to enjoy diverse Android multimedia applications such as social networking, cloud services, and online video. Versatile connectivity options include HDMI (MHL), four full-size USB and one micro USB port, SD card reader, RJ45 LAN, headphone jack, and 2M pixel webcam with integrated mic for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents, and multimedia files. In addition, the VSD231 can also operate as a traditional 23’’ Full HD touch display via HDMI to your PC/Laptop for office work, or for surfing the internet and gaming. Integrated speakers with ViewSound Premium Audio system complete the package for your multimedia enjoyment.
Visit Us
- www.viewsonic.com
-
SYSTEM
CPU Processor: nVidia Tegra® T40S (Quad- Core 1.6GHz) Operating System: Android Jelly Bean 4.3.1 OS System Memory: 2GB DDR3 Storage Memory: 8GB eMMC iNand -
DISPLAY
Type: 23” TFT transmissive LCD Display Area: 23" Optimum Resolution: 1920 x 1080 Brightness: 300 cd/m2 (typ.) Contrast Ratio: 1,000:1 (typ.) Viewing Angles: 178° / 178° Response Time: 14ms (typ.) Panel Surface: Touch Glasses (7H) Touch Panel: HannsTouch PCT 10 points supported -
INPUT/OUTPUT
USB: USB 3.0 Type A x3, USB 3.0 Type B x1,USB 2.0 Type A x1, Micro USB x1 (data transferig with PC) HDMI: HDMI in (MHL) x1, HDMI out x1 Card Reader: SD card slot x1 LAN/Ethernet: RJ45 x1 (10M/100M/1000M) Audio: 3.5mm audio jack x1, 3.5mm ear-phone jack x1 Video: D-Sub In x1 Power: DC jack power x1 Speakers: 2W x2 Front Camera: Wafer lens 2.0 MP -
POWER
Voltage: AC Input voltage 100~240VAC, 50/60Hz (universal), Consumption: On mode: 90W, Standby mode: <5W, Off mode: 0.5W -
ERGONOMICS
Tilt: -5° ~ 90° Height Adjust: 0~ 22mm -
OPERATING CONDITIONS
Temperature (º F / º C): 0°C to 35°C Humidity: 20%~90% non-condensing -
DIMENSIONS (W X H X D) (INCH / MM)
Physical w stand: 21.30 x 15.46 x 7.57 inches / 547.1 x 392.61 x192.4 mm Physical w/o stand: 21.30 x 14.64 x 1.87 inches / 547.1 x 371.91 x 47.4 mm Packaging: 24.4 x 17.9 x 6.7 inches / 620 x 455 x 170 mm -
WEIGHT
Net (lb / kg): 15.86 lbs / 7.20 kg Gross (lb / kg): 19.60 lbs / 8.9 kg -
WALL MOUNT
VESA® (mm): 100 x 100mm -
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws -
WARRANTY
**Warranty offered may differ from market to market -
WHAT'S IN THE BOX
The top level assembly shall contain:
1. VSD231
2. Power adapter with power cord depend on regions.
3. HDMI (1.8M)
4. VGA cable (1.8M)
5. Quick Start Guide
*Actual content may differ from market to market
