Key Features
  • Integrated USB TypeC and Ethernet
  • Daisy chain monitor
  • Ergonomic design
  • vDisplay Manager software for multitasking
  • Lower total cost of ownership

VG2756-2K
Product Description
The ViewSonic VG56 docking monitor series will keep the workstation tidy and productive with USB Type-C and Ethernet connectivity that turn your monitor into a hub for charging, data, network, and devices. With a 27” display and 2560 X 1440 resolution that delivers larger and clearer images, the VG2756 QHD monitor expands your productivity. This monitor’s DisplayPort output also makes it convenient to daisy chain monitors, reducing clutter on your desk and simplifying cable management. A range of ergonomic features such as 40-degree tilt, swivel, bi-directional pivot and height adjustment, along with eye-care technology let you stay comfortable at work all day. In addition, the supported vDisplay Manager software for multi-tasking provides efficient on-screen display control. The monitor and quick release stand ship in an eco-friendly, biodegradable package, thus minimizing total cost of ownership.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 27
    Viewable Area (in.): 27
    Panel Type: IPS Technology
    Resolution: 2560 x 1440
    Resolution Type: QHD (Quad HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    Light Source: LED
    Brightness: 350 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5.8ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 78% size (Typ)
    sRGB: 110% size / 100% coverage (Typ)
    Pixel Size: 0.233 mm (H) x 0.233 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 2560x1440
    Mac® Resolution (max): 2560x1440
    PC Operating System: Windows 11 certified; macOS tested
    Mac® Resolution (min): 2560x1440
  • CONNECTOR
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
    Ethernet LAN (RJ45): 1
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 16.81W
    Eco Mode (optimized): 21.12W
    Consumption (typical): 26.35W
    Consumption (max): 35.94W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 90KHz
    Frequency Vertical: 49 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
  • ERGONOMICS
    Height Adjust (mm): 130
    Swivel: 120º
    Tilt (Forward/Back): -5º / 40º
    Pivot (Right/Left): 90º / 90º
  • WEIGHT (IMPERIAL)
    Net (lbs): 15.2
    Net Without Stand (lbs): 9.9
    Gross (lbs): 22.5
  • WEIGHT (METRIC)
    Net (kg): 6.9
    Net Without Stand (kg): 4.5
    Gross (kg): 10.2
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 27.2 x 16.9 x 8.6
    Physical (in.): 24.1 x 15.99~20.99 x 8
    Physical Without Stand (in.): 24.1 x 14.2 x 2

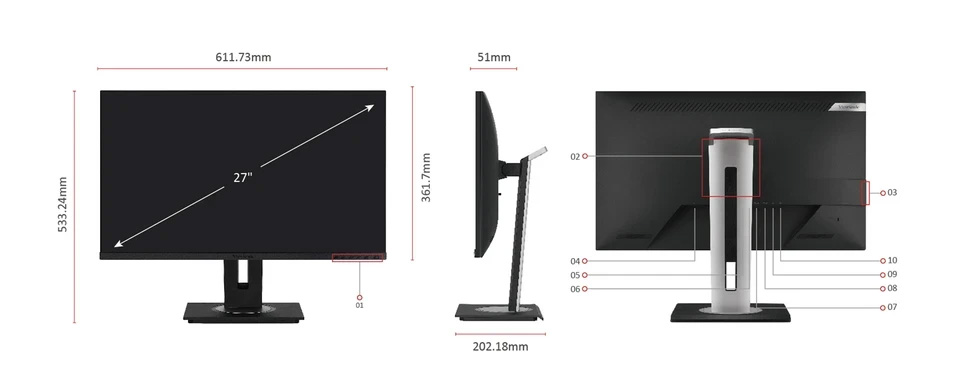

  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 692 x 430 x 218
    Physical (mm): 612 x 406.19~533.24 x 202
    Physical Without Stand (mm): 612 x 362 x 52
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, RCM
    PACKAGE CONTENTS: VG2756-2K x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
