LCD Display

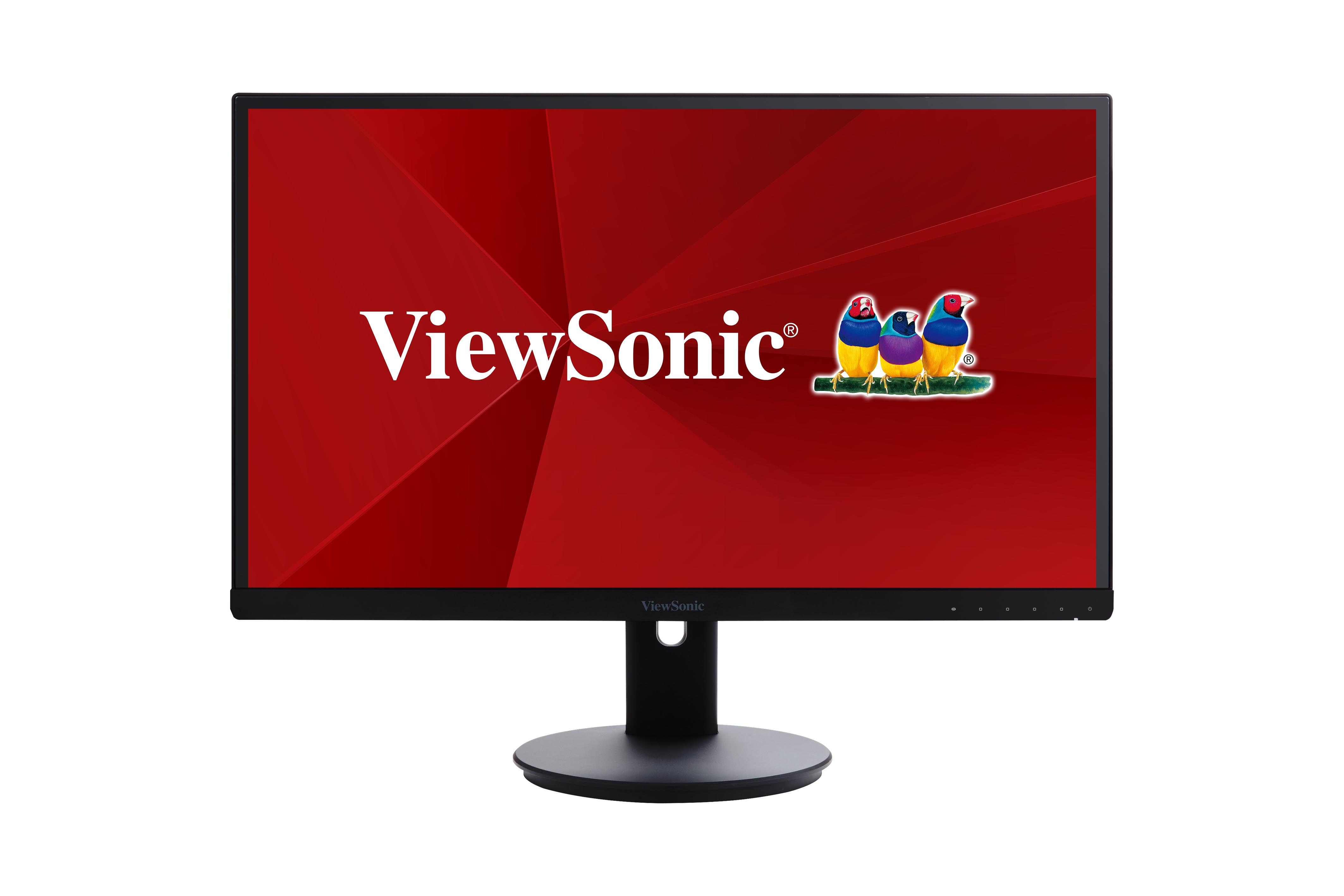

VG2753
Key Features
- Frameless bezel
- SuperClear® IPS technology
- ViewMode technology
- HDMI, DisplayPort,mini DP and VGA inputs
- Client mount support and VESA mountable
Product Description
The ViewSonic VG2753 is a versatile Full HD IPS monitor designed to create a productive and efficient working environment with flexible applications in PC, mobile, and cloud-based office settings. With 27” screen size, it integrates flexible future-proof connectivity — VGA, HDMI, DisplayPort , mini DisplayPort, USB— to connect with a variety of devices, including PCs, notebooks, or tablets, as well as peripherals.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 27 Viewable Area (in.): 27 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + A-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 4ms Response Time (GTG w/OD): 4.3ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) Pixel Size: 0.311 mm (H) x 0.311 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 USB 3.2 Type A Down Stream: 2 USB 3.2 Type B Up Stream: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DisplayPort: 1 Mini DisplayPort: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 19W Eco Mode (optimized): 24W Consumption (typical): 27W Consumption (max): 37W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 Cable Organization: Yes -
CONTROLS
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 31 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, DisplayPort (v1.1): 15 ~ 86KHz, mini DisplayPort (v1.1): 15 ~ 86KHz Frequency Vertical: RGB Analog: 48 ~ 76Hz, HDMI (v1.4): 24 ~ 76Hz, DisplayPort (v1.1): 24 ~ 76Hz, mini DisplayPort (v1.1): 24 ~ 76Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.1), PCI-E - mini DisplayPort (v1.1) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Height Adjust (mm): 130 Swivel: 358º Tilt (Forward/Back): -5º / 20º Pivot (Right/Left): 90º / 0º -
WEIGHT (IMPERIAL)
Net (lbs): 14.1 Net Without Stand (lbs): 9.5 Gross (lbs): 19.3 -
WEIGHT (METRIC)
Net (kg): 6.4 Net Without Stand (kg): 4.3 Gross (kg): 8.7 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 29.3 x 18.6 x 8 Physical (in.): 24.5 x 16.27~21.39 x 9.2 Physical Without Stand (in.): 24.5 x 14.7 x 2.1 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 744 x 472 x 202 Physical (mm): 622 x 413.2~543.2 x 233 Physical Without Stand (mm): 622 x 372 x 53 -
GENERAL
PACKAGE CONTENTS: VG2753 x1, 3-pin Plug (IEC C13 / CEE22) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
