Key Features

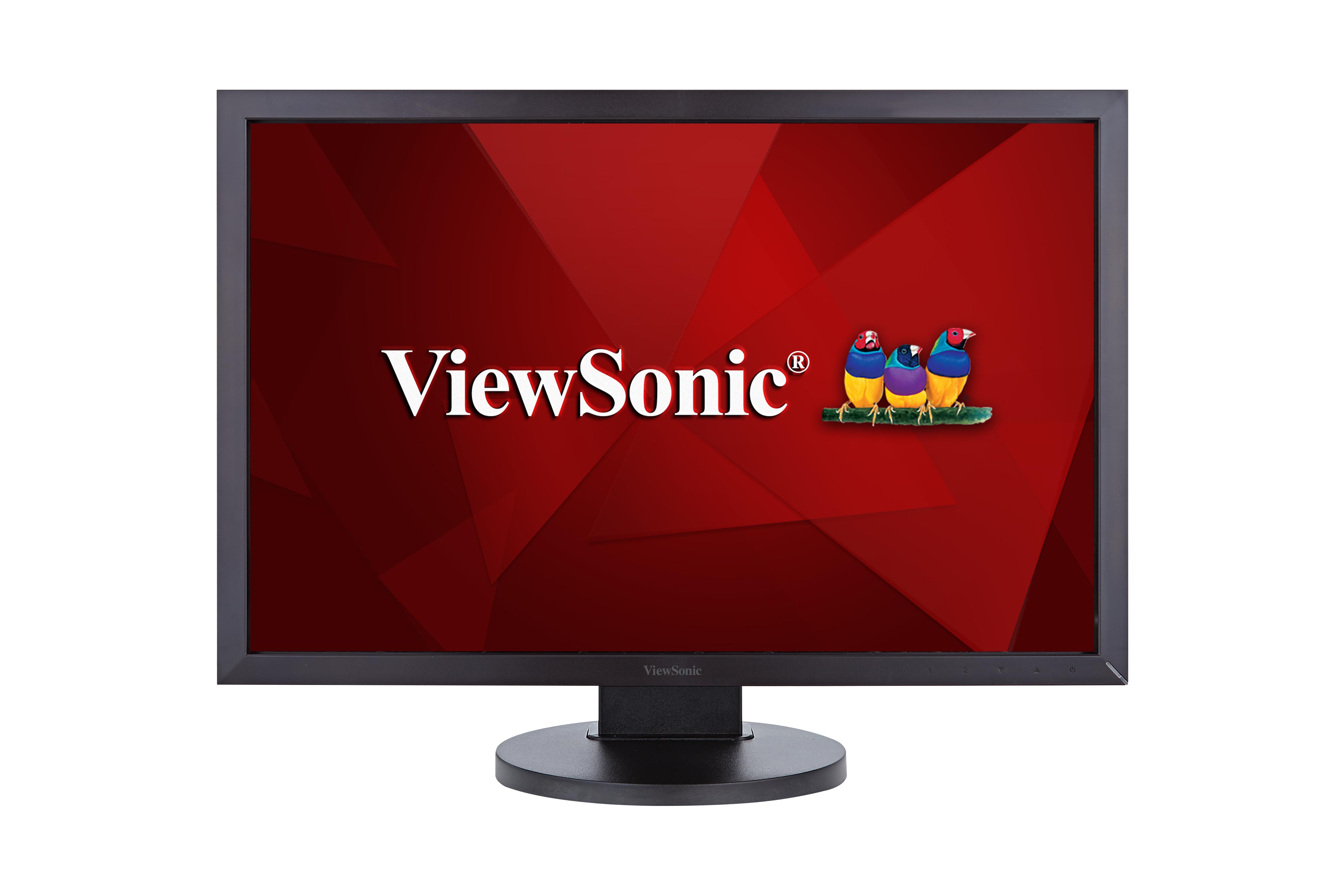

VG2438Sm
Product Description
ViewSonic’s VG2438Sm is a high performance multimedia display that features full-ergonomic functionality, including -5° to 37° tilt, 360° swivel, 90° pivot and 100mm height adjustments, to create the most comfortable desktop working environment. With 16:10 aspect ratio and 1920 x 1200 resolution, it offers a larger screen workspace to increase office productivity, while ViewSonic SuperClear® technology and 50M:1 dynamic contrast ratio deliver sharp, consistent and true on-screen colour performance. Dual 2W stereo speakers provide crystal-clear sound effects, while integrated DisplayPort, DVI and D-Sub inputs – and 4 USB 3.0 ports – support flexible connectivity with all your high-definition devices. Daily users will appreciate ViewSonic’s latest Flicker-free and Blue Light Filter eye-care technologies that reduce eye fatigue caused by prolonged use. ENERGY STAR® certified and energy-efficient, the VG2438Sm LED display’s exclusive Eco-Mode reduces power consumption at all brightness levels, and minimizes maintenance effort and cost. Plus, ViewMode provides different image performance settings based on user scenario, including Web, Text and Movie modes, making this display the perfect choice for corporate, government, SMB and educational institutions.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 24.1
    Panel Type: IPS Technology
    Resolution: 1920 x 1200
    Resolution Type: WUXGA (Wide UXGA)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:10
    Response Time (Typical GTG): 15ms
    Response Time (GTG w/OD): 15ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ)
    Pixel Size: 0.27 mm (H) x 0.27 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1200
    Mac® Resolution (max): 1920x1200
    PC Operating System: Windows 8 certified; macOS tested
    Mac® Resolution (min): 1920x1200
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 4
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    DisplayPort: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 17.5W
    Eco Mode (optimized): 22W
    Consumption (typical): 27W
    Consumption (max): 30W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 30 ~ 80KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - DVI-D, PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Height Adjust (mm): 100
    Swivel: 360º
    Tilt (Forward/Back): -5º / 37º
    Pivot (Right/Left): 90º / 0º
  • WEIGHT (IMPERIAL)
    Net (lbs): 12.7
    Net Without Stand (lbs): 9.2
    Gross (lbs): 16.2
  • WEIGHT (METRIC)
    Net (kg): 5.7
    Net Without Stand (kg): 4.2
    Gross (kg): 7.4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 24 x 16.9 x 6.5
    Physical (in.): 22.3 x 15.49~19.43 x 8
    Physical Without Stand (in.): 22.3 x 14.3 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 610 x 430 x 164
    Physical (mm): 567 x 393.5~493.5 x 204
    Physical Without Stand (mm): 567 x 363 x 52
  • GENERAL
    PACKAGE CONTENTS: VG2438SM x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
