LCD Display
VG1930wm
Key Features
Product Description

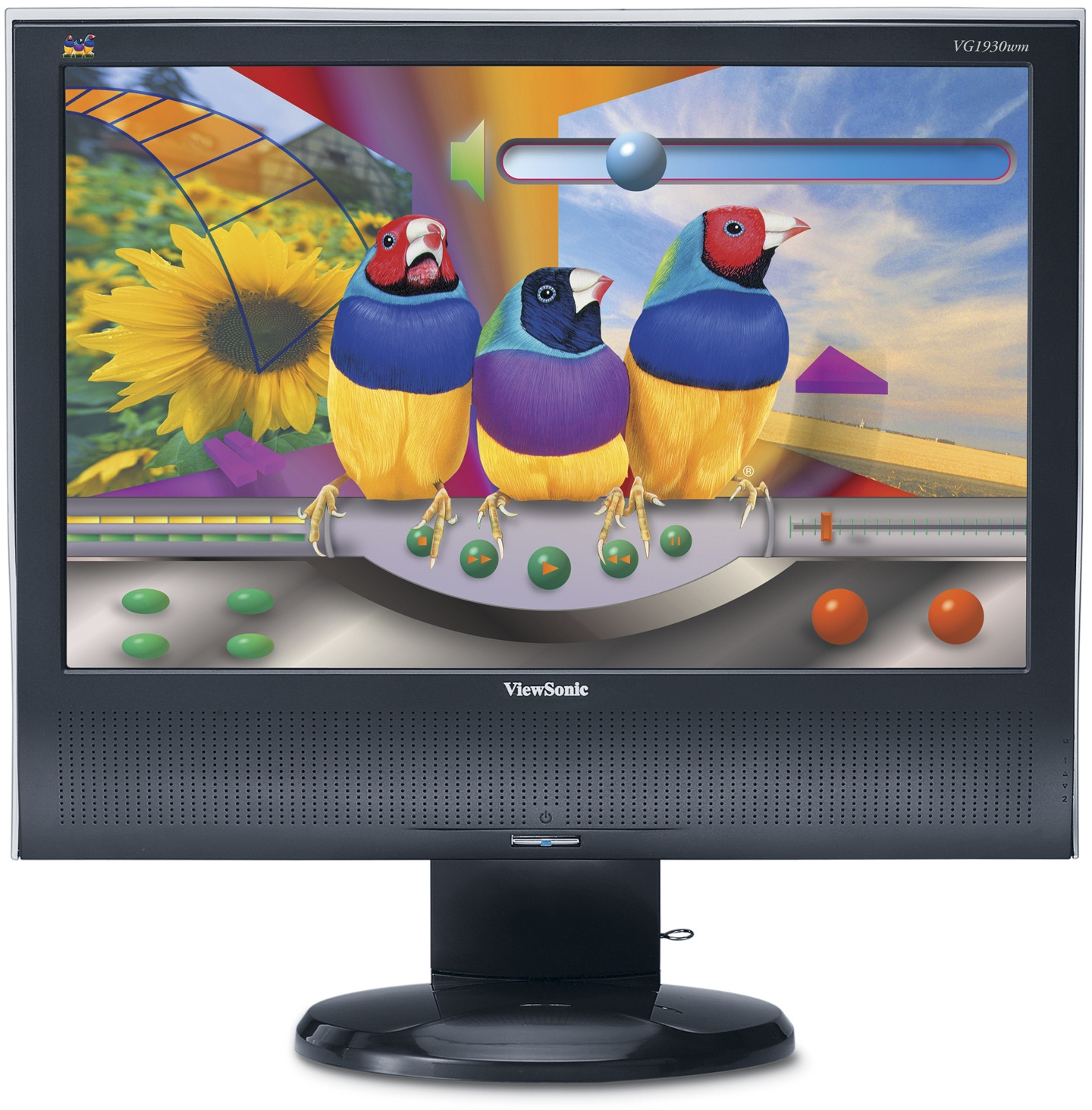

ViewSonic’s 19” VG1930wm combines WIDESCREEN and multimedia performance with ergonomic flexibility. Improve productivity and save time with widescreen versatility. Display multiple pages, larger spreadsheets and more on a single screen without the need to swap. HEIGHT ADJUSTMENT, tilt and 360° swivel features allow the user to set the ergonomic position of the monitor to generate the best possible viewing position. Enjoy high brightness and contrast levels for rich, precise, detailed images and razor sharp text, whilst DIGITAL AND ANALOGUE inputs ensure maximum connectivity options. Built-in stereo-speakers deliver high quality audio performance. The elegantly designed VG1930wm widescreen monitor is the ideal business LCD.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 19” Wide TN colour TFT active matrix WXGA+ LCD Contrast Ratio: 700:1 (typ.) Viewing Angles: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Brightness: 300cd/m² (typ.) Display Area: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal Optimum Resolution: 1440 x 900@60Hz Response Time: 5ms (off-on-off) (typ.) Light Source: Long life, 40000 hrs. (typ.) Panel Surface: Anti-glare Pixel Pitch: 0.285mm Pixel Clock: 135MHz -
COMPATIBILITY
PC: VGA up to 1440 x 900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 -
DIMENSIONS
Physical With Stand: 460 x 434–514 x 230 Physical Without Stand: 460 x 352 x 61 W x H x D mm: 560 x 525 x 282 -
PACKAGE CONTENTS
LCD display, VGA cable, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
AUDIO
Speaker: 2 x 1.5 watt integrated speakers Amplifier: 1.5-watt @ THD < 8% -
CONNECTOR
Analogue: 15-pin mini D-sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Power: 3-pin AC plug (CEE22) Audio: 3.5mm stereo audio line-in -
POWER
Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply Consumption: 35 watt (typ.), <1 watt in power save mode -
CONTROLS
Basic: Power, menu [1], up, down, select [2], mute, volume up/down OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall -
OPERATING CONDITIONS
Temperature: 0°C–40°C Humidity: 10%–90% (non-condensing) -
WEIGHT
Net With Stand: 5.4kg Gross: 6.9kg -
VIDEO INPUT
Frequency: Fh: 24~82kHz, Fv: 50~75Hz Sync: H/V separated (TTL) (screen-on-screen) Analogue: RGB analogue (0.7 Vp-p, 75 ohm) Digital: DVI-D (TMDS, 100 ohm) -
POWER MANAGEMENT
Meets TCO’03 and ENERGY STAR® standards -
SECURITY
Kensington® security port -
VESA MOUNT COMPLIANT
VESA FDMI 75mm x 75mm -
ERGONOMICS
Tilt: Down 5°, Up 20° Swivel: 360° swivel base Height Adjustment: 0~80mm
