Key Features

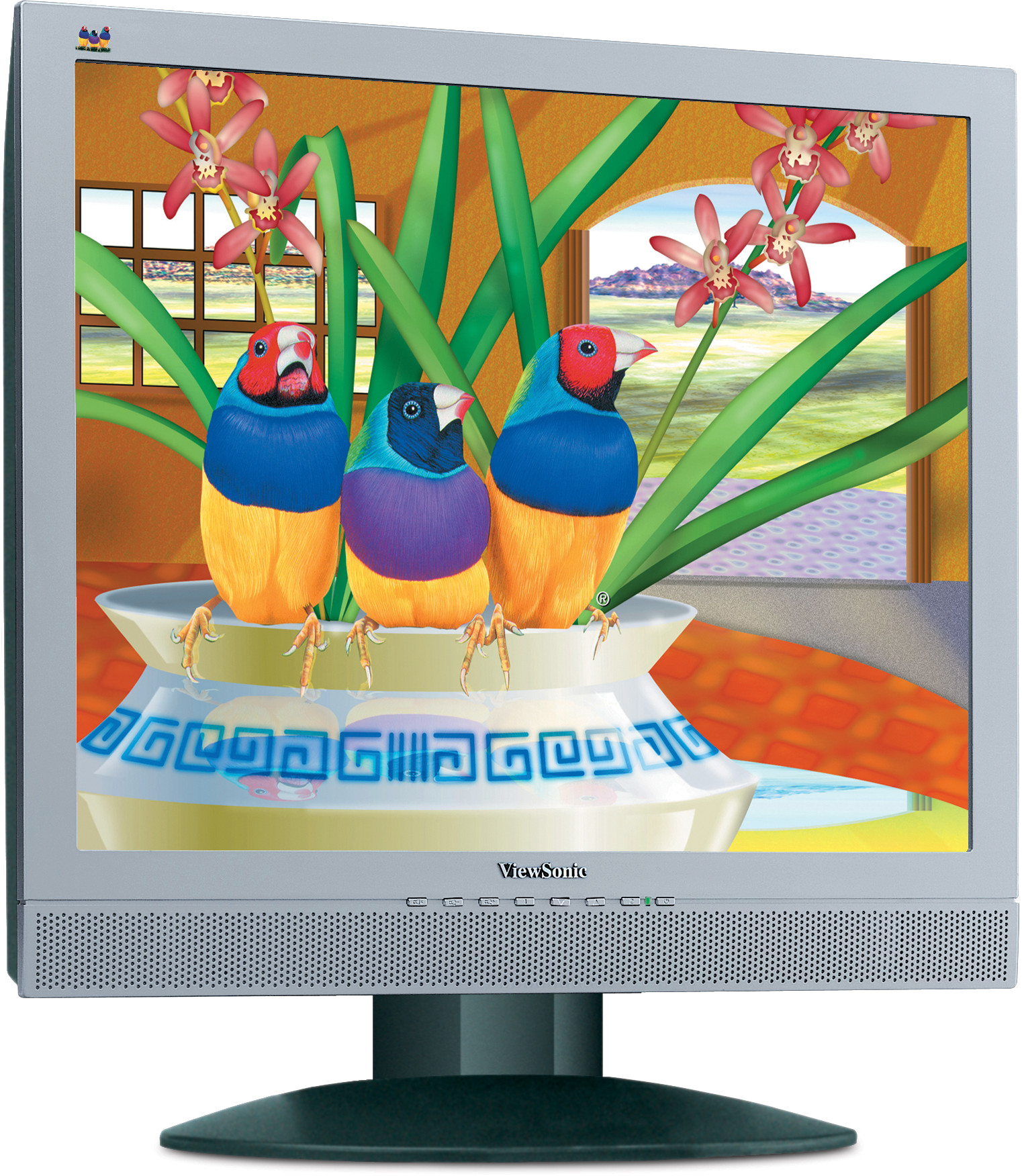

VE920m
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 48cm / 19" TN colour TFT active matrix SXGA LCD
    Contrast Ratio: 400:1 (typ.)
    Viewing Angles: 150° horizontal, 130° vertical (at 10:1)

    160° horizontal, 150° vertical (at 5:1)
    Brightness: 280cd/m² (typ.)
    Display Area: 37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 8ms (off-on-off) (typ.)
    Light Source: Long life, 50000 hrs. (typ.)
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.294mm
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Pixel Clock: 135MHz
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)
  • DIMENSIONS
    Physical With Stand: 423 x 434 – 534 x 221 (with stand)
    Physical Without Stand: 423 x 381 x 52 (without stand)
  • PACKAGE CONTENTS
    LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
    ViewSonic Wizard CD (User Guide/drivers)
  • AUDIO
    Speaker: 2 x 1-watt
    Amplifier: 1-watt @ THD < 8%
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (attached cable)
    Audio: 3.5mm stereo audio line-in
    Power: 3-pin AC plug (CEE22)
  • POWER
    Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Consumption: 35 watt (typ.) <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], down, up, select [2], mute
    OSD: Auto image adjust, contrast, brightness, audio (volume, mute), ViewMatch®
    colour adjust (sRGB, 9300K, 6500K, 5400K, User-RGB), information
    (resolution, H/V frequency, pixel clock, model number, serial number,
    website), manual image adjust (H/V position, H size, fine tune, sharpness),
    setup menu (language, resolution notice, OSD position, OSD timeout,
    OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 10% – 90% (non-condensation)
  • WEIGHT
    Net With Stand: 5.2kg (with stand)
    Net Without Stand: 4kg (without stand)
  • VIDEO INPUT
    Sync: H/V separate (TTL)
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
    Frequency: Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz
  • POWER MANAGEMENT
    Meets TCO’03 and Energy Star® standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA® FPDM 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, up 20°
    Height Adjustment: 0 ~ 100mm
