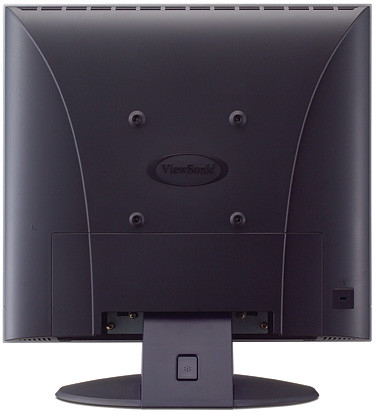

ViewSonic VA712 43cm / 17" VALUE SERIES LCD DISPLAY

LCD

Type:	43cm / 17" colour TFT active matrix SXGA LCD
Contrast Ratio:	350:1 (typ.)
Viewing Angles:	160° horizontal, 120° vertical (at 10:1) 160° horizontal, 140° vertical (at 5:1)
Brightness:	350cd/m² (typ.)
Display Area:	338mm horizontal x 270mm vertical, 43.2cm diagonal
Optimum Resolution:	1280 x 1024
Response Time:	8ms (typ)
Light Source:	Long life, 50,000 hrs. (typ.)
Panel Surface:	Anti-glare
Pixel Pitch:	0.264mm
Colour Support:	16.2M colours (6-bit +2-bit FRC)

COMPATIBILITY

PC: VGA up to 1280 x 1024 (up to 75 Hz)

Mac®: Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz)
DIMENSIONS

W x H x D mm: 386 x 411 x 177 (with stand)
AUDIO

Speaker: 2 x 1 watt
INPUT SIGNAL

Frequency: Fh: 30~82kHz

Fv: 50~85Hz

Video: RGB analogue (75 ohms, 0.7 Vp-p)

Sync: H/V separate (TTL)
CONNECTOR

Analogue: 15-pin mini D-Sub (captive cable)

Audio: Stereo mini audio line in
POWER

Voltage: AC 100–240V (universal), 50–60Hz (auto switch), external power supply

Consumption: 51 Watt (typ.)

CONTROLS

OSD:	Auto image adjust, brightness, contrast, input selection, ViewMatch® colour adjust (sRGB, 9300K, 6800K, 6500K), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V.position, fine tune, sharpness), setup menu (language, resolution notice) OSD position, OSD timeout, OSD background, memory recall
Physical:	Power on/off, menu, up, down, select

OPERATING CONDITIONS

Temperature: 0°C to 40°C

Humidity: 10% to 90% (no condensing)
WEIGHT

Net: 4.3kg
POWER MANAGEMENT

Meets TCO'99 and ENERGY STAR® standards
ERGONOMICS

Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 (up to 75 Hz)
Mac®:	Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz)

Analogue:	15-pin mini D-Sub (captive cable)
Audio:	Stereo mini audio line in

Voltage:	AC 100–240V (universal), 50–60Hz (auto switch), external power supply
Consumption:	51 Watt (typ.)

Temperature:	0°C to 40°C
Humidity:	10% to 90% (no condensing)
