Key Features
  • HDMI and VGA input
  • Superior color rendering options
  • Comfortable viewing
  • Low energy consumption
  • VESA mountable

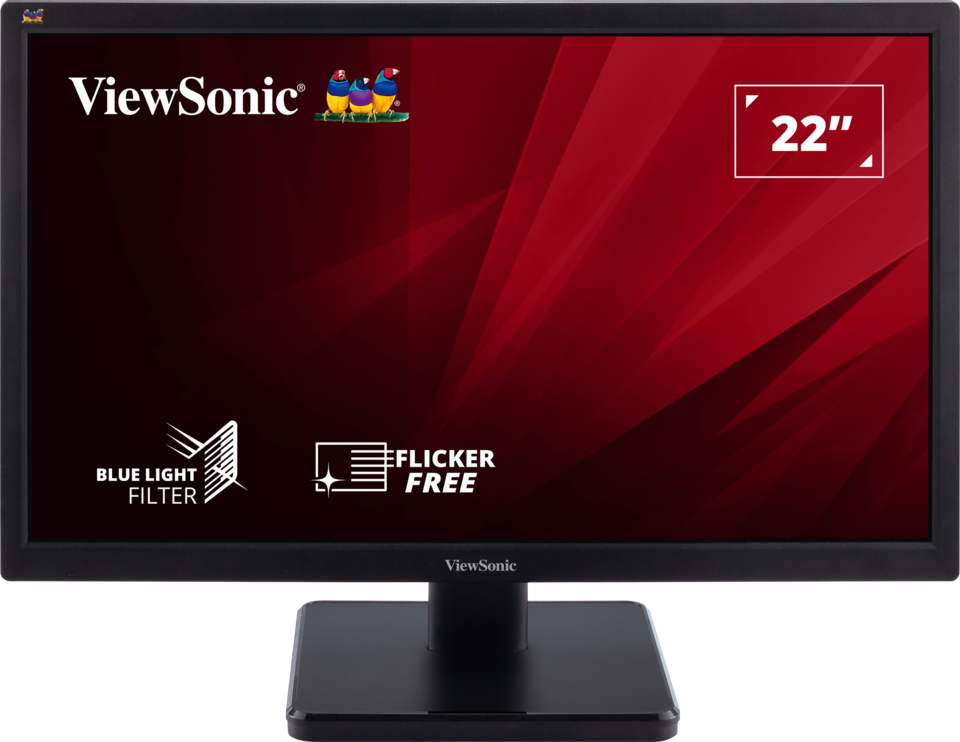

VA2223-H
Product Description
The ViewSonic VA2223-H is a cost-effective 22” Full HD monitor with HDMI and VGA input that is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. A VESA-compatible mount adapts easily to multi-monitor or wall-mount set ups.
  1. VESA Compatible(Wall Mount 75x75mm)
  2. Menu Control Panel
  3. AC In
  4. VGA
  5. HDMI
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: TN Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 600:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 5ms
    Viewing Angles: 90º horizontal, 65º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
  • POWER
    Eco Mode (Conserve): 18W
    Eco Mode (optimized): 20W
    Consumption (typical): 22W
    Consumption (max): 24W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: External Power Adaptor
  • CONTROLS
    Physical Controls: Auto, -, +, Menu, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -4º / 14º
  • WEIGHT (IMPERIAL)
    Net (lbs): 4.6
    Net Without Stand (lbs): 4
    Gross (lbs): 6.6
  • WEIGHT (METRIC)
    Net (kg): 2.1
    Net Without Stand (kg): 1.8
    Gross (kg): 3
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 22.1 x 14.4 x 4.3
    Physical (in.): 20.1 x 14.6 x 7.3
    Physical Without Stand (in.): 20.1 x 12.2 x 1
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 562 x 365 x 110
    Physical (mm): 510 x 370 x 185
    Physical Without Stand (mm): 510 x 310 x 25
  • GENERAL
    PACKAGE CONTENTS: VA2223-H x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country)
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
