LCD Display
VA1917a
Key Features
Product Description

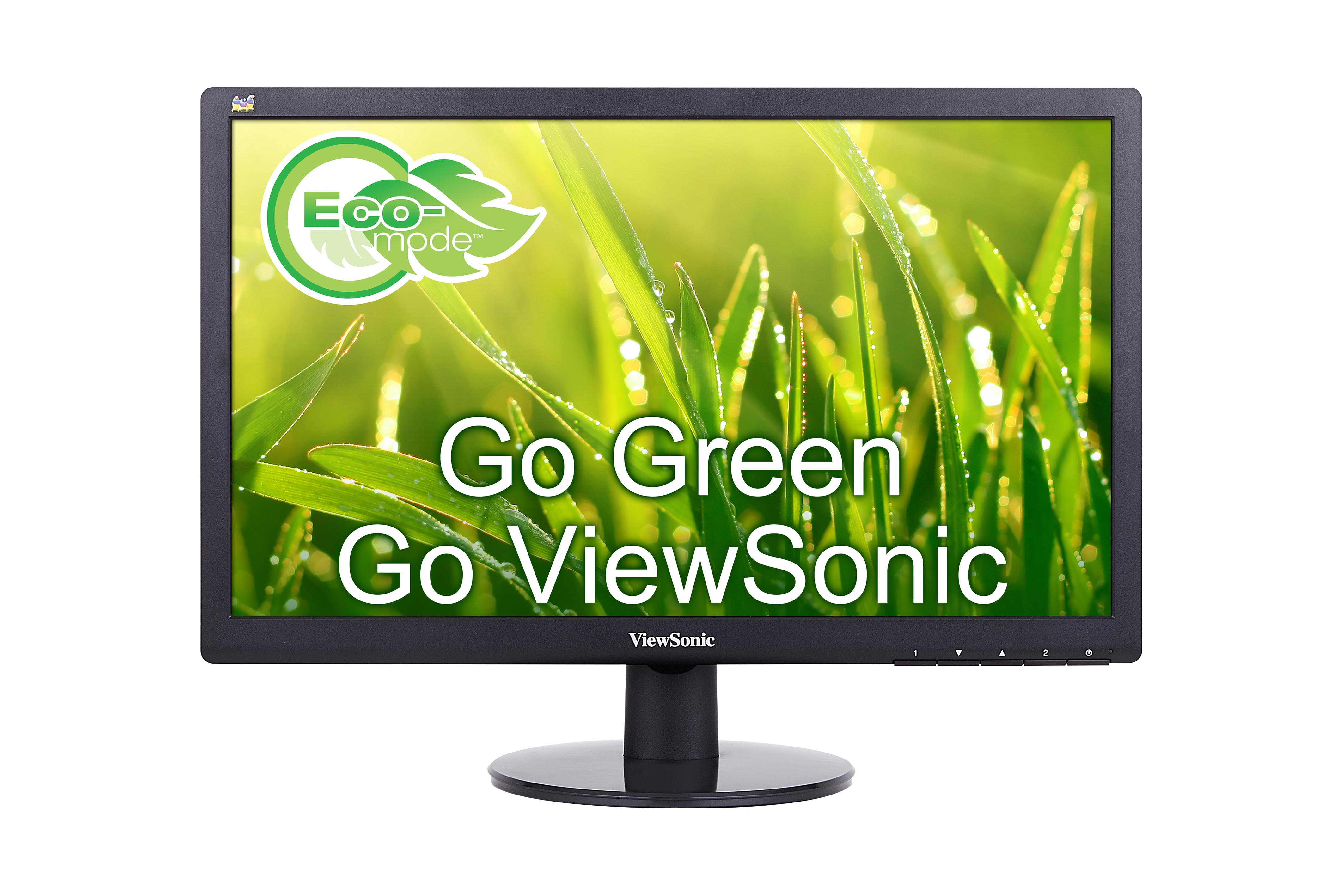

ViewSonic’s new VA1917a is an environmentally friendly 19’’ (18.5’’ viewable) widescreen display that features LED backlight, providing energy saving up to 40%. With 1366 x 768 HD resolution, 5ms response time and VESA mountable design, the VA1917a is ideal for both home and office. The display’s built-in colour management ensures the most accurate white level for image rendering, allowing users to match different colour temperature settings to create more comfortable working conditions. In addition, energy-saving ECO-mode reduces cost of ownership, making the VA1917a the best choice for both corporate and education customers as well.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 19 Viewable Area (in.): 18.5 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 600:1 (typ) Light Source: LED Brightness: 200 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 5ms Viewing Angles: 90º horizontal, 65º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Color Gamut: NTSC: 72% size (Typ) Pixel Size: 0.3 mm (H) x 0.3 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1366x768 Mac® Resolution (max): 1366x768 PC Operating System: Windows 8.1 certified Mac® Resolution (min): 1366x768 -
CONNECTOR
VGA: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
POWER
Eco Mode (Conserve): 12W Eco Mode (optimized): 15W Consumption (typical): 18W Consumption (max): 20W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 4.9 Net Without Stand (lbs): 4.4 Gross (lbs): 6.4 -
WEIGHT (METRIC)
Net (kg): 2.2 Net Without Stand (kg): 2 Gross (kg): 2.9 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 19.4 x 13.7 x 4.3 Physical (in.): 17.4 x 13.1 x 6.9 Physical Without Stand (in.): 17.4 x 10.7 x 1.8 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 493 x 348 x 110 Physical (mm): 442 x 333 x 176 Physical Without Stand (mm): 442 x 272 x 46 -
GENERAL
PACKAGE CONTENTS: VA1917A x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
