Key Features

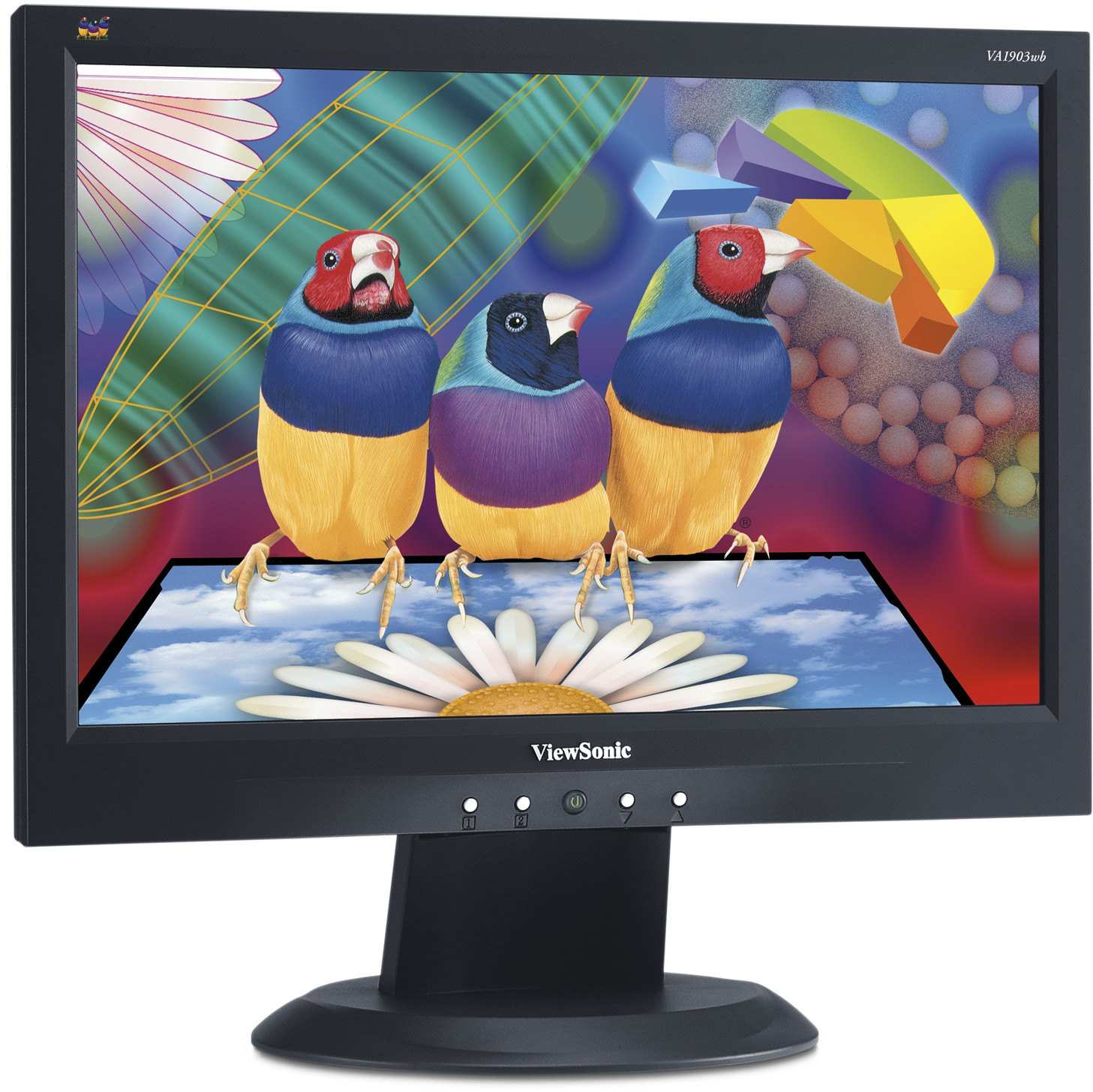

VA1903wb
Product Description
ViewSonic’s VA1903wb LCD brings the enjoyment of panoramic widescreen to the masses. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS or side-by-side full page layouts. Thanks to a SUPER-FAST 5MS response time together with 300cd/m² brightness levels and high 700:1 contrast, you get to enjoy superior blur-free clarity, amazing colour and stunning brightness. The VA1903wb delivers on ViewSonic’s tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It’s the easy choice for gamers, home/small office users and corporate professionals.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 19” Wide TN colour TFT active matrix WXGA+ LCD
    Contrast Ratio: 700:1 (typ.)
    Viewing Angles: 160° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Brightness: 300 cd/m²
    Display Area: 41.2cm horizontal x 25.4cm vertical, 48.3cm diagonal
    Optimum Resolution: 1440 x 900@60Hz
    Response Time: 5ms (off-on-off) (typ.)
    Light Source: Long life, 50000 (min.)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.285mm
    Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
    Pixel Clock: 140MHz
  • COMPATIBILITY
    PC: VGA up to 1440 x 900 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
  • DIMENSIONS
    Physical With Stand: 448 x 404 x 210
    Physical Without Stand: 448 x 318 x 63
    W x H x D mm: 520 x 473 x 158
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-sub (detachable cable)
    Power: 3-pin AC plug (CEE22)
  • POWER
    Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Consumption: 33 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 10% – 90% (non-condensation)
  • WEIGHT
    Net With Stand: 4.4kg
    Gross: 5.6kg
  • VIDEO INPUT
    Frequency: Fh: 24–82kHz, Fv: 50–75 Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
  • POWER MANAGEMENT
    TCO’03 and Energy Star standards
  • SECURITY
    Kensington security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
