Key Features

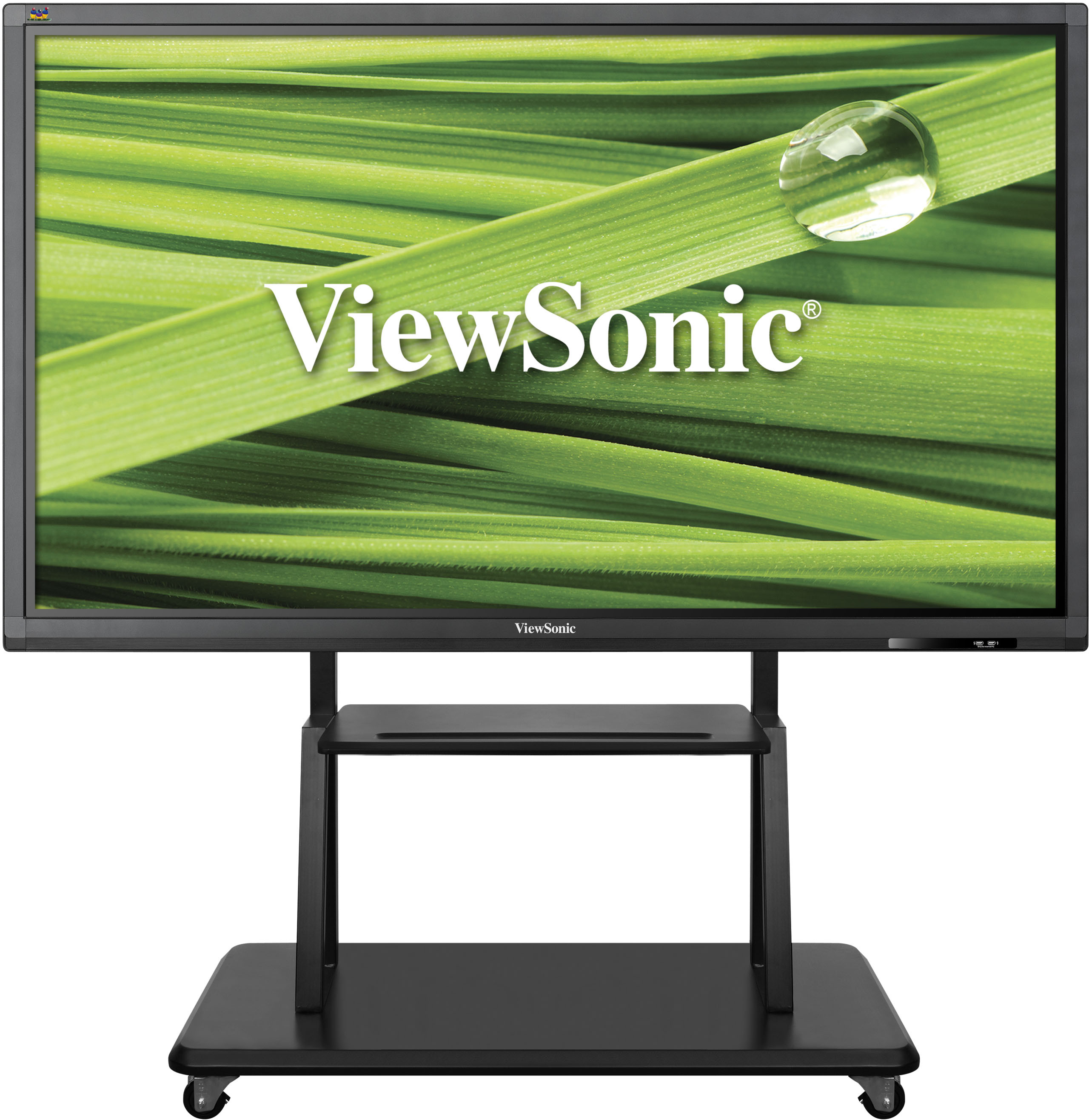

SWB8451
Product Description
The ViewSonic SWB8451 is an 84" interactive display ideal for educational and corporate meeting applications, as well as for scientific, GIS, and way-finding applications. With 6-point simultaneous touch technology, this Smart WhiteBoard encourages collaboration and allows two or three users to simultaneously write or draw on the display's surface with their fingers or stylus. The large-format LED screen guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the SWB8451 is designed for heavy usage in high- traffic areas. The ViewSonic SWB8451 Smart Whiteboard is the perfect solution where touch interactive performance is needed.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: TFT LCD module with LED backlight
    Effective Viewing Area: 3,840 (H) x 2,160 (W) (84.04” diagonal)
    Contrast Ratio: 1600:1 (typ.)
    Viewing Angles: H = 89, V = 89  (typ.)
    Brightness: CR : 5,000 (typ.) / 350 nits (typ.)
    Response Time: Total (ON + OFF) = 8ms
    Native Resolution: 1920 x 1080p @60Hz
    Panel Surface: Anti-glare
    Colour Support: 1.06B colors
    Size: 84"
  • DIMENSIONS
    Physical (WxHxD): 1,978 x 1,186 x 86 mm / 77.9 x 46.7 x 3.4 in
    Wall Mount: 1,000 x 280 x 55 mm / 39.37 x 11.02 x 2.17 in
    Display: 2,180 x 1,480 x 340 mm / 85.83 x 58.27 x 13.39 in
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
  • CONTROLS
    OSD: *1
    Physical: Top: POWER, INPUT, MENU,CH ^, CH v, VOL+, VOL-
  • VESA® MOUNT
    600 x 600mm
  • INCLUDED ACCESSORIES
    1. VGA cable

    2. Power cable x 4

    3. Remote control

    4. USB cable

    5. Audio cable

    6. Touching pen x 3

    7. User manual CD wizard
  • AUDIO
    Speakers: 15W x 2 @THD = 10%
    Microphone: None
  • WEIGHT
    Gross: 140 kgs / 308.65 lbs
    Net: 116 kgs / 255.74 lbs
    Wall Mount: 6.5 kgs / 14.33 lbs
  • OPERATING CONDITIONS
    Humidity: 20% ~ 80%, non-condensing
    Temperature: 32°F to 104°F (0°C to 40°C)
  • RELIABILITY
    Backlight: 30,000 Hours (typ.)
  • BUILT-IN PC
    Processor: Intel Core i3 (SWB8451-3_ SWB8451-3) Intel Core i5 (SWB8451-5_ SWB8451-5)
    Graphics: Integrated Intel HD 3000
    Sound Card: Integrated High Definition Audio Stereo
    Memory: DDR III 2GB (SWB8451-3_ SWB8451-3)  DDR III 4GB (SWB8451-5_SWB8451-5)
    Storage: 2.5” SATA2 HDD 320GB (SWB8451-3_ SWB8451-3) 2.5” SATA2 HDD 500GB (SWB8451-5_ SWB8451-5)
    Networking: Integrated 10/100/1000M Adaption
  • REMOTE CONTROL UNIT (RCN)
    Type: IR
    Range: Straigt-line distance: 8M

    Transmit angle ± 30° ³ 6M
  • INPUT / OUTPUT
    Connector: Display: HDMI x 2 RGB x 2 PC audio (mini stereo) x 2 S-Video x 1 CVBS IN x 1 CVBS OUT x 1 Shared RCA Audio x 1 YPbPr x1 USB A Type (for F/W) x 1 USB B Type (for touch) x 1 SPIDF x 1 RS232 x 1

    PC: AUDIO OUT x 1 MIC x 1 VGA OUT x 1 LAN IN x 1 USB x 4
  • VIDEO FORMAT
    Compatibility: RGB PC/HDMI PC: Refer to timing table

    CVBS: 480i

    S-Video: 480i, 576i

    YPbPr: 480i, 480p, 720p, up to 1080p

    HDMI: 480i, 720p, up to 1080p
  • STORAGE / SHIPPING CONDITION
    Temperature: -4°F to 140°F (-20°C to 60°C)
    Humidity: 10% ~ 90%, non-condensing
  • POWER SAVING FUNCTION
    On: Green indicator, < TBDW
    Power-saving Mode: Green indicator flashing, < 0.5 W
    Off (Suspend): Red indicator, < 0.5 W
  • DISPLAY PC/RGB MODES
    Supported: Refer to the compatibility table

    *If a mode isn’t specifically listed, full compatibility is not guaranteed. Results may vary between video cards / drivers.
