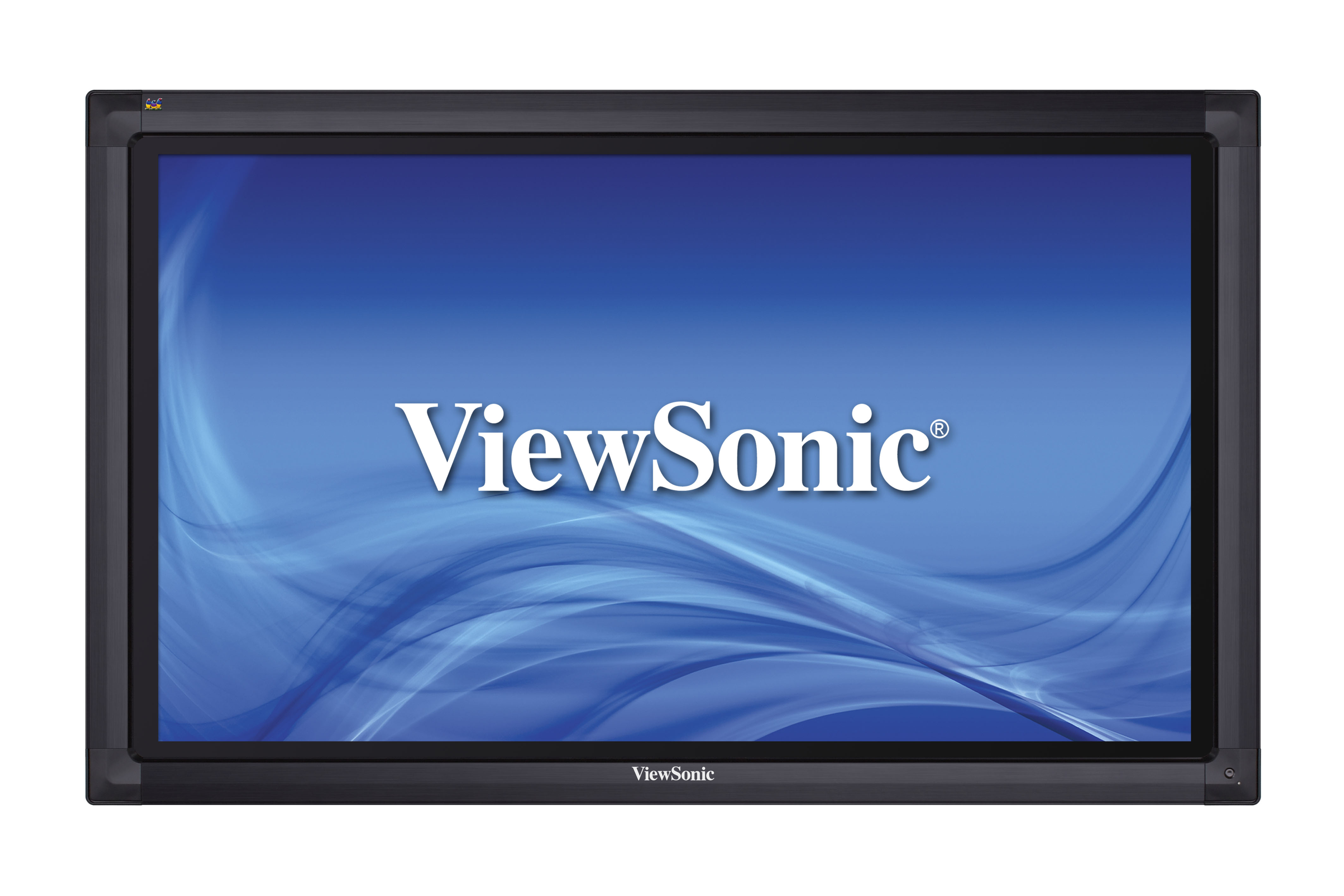

ViewBoard
SWB5501
Key Features
Product Description
The ViewSonic SWB5501 is an ideal large format interactive solution for classrooms and meeting rooms. The multiple touch allows two users to simultaneously write or draw on the board with their fingers or styli. A Full HD LED screen guarantees crisp and vivid content. Best of all, its built-in PC and complimentary ViewBoard software make it perfect for running a wide range of Microsoft Windows 8 apps. Create a more interactive learning and sharing environment with this ViewSonic 55" ViewBoard !
Visit Us
- www.viewsonic.com
-
LCD
Contrast Ratio: 4,000:1 Native Resolution: 1920 x 1080p Size: 54.6" Brightness: 400cd/m² Backlight: E-LED Display Orientation: Landscape Service Life: > 30,000 hours -
POWER
Rated Voltage: 100V-240V AC 50/60HZ Power On Mode: < 150W (typ) Power-Saving Mode (stand-by): < 0.5W (typ) Power Off Mode: < 0.5W (typ) -
MECHANICAL
Bezel Width (T/B/L/R): 55mm Net Dimensions (W x H x D): 1369 x 828 x 104 Gross Dimensions (W x H x D): 1480 x 987 x 307 Speaker Output: 15W x 2 Net/Gross Weight: 47 / 55 kg VESA Mount: 400 x 400 (M8) -
TOUCH
Touch Type: Infrared Tempered Glass: 7H, AG coding Touch Resolution: 4096 x 4096 Touch Connection: USB -
BUILT-IN PC
Processor: Intel iCore 35W Mobile (Sandy Bridge) Default: i3 2370M Graphics: Integrated Intel HD 3000 Sound Card: Integrated High-Definition Audio Stereo Memory: DDR III, default: 2GB Storage: 2.5" SATA HDD default: 320GB I/O: 6 x USB (4 external, 2 internal), 1 x Microphone in, 1 x earphone out, 1 x RJ45, 1 x VGA out Networking: Integrated 10/100/1000M Adaption WLAN: Optional (802.11b/g/n (2.4GHZ)) -
REMOTE CONTROL UNIT (RCN)
Video/Audio Input: HDMI x 2, VGA x 2, PC audio x 2, S-video x 1, YPbPr x 1, CVBS x 1 Video Output: CVBS Control: RS232 In Other: USB x 1, B type USB x 1 (for Touch), SPDIF Out x 1 OPS or PC slot: PC Slot -
ACCESSORIES
Moving display mounting cart with wall-mount bracket
