Zero Client
SD-Z246
Key Features
Product Description

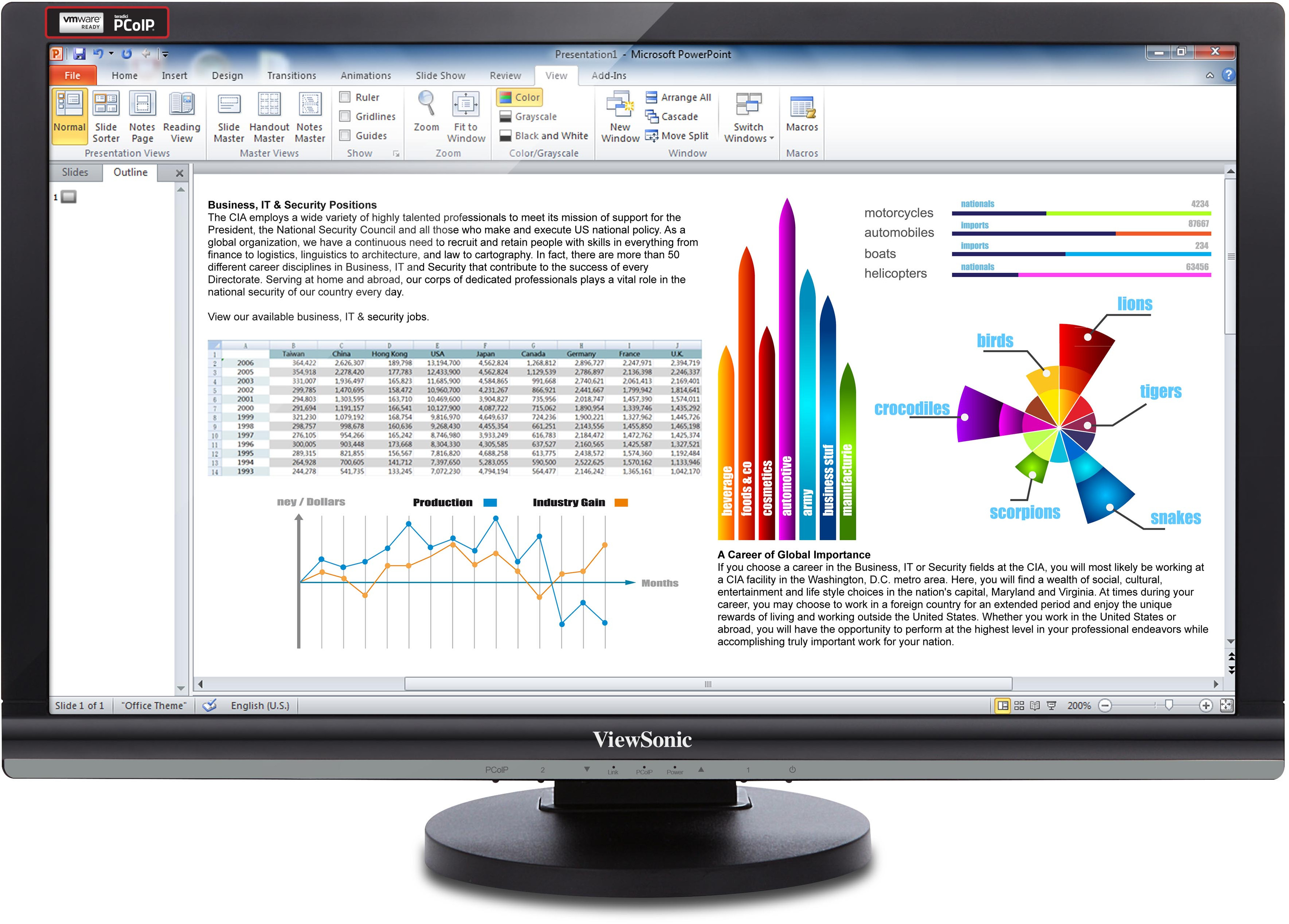

The SD-Z246 is a 23.6” integrated zero client IPS LED monitor. It is based on the Teradici Tera2321 processor, with hardware accelerated PCoIP support. The SD-Z246 zero client is the perfect solution for companies seeking a seamless desktop experience, with maximum security and reliability in VMware-based networks. Without any local memory or moving parts, the True zero client features deliver the ultimate in energy savings and reliability. In addition, the full ergonomic function, including 100mm height adjustment, pivot, swivel and tilt, combined with the VMware-certified design, guarantees high performance and compatibility in your network. Finally, the DVI output allows flexible support for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PC’s.
Visit Us
- www.viewsonic.com
-
SYSTEM
CPU Processor: Teradici Tera2321 Operating System: VMware PCoIP System Memory: DDR3 512MB (256MBx2) 1066MHz (533MHz*2) Storage Memory: None -
DISPLAY
Type: 23.6" Color active matrix TFT LCD Display Area: 23.6" Optimum Resolution: 1920 x 1080 Brightness: 250 cd/m2 (Typ) Contrast Ratio: 3,000 :1 (typ) Dynamic Contrast Ratio: 20,000,000:1 Viewing Angles: 178° / 178° Response Time: Tr+Tf: 10ms(typ) Backlight: WLED Backlight Life: 30000 Hrs (Min) Touch Panel: Anti-Glare type, Hard-coating (3H) -
INPUT/OUTPUT
USB: USB 2.0 x4 LAN/Ethernet: RJ45 x1 Audio: Line In x 1 Microphone in x1 Headphone out x1 Video: RGB input x1 DVI-I output x1 Power: DC in x1 Speakers: 2W x2 -
COMPATIBILITY
PC: VGA up to 1920 x 1080 Non Interlaced Mac®: Power Mac up to 1920 x 1080 -
POWER
Voltage: 100 to 240 VAC, 1.5A 50/60Hz Consumption: Power on: 46 W (typ) Optimize: 25 W (typ) Conserve: 20 W (typ) -
ERGONOMICS
Tilt: 25° ~ -5° Swivel: 340° Pivot: 90° Height Adjust: 0-100 mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°~95°F / 0°~35°C Humidity: 15 % ~ 90%, Non-Condensation -
DIMENSIONS
Physical (inch / mm): 22.3” x 15.07” x 8.04” 566.4 x 382.7 x 204.3 mm Packaging (inch / mm): 24.9” x 6.7” x 16.6” 632 x 170 x 421 mm -
WEIGHT
Net (lb / kg): 12.13 lbs / 5.5kg Gross (lb / kg): 16.14 lbs / 7.32kg -
WALL MOUNT
100 x 100mm: 100 x 100mm -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws -
WARRANTY
**Warranty offered may differ from market to market -
PACKAGE CONTENTS
Zero Client Display*1 Power cord*1 Quick Star Guide *1 CD Wizard*1 Compliance information*1 VGA cable*1
*Actual content may differ from market to market
