Key Features

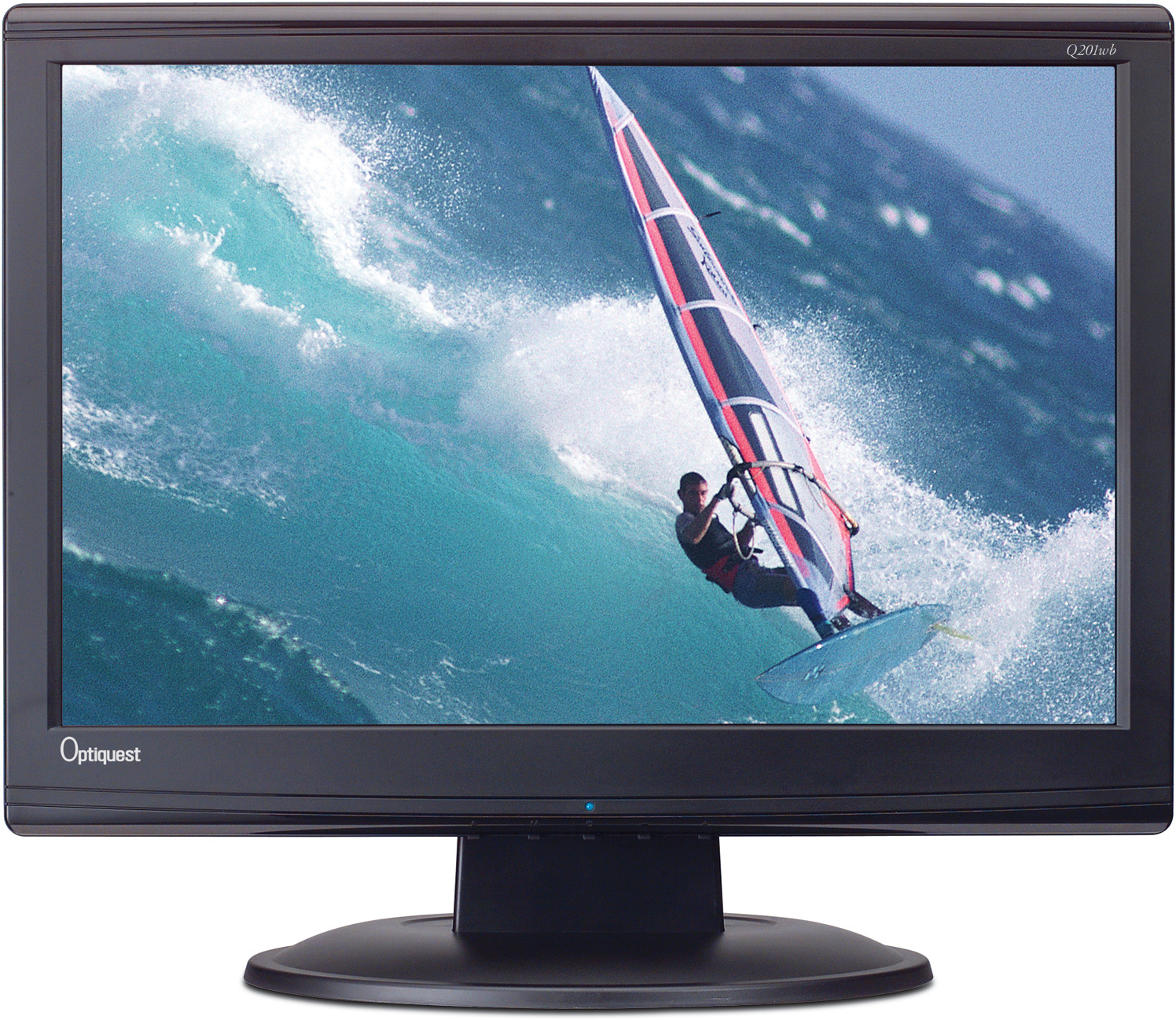

Q201wb
Product Description
The Optiquest® Q201wb 51 cm / 20" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with SUPER-FAST 5MS VIDEO RESPONSE for crystal-clear, blur free video, text and graphics. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen that lets you work in two applications or documents side-by-side, enhancing your productivity. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, budget-friendly, feature-rich Q201wb.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 50.80cm (20") color TFT active matrix WSXGA LCD
    Contrast Ratio: 1000:1 (typ)
    Viewing Angles: 170º horizontal, 160º vertical @ contrast ratio ≥10:1

    170° horizontal, 170° vertical @ contrast ratio ≥5:1
    Brightness: 300 cd/m2 (typ)
    Display Area: 434mm horizontal x 270mm vertical; 510mm diagonal / 17.1" (horizontal), 10.6" (vertical); 20.1" diagonal
    Optimum Resolution: 1680x1050
    Response Time: 5ms (typ)
    Light Source: Long life, 40,000 hrs. (typ)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.258mm(H) X 0.258mm(V)
  • COMPATIBILITY
    PC: VGA up to 1680x1050 non-interlaced
    Mac®: G3/G4/G5 up to 1680x1050
  • DIMENSIONS
    Physical With Stand: 486mm x 409mm x 204mm (19.1" x 16.1" x 8.0")
    Physical Without Stand: 486mm x 345mm x 79mm (19.1" x 13.6" x 3.1")
  • WARRANTY
    One-year limited warrranty on parts, labor and backlight
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
  • CONNECTOR
    Analogue: 15-pin mini D-sub
    Power: 3-pin AC plug (CEE22)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz (auto switch)
    Consumption: 45W (typ)
  • CONTROLS
    Basic: Power, 2, up, down, 1
    OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall
  • OPERATING CONDITIONS
    Temperature: 32-104ºF (0-40ºC)
    Humidity: 20-80% (non-condensing)
  • WEIGHT
    Net With Stand: 4.7 kg (10.3 lb).
  • VIDEO INPUT
    Frequency: Fh: 30-80kHz; 55-75Hz
    Sync: H/V Separate (TTL)
    Analogue: RGB analog (75 ohms, 0.7 Vp-p)
  • POWER MANAGEMENT
    ENERGY STAR standards
  • VESA MOUNT COMPLIANT
    Meet VESA ( 75mm X 75mm ) Standards
  • ERGONOMICS
    Tilt: -5°/+15°
