Projector
PA503SP
Key Features
- Dual HDMI inputs
- Built in USB type A for charging
- SuperColor™ technology
- 2W cube speaker
- Vertical keystone
Product Description

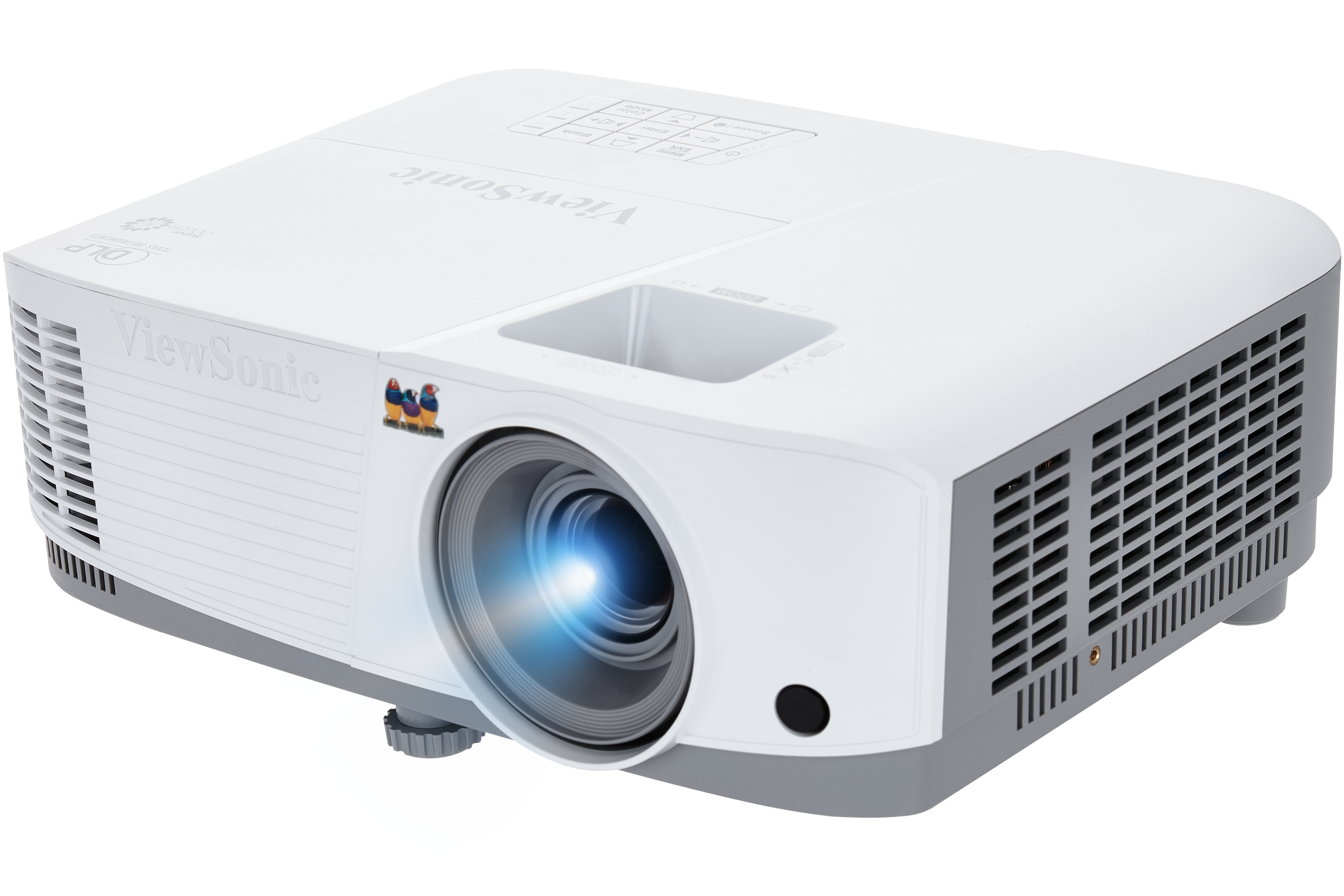

The ViewSonic PA503SP SVGA projector for presentations offers impressive multimedia performance from various devices in small to medium-sized meeting rooms and classrooms. Packed with 3,800 ANSI Lumens of high brightness and SuperColor™ Technology, the projector is guaranteed to project consistent and true-to-life images even in brightly lit environments. It integrates dual HDMI, VGA, Composite inputs and 2W speaker, fulfilling the needs to project multimedia contents such as online videos. In addition, with the USB Type-A with power supply, it is capable for wireless projection through HDMI wireless dongle for media streaming or mirroring contents from mobile devices. This projector also comes with an energy-efficient smart energy feature which reduces power consumption and extends the lamp life to 15,000 hours.
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Native Resolution: 800x600 Brightness: 3800 ANSI Lumens Contrast Ratio with SuperEco Mode: 22000:1 Display Color: 1.07 Billion Colors Light Source Type: Lamp Light Source Life (hours) with Normal Mode: 5000 Light Source Life (hours) with SuperEco Mode: 15000 Lamp Watt: 190W Lens: F=2.56-2.68, f=22-24.1mm Projection Offset: 120%+/-5% Throw Ratio: 1.96-2.15 Optical Zoom: 1.1x Digital Zoom: 0.8x-2.0x Image Size: 30"-300" Throw Distance: 1.19m-13.11m(100"@3.98m) Keystone: +/- 40° (V) Audible Noise (Normal): 31dB Audible Noise (Eco): 27dB Input Lag: 16ms Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility: NTSC, PAL, SECAM Horizontal Frequency: 15K-102KHz Vertical Scan Rate: 23-120Hz -
INPUT
Computer in (share with component): 2 Composite: 1 HDMI: 2 (HDMI 1.4/ HDCP 1.4) Audio-in (3.5mm): 1 -
OUTPUT
Monitor out: 1 Audio-out (3.5mm): 1 Speaker: 2W USB Type A (Power): 1 (5V/1A) -
CONTROL
RS232 (DB 9-pin male): 1 USB Type Mini B (Services): 1 -
OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz(AC in) Power Consumption: Normal: 260WStandby: <0.5W Operating Temperature: 0~40℃ Carton: Brown Net Weight: 2.2kg Gross Weight: 3.24Kg Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm Packing Dimensions: 365x300x188mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages -
STANDARD ACCESSORY
Power Cord: 1 VGA Cable: 1 Remote Control: 1 QSG: Yes Air Filter: Yes (CN Only) Warranty Card: Yes (CN Only) -
OPTIONAL ACCESSORY
Lamp/Light Source: RLC-108 Air Filter: RSPL Wall/Ceiling Mount: PJ-WMK-007 Carry Bag: PJ-CASE-008
