Key Features
  • 2nd generation laser phosphor technology with up to 30,000 hours lifespan
  • 5,000 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen with lower cost-per-inch
  • Installation flexibility: V lens shift, 1.6x optical zoom, H/V keystone
  • Versatile application: 360° projection, portrait mode
  • HDMI 2.0b for accessibility of 4K contents with HDR/HLG support

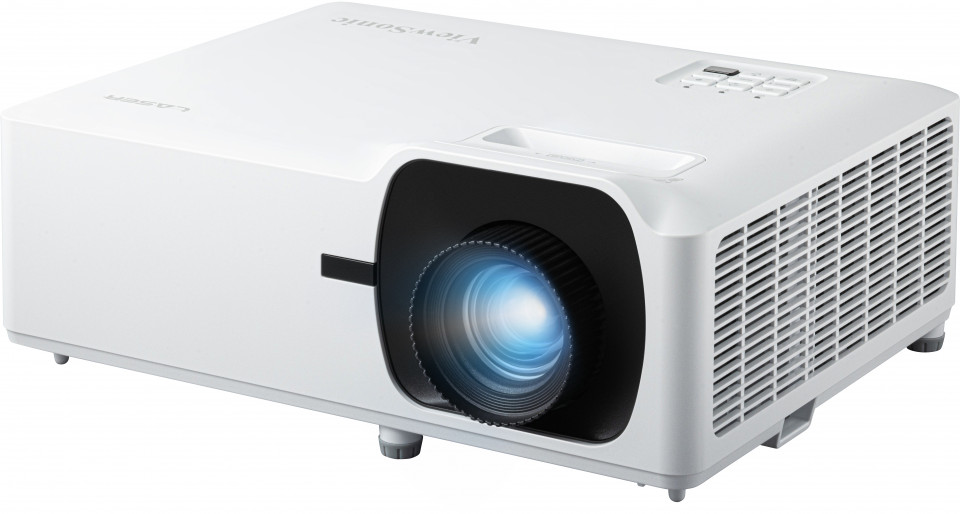

LS751HD
Product Description
The Luminous Superior series is ViewSonic’s lamp-free high brightness lineup for both commercial and educational spaces. The LS751HD adopts industry-leading 2nd generation laser phosphor technology and delivers 5,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering up to 300” large images with 1080p high resolution and vivid colors no matter if you're in a boardroom, lecture hall, or public space. The projector boasts high installation flexibility with vertical lens shift, 1.6x optical zoom, easy image adjustment with H/V keystone and 4 corner correction, and diverse applications with 360° projection and portrait mode. The LS751HD also comes with HDMI 2.0b, ensuring access to original 4K quality content with HDR/HLG supported.
  1. Front IR
  2. Lens
  3. HDMI 1.4/HDCP 1.4
  4. HDMI 2.0/HDCP 2.2
  5. USB-A (5V/1.5A, Service)
  6. Audio Out
  7. RJ45 (LAN Control)
  8. RS232
  9. Lens Shift Control Knob
  10. Zoom Ring
  11. Focus Ring
  12. LED Indicator
  13. Keypad
  14. IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1080
    Brightness (ANSI Lumens): 5000
    Brightness (Center Lumens): 5500
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.5-3.26, f=20.911-32.62mm
    Projection Offset: 136%+/-5%
    Throw Ratio: 1.4-2.24
    Optical Zoom: 1.6X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.93-14.88m
    (100"@3.10m)
    Keystone: H:+/-30° , V:+/-30°
    Lens Shift V. Range: +0%, -18%
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 29dB
    Input Lag: 49.9ms
    Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2
    HDMI 1.4/ HDCP 1.4)
  • OUTPUT
    Audio-out (3.5mm): 1
    Speaker: 15W x2
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 245W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 4.5kg
    Gross Weight: 6.6kg
    Dimensions (WxDxH) with Adjustment Foot: 337x265x131.5mm
    Packing Dimensions: 496x195x387mm
    OSD Language: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak,
    Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
