Key Features
  • Impressively large, bezel-free visual experiences
  • All-in-One design without complicated setup
  • Real-to-life colors and high brightness
  • Immersive audio from built-in Harman Kardon speakers
  • Adaptable and flexible to suit any display scenario
  • Effortless full-front maintenance

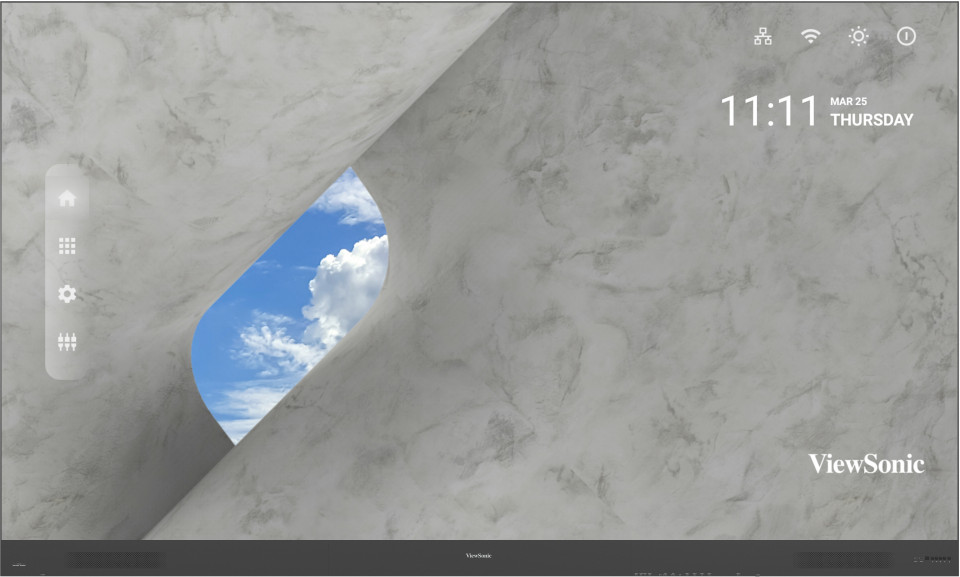

LDP163-181
Product Description
Gaze upon astoundingly lifelike imagery on the minimalistic 2nd Gen 163” ViewSonic® LDP163-181 All-in-One Direct View LED display. The All-in-One modular design offers an effortless installation and maintenance process. This next-generation display is upgraded with advanced features to deliver a spectacular audiovisual experience and user-forward design. Delivering 120% Rec. 709 wide color gamut, lightning-fast 4,440Hz refresh rate, and a peak brightness of 600 nits, every video, presentation, or lecture will be an immersion of real-to-life color and extraordinary detail. The display is also equipped with Harman Kardon speakers, 4K/HDR/HLG support, and Frame Interpolation technology for unsurpassable, immersive content delivery.At 25mm slim and lined with a 5mm frameless edge, the sleek display exudes sophistication and elegance in any modern setting. It offers flexibility and adaptability in design – with portrait and landscape installations to complement any space and scenario. The screens can be easily fused together to form an ultra-wide 32:9 video wall to deliver a seamless visual experience in epic proportions. The system control box can also be easily detached to blend into every design.
  1. Power Switch
  2. Harman Kardon Speakers
  3. HDMI Out
  4. Audio Out
  5. S/PDIF Out
  6. IR In
  7. USB 2.0 (5V/1.5A) x 2
  8. LAN & Control
  9. HDMI 2.0 x 2
  10. HDMI 1.4 x 2
  11. HDMI 2.1
  12. RS232
  13. USB-C (5V/2A)
  14. USB 2.0 (5V/1.5A)
  15. IR Receiver
  16. Menu Control: Brightness Level
  17. Menu Control: Volume
  18. Menu Control: Input Source
  19. Power Button
  20. Indicator Light
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Screen Size: 163''
    Display Area (mm): 3600 (H) x 2025(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Bonding Wire: Gold
    Pixel Pitch (mm): 1.88
    Refresh Rate: 4440Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape / Portrait
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 64GB
    (56GB available storage)
    Embedded OS: Android 9.0
    Resolution Support: VGA(640 x 480) to 1080p(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
    Horizontal Frequency: 23-120 kHz
    Vertical Scan Rate: 15-135 Hz
  • INPUT
    HDMI: x5
    (HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2)
    USB Type A: x3
    ( USB2.0 x3)
    RJ45 Input (Internet): x1
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: x1
    (Video input、 Power output (5V/2A))
    Audio-in (3.5mm): x1
    HDBaseT: x1
    (1080P@100m、4K30Hz@70m)
  • OUTPUT
    HDMI out: x2
    (HDMI 2.0 external x1,internal x1)
    Speaker: 20W x2 (harman kardon)
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input
    (5V/1.5A x3)
  • CONTROL
    RJ45 (LAN control): x1
    USB Type A (Services): x1(shared with USB A input)
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • OTHERS
    Power Supply Voltage: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
    (vary by country)
    Power Consumption: 1400W (typ), 2200W (max)
    < 0.5W (Sleep), < 0W (Off)
    Operating Temperature: 0~40℃
    LED Module Quantity: 144
    Ingress Protection Rating: IP30(Front)
    Net Weight: 375 lbs
    (170 kg)
    Gross Weight: 697 lbs
    (316kg)
    Screen Dimensions (WxHxD): 142.1x84.5x1 inches
    (3610x2145.3x25 mm)
    Screen Dimensions (WxHxD) with wall mount: 142.1x84.5x2.2 inches
    (3610x2145.3x57 mm)
    Packing Dimensions (WxHxD): 82.7x27.9x29.9 inches
    (2100x710x760 mm)
  • STANDARD ACCESSORIES
    Power Cord: x1
    HDMI Cable: x1(5m)
    LAN Cable (Cat 5A): x1(5m)
    IR Extender Cable: x1(3m)
    Remote Control: x1
    QSG: x1
    Wall Mount: x1
    Spare Parts: LED PCB Unit x7
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    Floor Stand: LD-STND-007
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
