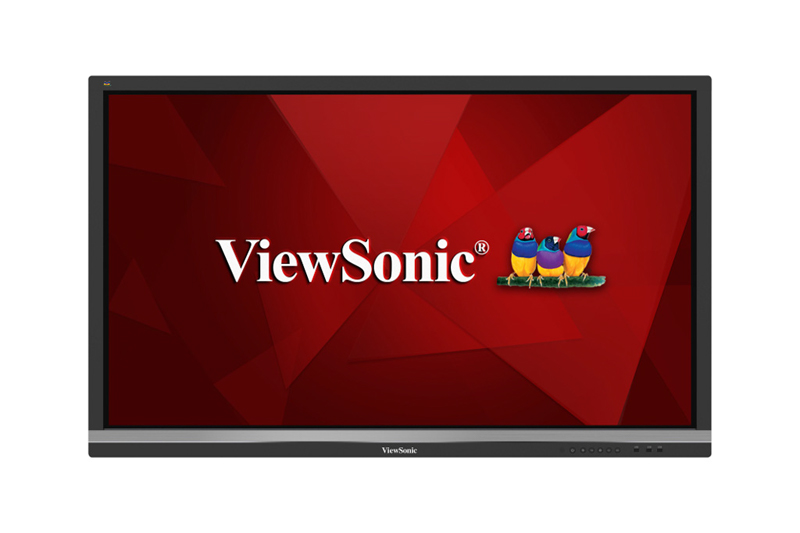

ViewBoard
IFP5550
Key Features
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
Product Description
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP5550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 55” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. IFP5550 display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP5550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 55" Type/ Tech: TFT LCD Module with DLED Backlight Display Area (mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal) Aspect Ratio: 16:09 Resolution: 3840 x 2160 Colors: 1.07B colors (10bit) Brightness: 350 nits (typ.) 300 nits (min.) Contrast Ratio: 1200:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: DLED Backlight Life: 30,000 Hours Min. Hardness: 7H Type/ Tech: IR Recognition -
TOUCH
Touch Resolution: 32767 x 32767 Touch Point: 20 points touch, 10 points writing Response Time: <15ms System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome Life Time: 80,000hrs -
INPUT
HDMI: 1.4a x 2 (3840 x 2160@30Hz)
2.0 x 1 (3840 x 2160@60Hz)RGB / VGA: x 1 DisplayPort: x 1 (3840 x 2160@60Hz) Audio: x 1 PC audio (3.5mm) CVBS (AV): x 1 RS232: x 1 PC Slot: x 1 (proprietary) -
OUTPUT
HDMI: x 1 (1080P@60Hz) Audio (Earphone out): x 1 SPDIF: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC) 3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC) 2.0 Type B (For touch): x 2 -
SPEAKERS
16W x 2 -
BUILT-IN PC
Processor: ARM Cortex A53 Quad Core 1.2G Hz CPU Graphic: ARM Mali-450 Quad Core Memory: 2GB DDR3 Storage: 16GB eMMC Networking: 10/100M auto-identification and DHCP -
COMPATIBILITY
VGA: Refer to timing table HDMI: 3840x2160 DP: 3840x2160 CVBS: 480i -
POWER
Voltage: 100-240VAC +/- 10% Wide Range Consumption: 129W(Typ, without Slot-In PC); 224W(Typ, Including Slot-In PC) -
WALL MOUNT
VESA®: 400 x 400mm; Screw: M8 x 25mm -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Humidity: 10% ~ 90% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 51.3x31.5x3.9 in/ 1302x799x98 mm Packaging (inch / mm): 58.3x8.66x37.8 in / 1480×220×960 mm -
WEIGHT
Net (kg / lb): 34kg / 74.96lbs Gross (kg / lb): 46kg / 101.41lbs -
WHAT'S IN THE BOX?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
