Key Features

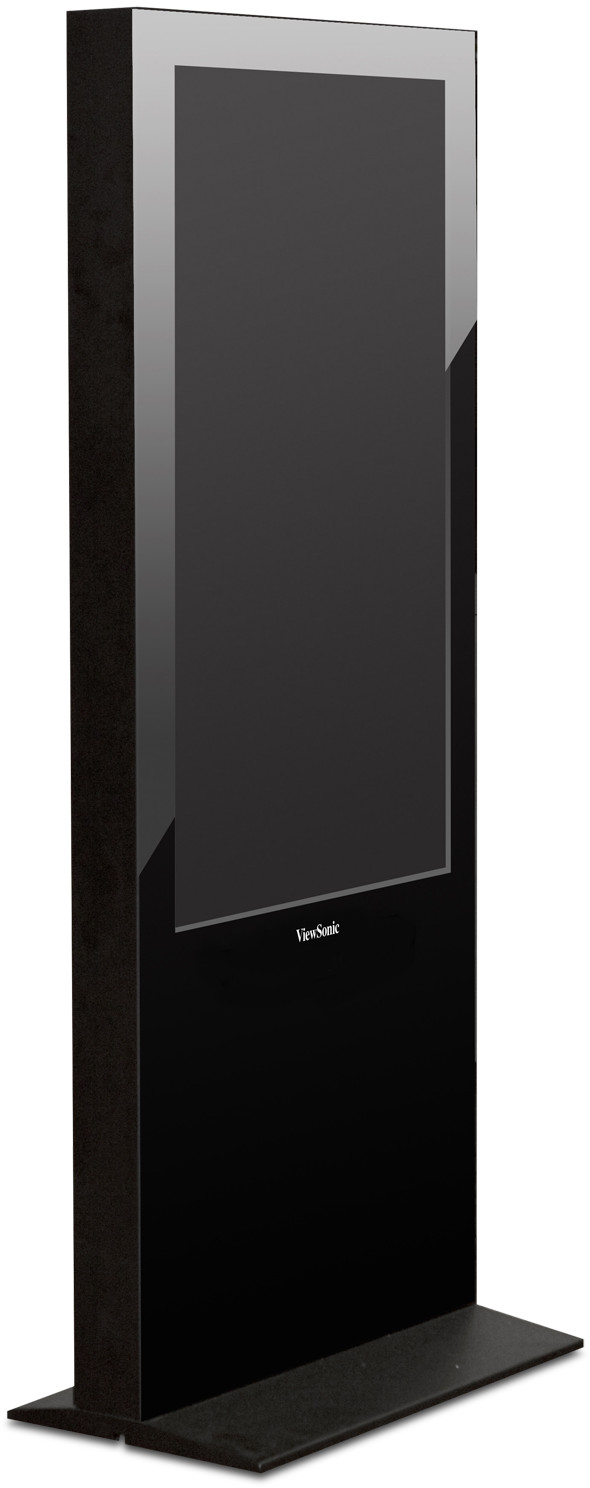

EP4602r
Product Description
ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful highdefinition digital posters. These sleek new displays feature built-in memory for storing high impact graphics as well as a powerful management tool featuring a content scheduler, duration timer and special effects editor for image transitions. Retail messaging is easy with ViewSonic’s new ePoster family of retail displays. Information is disseminated through the ePoster’s internal network connection or locally via the USB port. ViewSonic’s new ePoster products are available in various sizes and models and can be free standing or wall mounted. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    Card Reader: 2GB Compact Flash
    Photo Formats: JPEG baseline 5120x3840, progressive 2048x1536
    BMP
    Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit
    MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps
  • DIMENSIONS
    Physical (WxHxD): 27.8" x 67.0" x 17.1" (706mm x 1700mm x 450mm)
    Physical Without Stand: 31.6" x 75.2" x 5.0" (706mm x 1660mm x 128mm)
  • PACKAGE CONTENTS
    ePoster, power cord, remote control with batteries, key, Quick Start
    Guide, User Manual and Software on CD
  • AUDIO
    Speaker: 5W (x2)
  • CONNECTOR
    USB: 1.1 (x1)
    Ethernet: RJ45 (10/100M)
  • POWER
    Consumption: Max 240W
    Save Mode (W): Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • DISPLAY
    Contrast Ratio: 4000:1 (typ)
    Display size: 46" (116.8 cm)
    Resolution: 1920x1080
    Color Depth: Over 16.7M color (depending on video card used)
    Response Time: 8ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
    Brightness: 450 cd/m2 (typ)
  • VESA MOUNT COMPLIANT
    N/A - Freestanding
  • WEIGHT
    Gross: 286.60 lbs. (130 kg)
    Net: 264.55 lbs. (120 kg)
  • OPERATING CONDITIONS
    Humidity: 20–90% (non-condensing)
    Temperature: 32–104º F (0–40º C)
  • STORAGE ENVIRONMENT
    Humidity: 10–90% (non-condensing)
    Temperature: -4–140º F (-20–60º C)
  • CONTENT MANAGEMENT
    Operating System: MS Windows
    Software: ePoster Manager Express
