Key Features

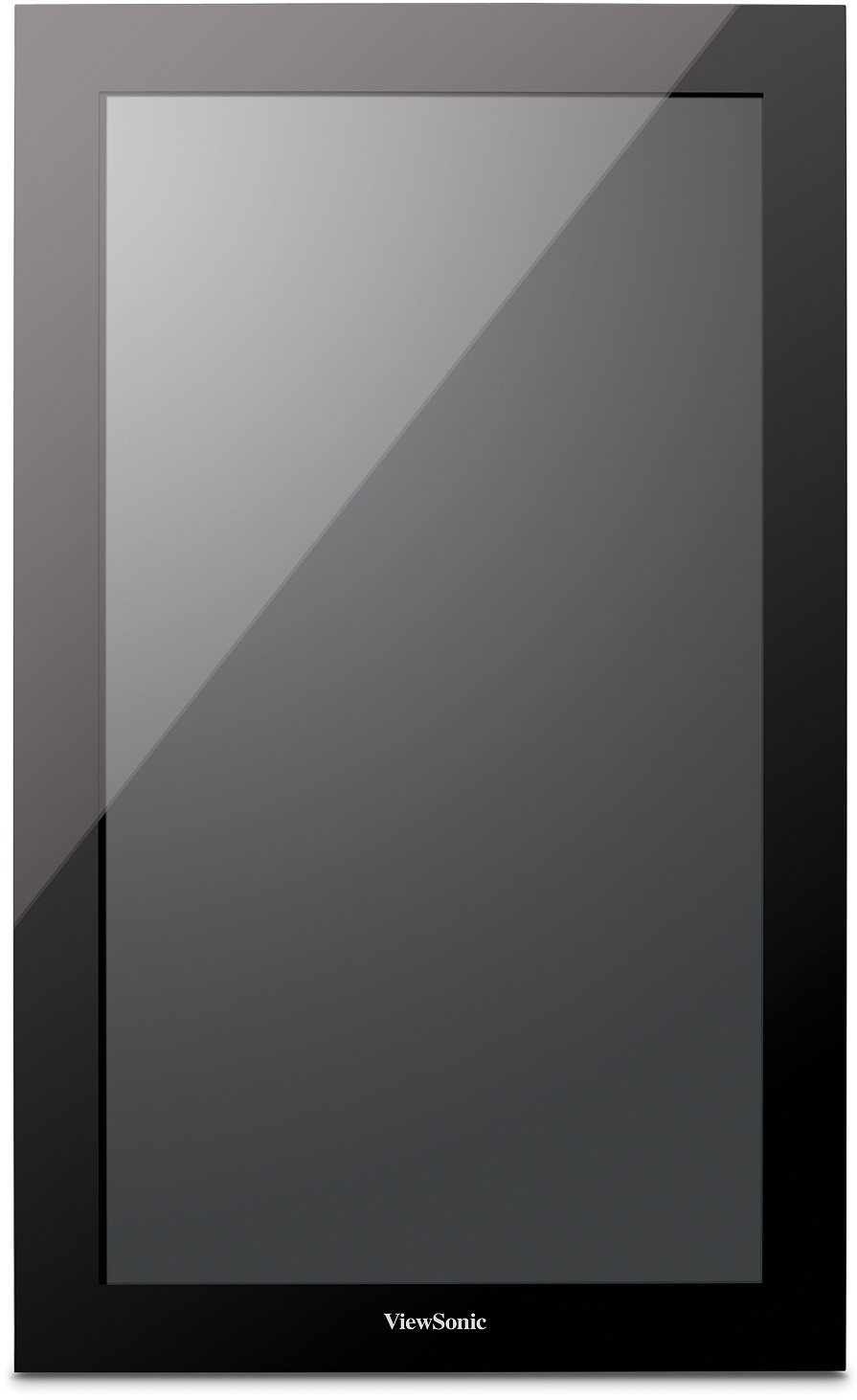

EP3202r
Product Description
ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful high-definition digital posters. These sleek new displays feature built-in memory for storing high impact graphics as well as a powerful management tool featuring a content scheduler, duration timer and special effects editor for image transitions. Retail messaging is easy with ViewSonic’s new ePoster family of retail displays. Information is disseminated through the ePoster’s internal network connection or locally via the USB port. ViewSonic’s new ePoster products are available in various sizes and models and can be free standing or wall mounted. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    Card Reader: 2GB Compact Flash
    Photo Formats: JPEG baseline 5120x3840, progressive 2048x1536
    Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit, MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps
  • DIMENSIONS
    Physical (WxHxD): 19.2" x 31.5" x 3.4" (490mm x 800mm x 87mm)
  • PACKAGE CONTENTS
    ePoster, power cord, remote control with batteries, key, wall mount
    bracket, Quick Start Guide, User Manual and Software on CD
  • AUDIO
    Speaker: 2W (x2)
  • CONNECTOR
    USB: 1.1 (x1)
    Ethernet: RJ45 (10/100M)
  • POWER
    Consumption: Max 145W
    Save Mode (W): Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • DISPLAY
    Contrast Ratio: 5000:1 (typ)
    Display size: 32" (81.3 cm)
    Resolution: 1366x768 dots
    Color Depth: Over 16.7M color (depending on video card used)
    Response Time: 8ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
    Brightness: 450 cd/m2 (typ)
  • VESA MOUNT COMPLIANT
    400mm x 200mm, 350mm x 330mm
  • WEIGHT
    Gross: 66.1 lbs. (30.0 kg)
    Net: 62.8 lbs. (28.5 kg)
  • OPERATING CONDITIONS
    Humidity: 20–90% (non-condensing)
    Temperature: 32–122º F (0–50º C)
  • STORAGE ENVIRONMENT
    Humidity: 10–90% (non-condensing)
    Temperature: -4–158º F (-20–70º C)
  • CONTENT MANAGEMENT
    Operating System: MS Windows
    Software: ePoster Manager Express
  • MTBF
    50,000 hrs.
