ePoster
EP2203r
Key Features
Product Description

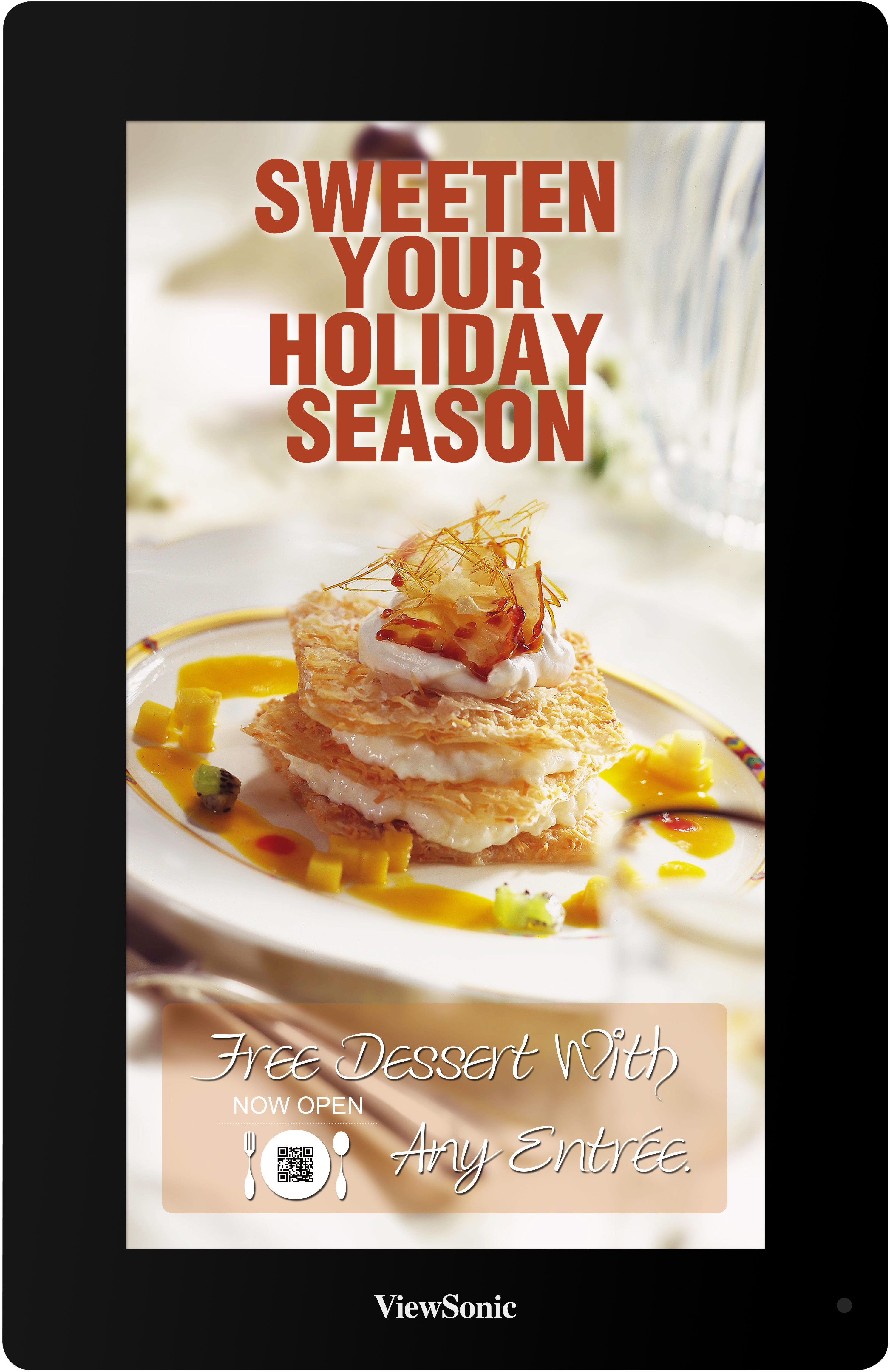

ViewSonic’s EP2203r is a 22” Full HD 1080p LED ePoster that delivers brilliant and crystal clear image quality from a sleek and slim profile. The premium design and slim profile allows it to be the perfect wall mount for informational and promotional applications in any setting, while the USB ports offer quick access to a wide range of formats for convenient content management.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 21.5" color TFT active matrix, wide LCD Contrast Ratio: 3,000:1 Viewing Angles: 85° (H) / 80° (V) Brightness: Internal: 250 nits / External: 220 nits Display Area: 476.64 (H) x 268.11 (V) Optimum Resolution: 1920 x 1080 Response Time: 25 ms Aspect Ratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical (mm): 585.6 x 378.6 x 33.7 Physical (in): 23.06” x 14.91” x 1.33” -
PACKAGE CONTENTS
Power Cable *1, Remote Control *1, Quick Start Guide *1, User Manual CD Wizard *1 -
CONNECTOR
LAN: RJ45 *1 Power: 2 pin plug Video In: VGA (D-Sub) *1
HDMI (1.3) *1USB: 2.0 *2 -
POWER
Voltage: AC 100 - 240V (Universal) , 50 - 60Hz -
CONTROLS
Set Up: Language, Clock Display, Scrolling Text, USB Port,
Return To Factory Settings. -
WEIGHT
Gross: 22.05 lb. (10 Kg) Net: 17.64 lb. (8 Kg) -
OPERATING CONDITIONS
Humidity: 20% ~ 90% (non-condensation) Temperature: 32°F~122°F (0 ~ 50°C) -
INPUT
Supported Image H.264 TBD
Decoding Format
MPEG 1 TBD
MPEG 2 TBD
MPEG 4 - XVID TBD
JPEG TBD -
AUDIO OUT
Speakers: 2W x2 -
CONTROLS
System Settings: Language, Clock Display, Scrolling Text, USB Port,Return To Factory Settings.
Playback Control: Storage Priority, Playback Mode, Play Time.
Date & Time: Year, Month, Day, Hour, Minute, Update Date & Time
On / Off Timer: Timer Mode, Daily, Sunday~Saturday
Local ID: ID, Save
Screen Mode: Vertical, Horizontal, Save and Reboot
File Management: Information, Format
Source: HDMI, VGA, Digital Signage
System Setting: OSD Language, Reset
Image: Brightness, Contrast, Saturation, Color Temp
PC Setting: Auto Adjust, H Position, V Position, Phase, Clock
