Key Features

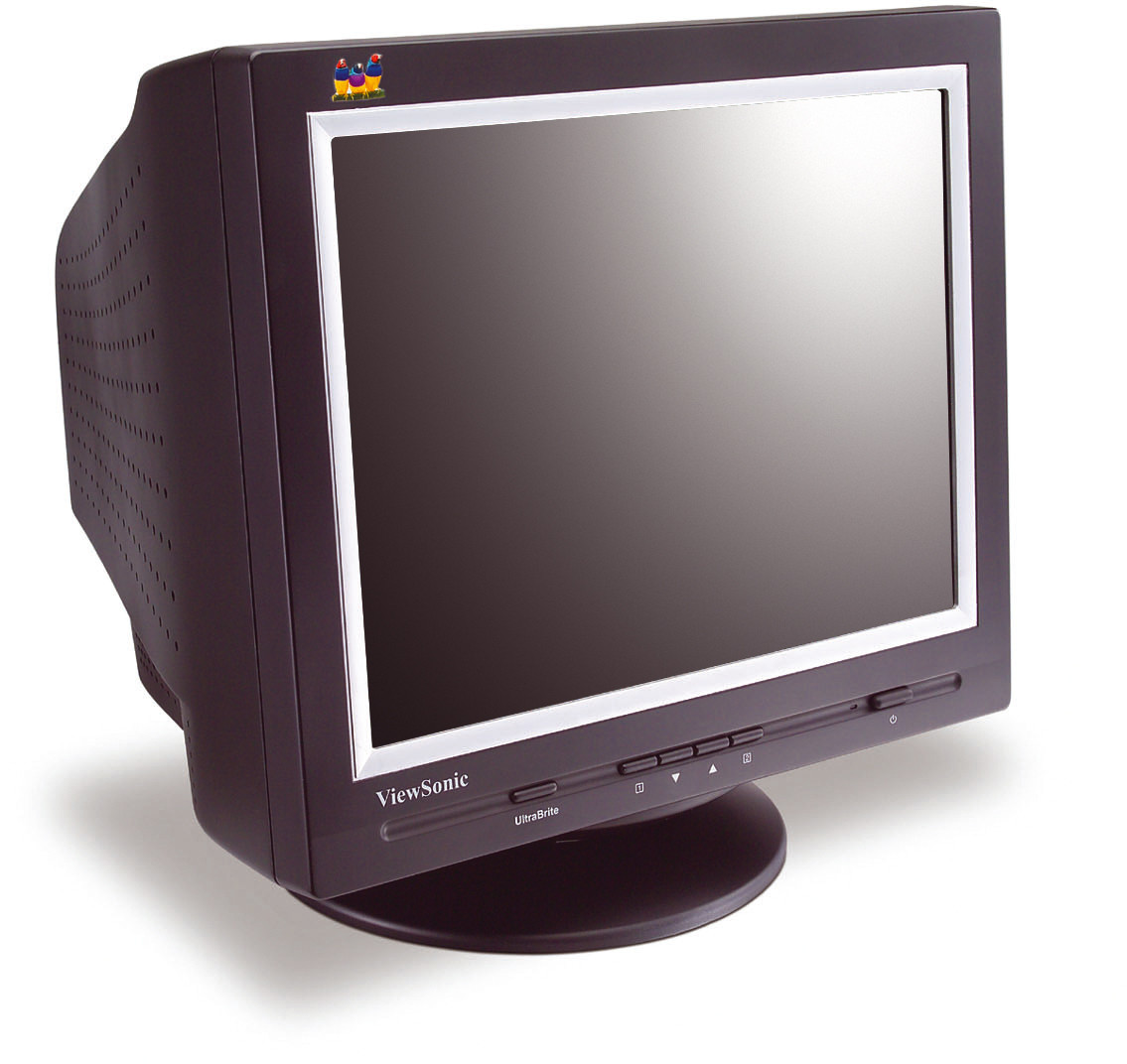

E96fSB
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    PC: PC and compatible (from VGA up to 1792 x 1344)
    Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864)
  • DIMENSIONS
    Physical (WxHxD): 445mm (W) x 424mm (H) x 465mm (D)
  • INPUT SIGNAL
    Frequency: Fh: 30 – 86kHz
    Fv: 50 – 160Hz
    Video: RGB analogue (0.7 Vp-p, 75 ohms)
    Sync: H/V separated (TTL)
  • CONNECTOR
    Power: 3-pin plug (IEC320)
    Signal: 15-pin mini D-sub
  • POWER
    Voltage: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)
    Consumption: 55 watts (typ.)
  • CONTROLS
    Basic: Power on/off, menu, up, down, select, UltraBrite
    OSD: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction,
    degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall
  • OPERATING CONDITIONS
    Temperature: 32-104ºF (0-40ºC)
    Humidity: 5% to 95% (no condensation)
  • WEIGHT
    Net: 18.0kg
  • VIDEO INPUT
    Bandwidth: 210MHz (typ.)
  • POWER MANAGEMENT
    Meets MPR II
  • CRT
    Type: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat
    Dot Pitch: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
    Phosphor: RGB P22 (Cd free)
    Glass Surface: Tint: (TM ~ 53.6%), anti-reflection, anti-static
  • PLUG & PLAY
    DDC1, DDC2B
  • MISCONVERGENCE
    0.25mm (max.) at centre
    0.35mm (max.) at corner
  • PROGRAMMABLE MODES
    Factory: 10
    User: 12
  • DISPLAY AREA
    Factory Setting: 352mm (H) x 264mm (V) (typ.)
    Maximum Scan: 360mm (H) x 270mm (V) (depending on signal timing used)
