Commercial Display
CDP4737-L
Key Features
Product Description

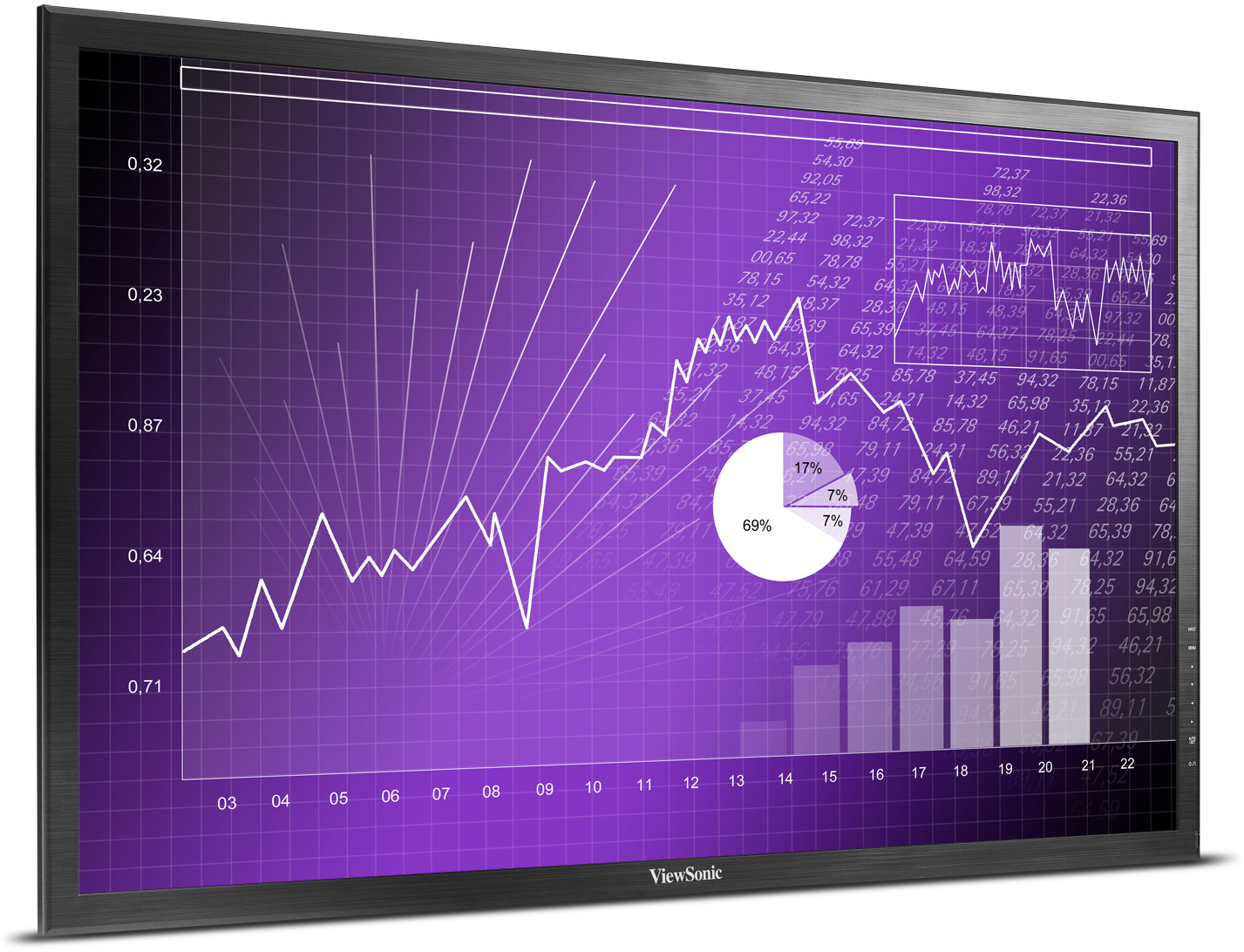

The ViewSonic® CDP4737-L commercial display features Full HD 1920 x 1080p IPS panel technology, fast 120Hz response time and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 28mm bezel width makes the CDP4737-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5 x 5 tiling for video walls and VGA and DVI loop through support.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 47" colour TFT active matrix, wide LED Contrast Ratio: 1300:1 (typ) Viewing Angles: 178º horizontal, 178º vertical Brightness: 450 cd/m2 (typ) Display Area: 40.9" horizontal x 23" vertical; 47" diagonal Optimum Resolution: 1920 x 1080, .630mm dot pitch Response Time: 12ms Light Source: Long Life, 50,000hrs. (typ) Aspect Ratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) Dynamic Contrast Ratio: 50,000:1 -
DIMENSIONS
Physical (WxHxD): 43.5" x 25.5" x 1.5" (1105mm x 646.4mm x 37.4mm) -
PACKAGE CONTENTS
CDP5537-L display, power cable, remote control with batteries, User Guide CD -
AUDIO
Amplifier: 10-watt / 8 ohm x 2 -
INPUT
Video Input: HDMI, DVI, component, VGA, DP (Display Port) Video Output: VGA, component, DVI (Loop through) Control Input/Output: RS-232 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI, DP, RGB, A/V, Component Power: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
POWER
Voltage: AC 100–240V (universal), 50–60Hz Consumption: 140W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness Front Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset Audio: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Input: VGA, DVI, HDMI, YPbPr, DP OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. Position -
OPTIONAL ACCESSORIES AVAILABLE
Stand....................................................STND-019
Wall Mount.............................................WMK-013 -
VESA MOUNT COMPLIANT
VESA 400mm x 400mm -
WEIGHT
Gross: 41.7 lb. (18.9 kg) Net: 38.6 lb. (17.5 kg) -
OPERATING CONDITIONS
Humidity: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state, or federal laws.
