Commercial Display
CDE8600
Key Features
- ViewBoard® Cast content sharing software
- USB multimedia player
- Dual Computing expansion PC slot for Intel OPS
- Supports HDMI CEC pass-through
- Flicker-free and Blue Light Filter eye-care technologies
Product Description

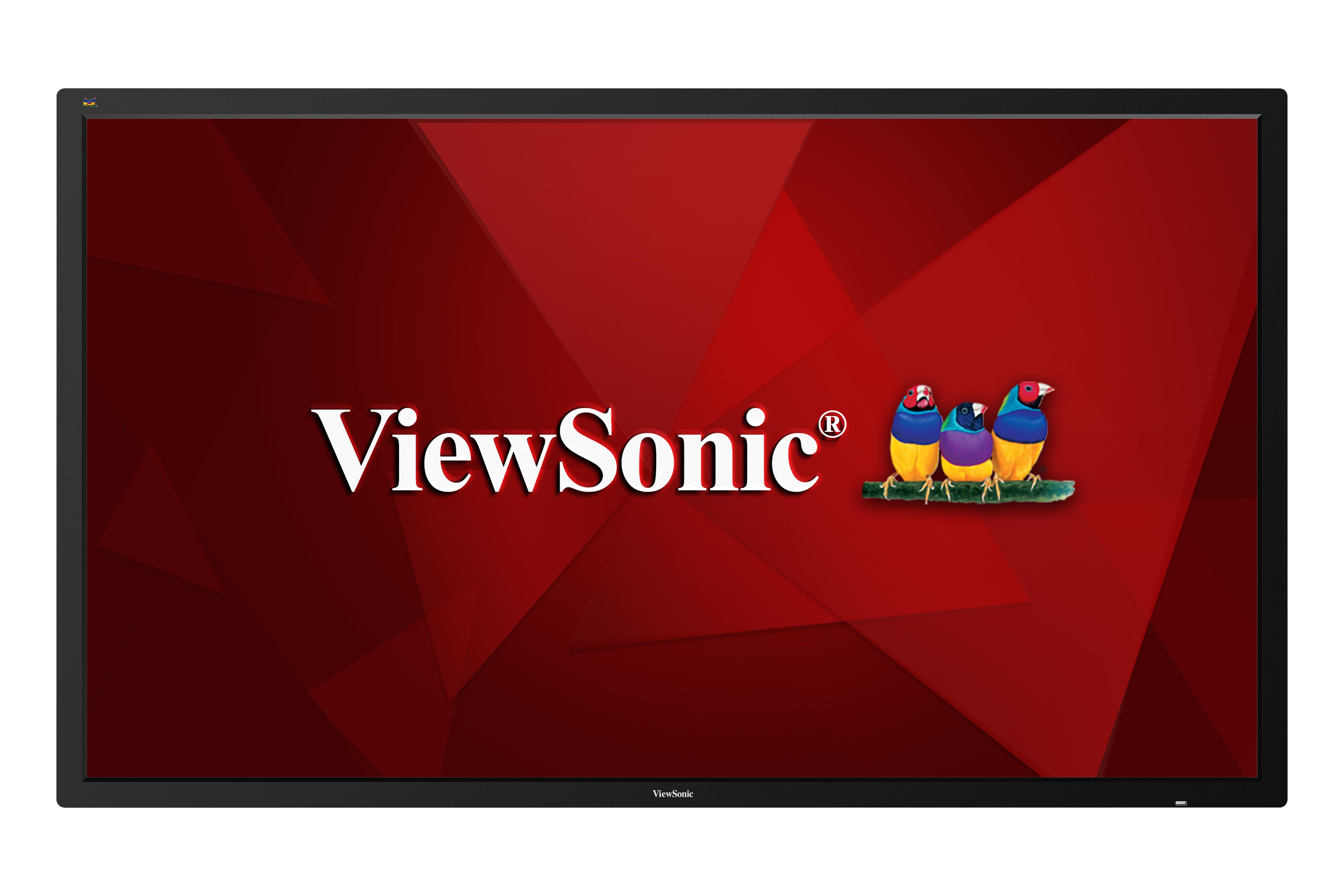

The ViewSonic® CDE8600 is an 86" 4K Ultra HD display with conferencing capabilities. With features including a razor sharp resolution of 3840 x 2160, ultra wide viewing angles, 2 x 20W speakers, and file sharing software, the display has been designed with the meeting room scenario in mind. The pre-installed ViewBoard® Cast on-site content sharing software enables multiple users to participate in conferences and share content with each other simultaneously, transforming CDE8600 into a dynamic content hub. This display’s integrated dual-core processor and 16GB internal memory allows users to play multimedia content from a USB without the need for a PC, while the HDMI and VGA inputs offer connection with a variety of high definition devices. For a more powerful computing OS platform, CDE8600 offers the dual PC slots for expansion. Flicker-free and Blue Light Filter eye-care technologies provide viewing that is comfortable for the human eye, from start to finish.
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 86" Type/ Tech: TFT LCD Module with LED Backlight Display Area (mm): 1895.04 (H) x 1065.96 (V) Aspect Ratio: 16:09 Resolution: 3840 x 2160 Colors: 1.07B colors (10bit) Brightness: 400 nits(typ.) Contrast Ratio: 1200:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight: DLED Backlight Life: 30,000 Hours Min. Hardness: 7H -
INPUT
HDMI: x 4 RGB / VGA: x 1 Audio: x 1 CVBS (AV): x 1 YPbPr: x 1 RS232: x 1 PC Slot: x 1 PC Slot (Intel OPS Standard)
x1 SDM -
OUTPUT
HDMI: x 1 (for one of HDMI1/2/3) Audio (Earphone out): x 1 SPDIF: x 1 RS232: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 1 3.0 Type A: x 2 -
SPEAKERS
20W x 2 -
BUILT-IN PC
Processor: ARM Cortex A53 Dual Core 1.5G Hz CPU Memory: 2GB DDR3 Storage: 16GB eMMC -
COMPATIBILITY
VGA: Refer to timing table HDMI: 480i, 480p,720p, 1080p, up to 2160p CVBS: 480i -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Consumption: 540 W (Max.) -
ERGONOMICS
Wall Mount (VESA® ): 700 x 400mm / Screw: M8 x 20 mm -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Humidity: 10% ~ 90% non-condensing -
DIMENSIONS
Physical w/o Stand (mm / inch): 1962 x 102.6 x 1133 mm / 77.24 x 4.04 x 44.61 inch Packaging (mm / inch): 2125 x 275 x 1275 mm / 83.66 x 10.83 x 50.2 in Pallet Size (mm / inch): 2150 x 1140 x 114 mm / 84.64 x 44.88 x 4.49 in -
WEIGHT
Net w/o Stand (kg / lb): 55.6 kg / 122.58 lbs Gross (kg / lb): 77.1 kg / 169.98lbs -
WHAT'S IN THE BOX?
1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)
2. Remote control with batteries
3. 3M HDMI cable
4. QSG
