Key Features

CDE7051-TL
Product Description

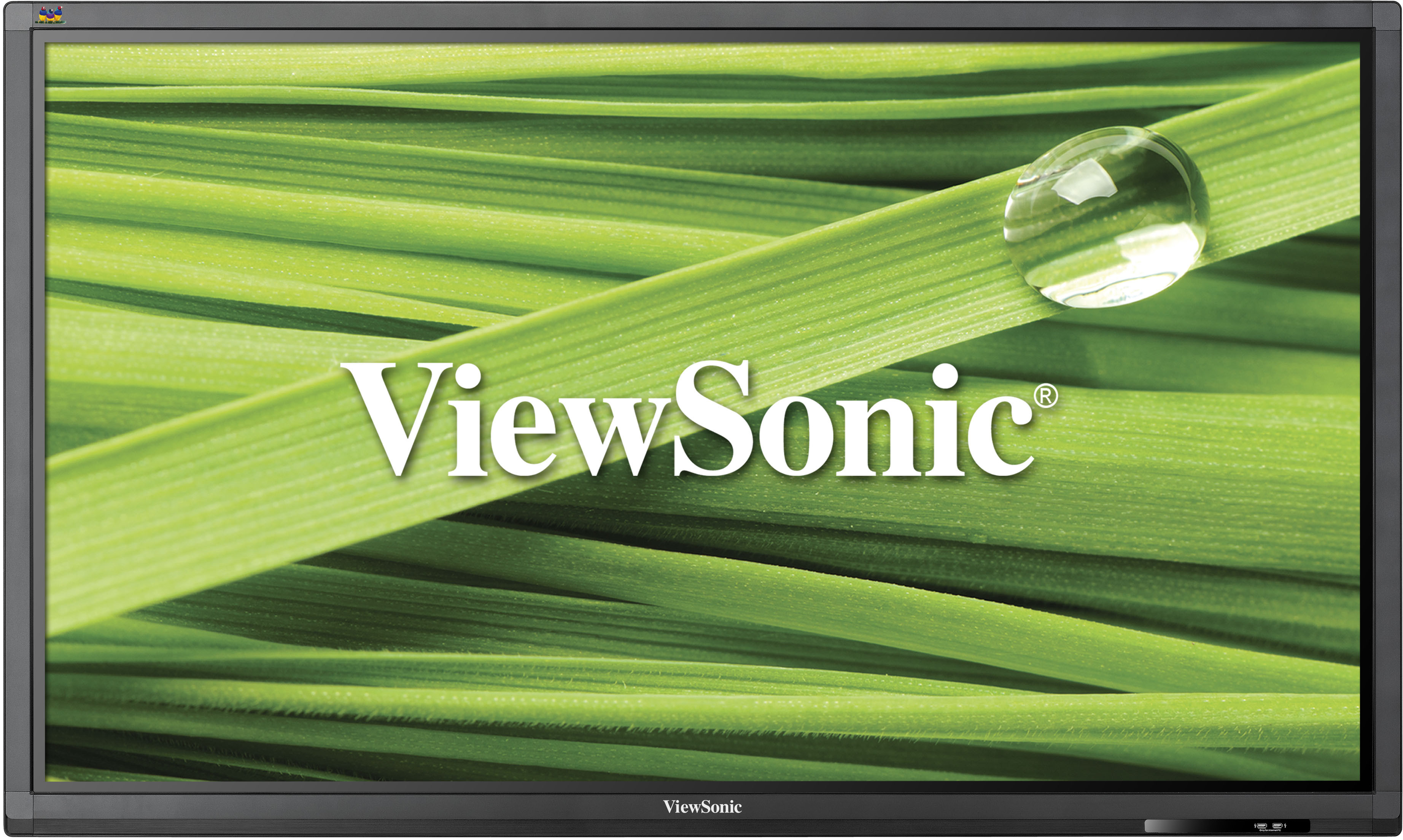

The ViewSonic 69.5’’ CDE7051-TL is the ideal interactive display solution for in-classroom teaching, online training sessions, video conferencing and more. The 6-point touch-enabled display allows two users to simultaneously write or draw on the board using their fingers or stylus. A Full HD LED screen guarantees crisp and vivid image quality, and with 350-nit brightness the CDE7051-TL provides better visual performance in well-lit rooms. Visually attractive, the CDE7051-TL has an ergonomic design with a tempered glass overlay, anti-glare treatment and rounded corners.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: TFT LCD Module with LED Backlight
    Contrast Ratio: 4000:1 Typ.
    Viewing Angles: 176º Horizontal, 176º Vertical
    Display Area: 1538.88 (H) x 865.62 (V) (69.5” diagonal)
    Optimum Resolution: 1920 x 1080
    Response Time: 6ms
    Aspect Ratio: 16:9
    Size: 69.5”
    Backlight: LED
    Backlight Life: 50,000 Hours Typ.
  • COMPATIBILITY
    Video: S-Video 480i, 576i
    HDMI: 480i, 480p, 720p, up to 1080p
    YPbPr: 480i, 480p, 720p, up to 1080p
    RGB PC / HDMI PC: Refer to timing table
  • CONNECTOR
    HDMI (input): x2
    RGB: x2
    Mic In/Out: x1
    PC Audio Input: x2
    CVBS: x1
  • DIMENSIONS
    Physical (WxHxD): 64.9 x 39.3 x 3.8 (inches) / 1649 x 999 x 97 (mm)
    Packaging: 70.3 x 44.9 x 10.8 (inches) / 1785x1140x275 (mm)
  • PACKAGE CONTENTS
    VGA Cable x1

    Power Cable x4

    Remote Control x1

    USB Cable x1

    Audio Cable x1

    Stylus x3

    User Manual CD Wizard x1
  • WARRANTY
    **Warranty offered may differ from market to market
  • AUDIO
    RCA: x1
    Speakers: 15W x2
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
  • CONTROLS
    Picture: Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp., Noise Reduction
    Set Up: OSD Language, TT Language, Hearing Impaired, PVR File System, Record List, Aspect Ratio, Blue Screen, Fist Time Installation, Reset, Software Update(USB)
    Front Panel: POWER, INPUT, PC/VGA, VOL+, VOL-, ZOOM, ENERGY SAVING
    Configuration 1: Time: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer
    Configuration 2: Lock: Lock System, Set Password, Block Program, Parental Guidance, Key Lock
    Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF MODE, AD Switch
    RS232: x1
  • VESA® MOUNT
    600 x 600
  • ERGONOMICS
    Tilt: None
  • WEIGHT
    Gross: 187.4 (lb) / 85 (kg)
    Net: 165.3 (lb) / 75 (kg)
  • OPERATING CONDITIONS
    Humidity: 20% ~ 80% non-condensing
    Temperature: 32°F to 104°F (0°C to 40°C)
  • VIDEO I/O
    YPbPr in: x1
  • AUDIO I/O
    SPDIF out: x1
  • INPUT
    USB Type A: x1
    USB Type B (mouse control): x2
