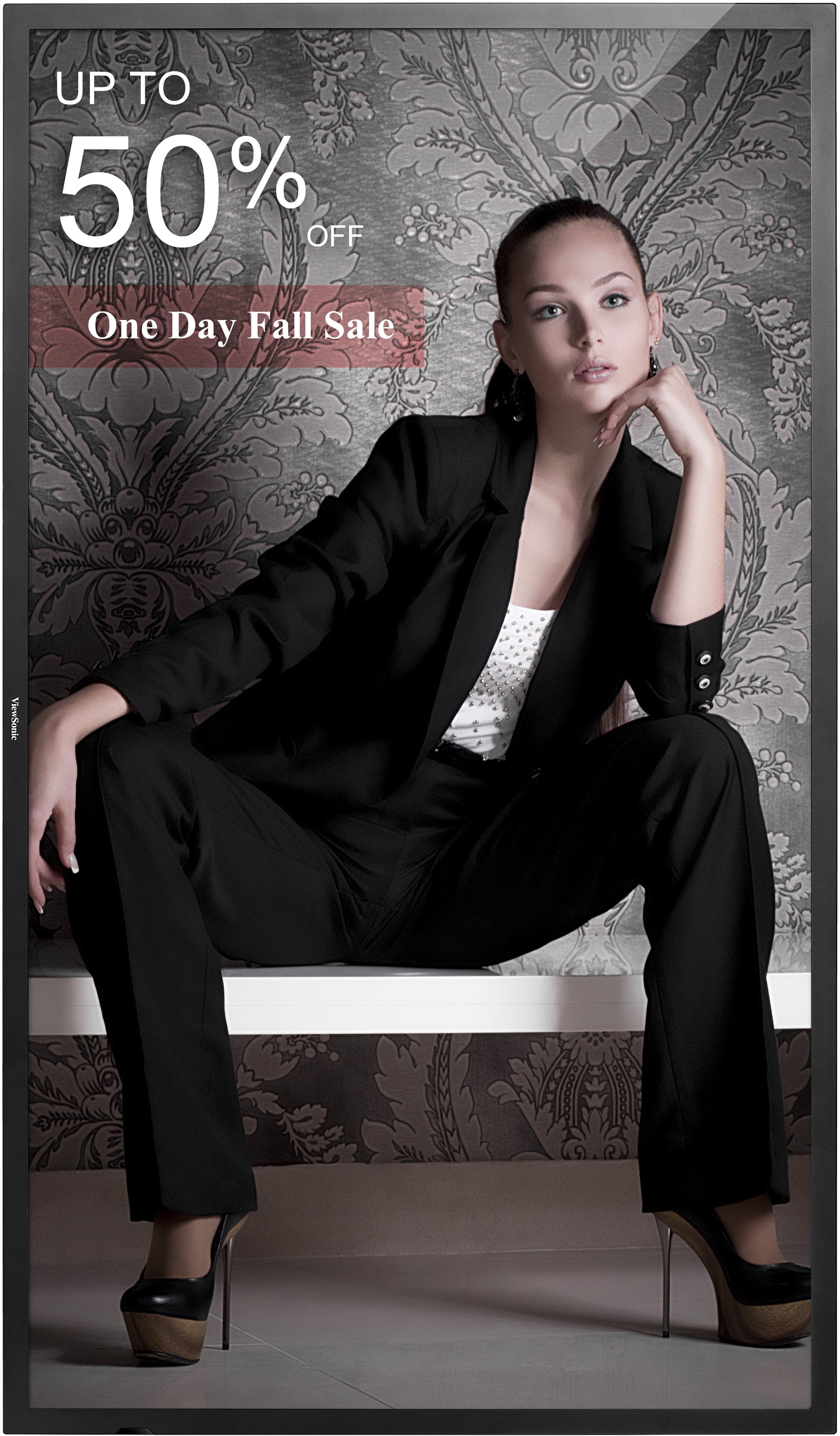

ViewSonic CDE5500-L 55” Narrow Bezel Commercial LED Display

Key Features

Product Description

The ViewSonic CDE5500-L is a 55’’ (55’’ viewable) commercial LED display with a 24mm narrow-bezel design that delivers more impactful visual messaging for corporate, retail, hospitality, and other indoor environments. An integrated media player supports USB-drive playback of videos, photos, and music, as well as content scheduling. In addition, it provides LAN content loading from PCs or mobile devices via network connection, offering an efficient and fast way to display content. Featuring Full HD 1080p resolution, 350-nit high brightness, 1400:1 high contrast ratio, SuperClear® technology for improved wide-angle viewing, and dual 7W stereo speakers, the CDE5500-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Integrated RS232 with IR pass-through and a one-time setting function make the CDE5500-L an easy-to-manage solution for multiple-display configurations.

Visit Us

www.viewsonic.com

LCD

Type:	TFT LED Module with LED Backlight
Contrast Ratio:	1400:1 Typ.
Viewing Angles:	178° horizontal, 178° vertical SuperClear®
Display Area:	1209.6(H) x 680.4 (V) (55” diagonal)
Optimum Resolution:	1920x1080
Response Time:	6ms
Aspect Ratio:	16:9
Panel Surface:	Hardness 3H
Colour Support:	16.7M colours
Size:	55” (55” viewable)
Brightness:	350 cd/m2
Backlight:	LED
Backlight Life:	30,000 Hours Typ

COMPATIBILITY

Component: 480i, 480p,720p,1080i,1080p

HDMI: 480i, 480p,720p,1080i,1080p

DVI-D: 480i, 480p,720p,1080i,1080p

RGB PC / HDMI PC: Refer to timing table

CONNECTOR

HDMI (input):	x 1
RS-232:	x 1
Audio (input/output):	x 1 (RCA L/R) / x 1 (RCA L/R)
USB:	x 1
PC-VGA:	x 1
Component-In:	x 1
DVI:	DVI-D x 1
LAN:	x 1 (RJ45)
PC Audio Input:	x 1 (3.5mm jack)
IR Pass Through:	x 1
CVBS:	(Share with component Y) x 1

DIMENSIONS

Physical Without Stand: 49.8 x 29 x 1.7 / 1264.7 x 735.5 x 42.8 (inch/mm)

Packaging: 54.1 x 34.3 x 5.9 / 1374 x 870 x 150 (inch/mm)
PACKAGE CONTENTS

1.CDE5500-L LCD Monitor

2.Remote Control with batteries

3.User manual CD wizard

4.Quick Start Guide

5.Power Cables

6.VGA cable

7.RS232 cable

*Actual content may differ from market to market
POWER

Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

Consumption: 109 W (typ), 128 W (max)

CONTROLS

Picture:	POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU. Picture style, Restore style, Backlight, Contrast, Brightness, Colour, Sharpness, Advanced, Game or Computer, Format and edges
Configuration 1:	Menu language, Monitor id, Eco mode, Auto search, Clock, USB scheduling, Sleep timer, Auto switch off, Control settings, Factory settings
Configuration 2:	View network settings, Network configuration, Static IP configuration, Digital Media Render, Network name
Sound:	Sound style, Restore style, Bass, Treble, Audio out, Advanced

VESA® MOUNT

400 x 400mm
WEIGHT

Gross: 56.4 / 25.6 (lb / kg)

Net Without Stand: 46.7 / 21.2 (lb / kg)
OPERATING CONDITIONS

Humidity: 20% ~ 80% @40°C non-condensing

Temperature: 0°C to 40°C
WARRANTY

3-year limited

**Warranty offered may differ from market to market
AUDIO I/O

SPDIF out: x 1(optical)

Speakers: 7W x 2

Component:	480i, 480p,720p,1080i,1080p
HDMI:	480i, 480p,720p,1080i,1080p
DVI-D:	480i, 480p,720p,1080i,1080p
RGB PC / HDMI PC:	Refer to timing table

Physical Without Stand:	49.8 x 29 x 1.7 / 1264.7 x 735.5 x 42.8 (inch/mm)
Packaging:	54.1 x 34.3 x 5.9 / 1374 x 870 x 150 (inch/mm)

Voltage:	100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption:	109 W (typ), 128 W (max)

Gross:	56.4 / 25.6 (lb / kg)
Net Without Stand:	46.7 / 21.2 (lb / kg)

Humidity:	20% ~ 80% @40°C non-condensing
Temperature:	0°C to 40°C

SPDIF out:	x 1(optical)
Speakers:	7W x 2
